DE 375 (25A-592A100) - Cub Cadet Edger Engine (2001) Starter Parts Diagram

Edger Engine

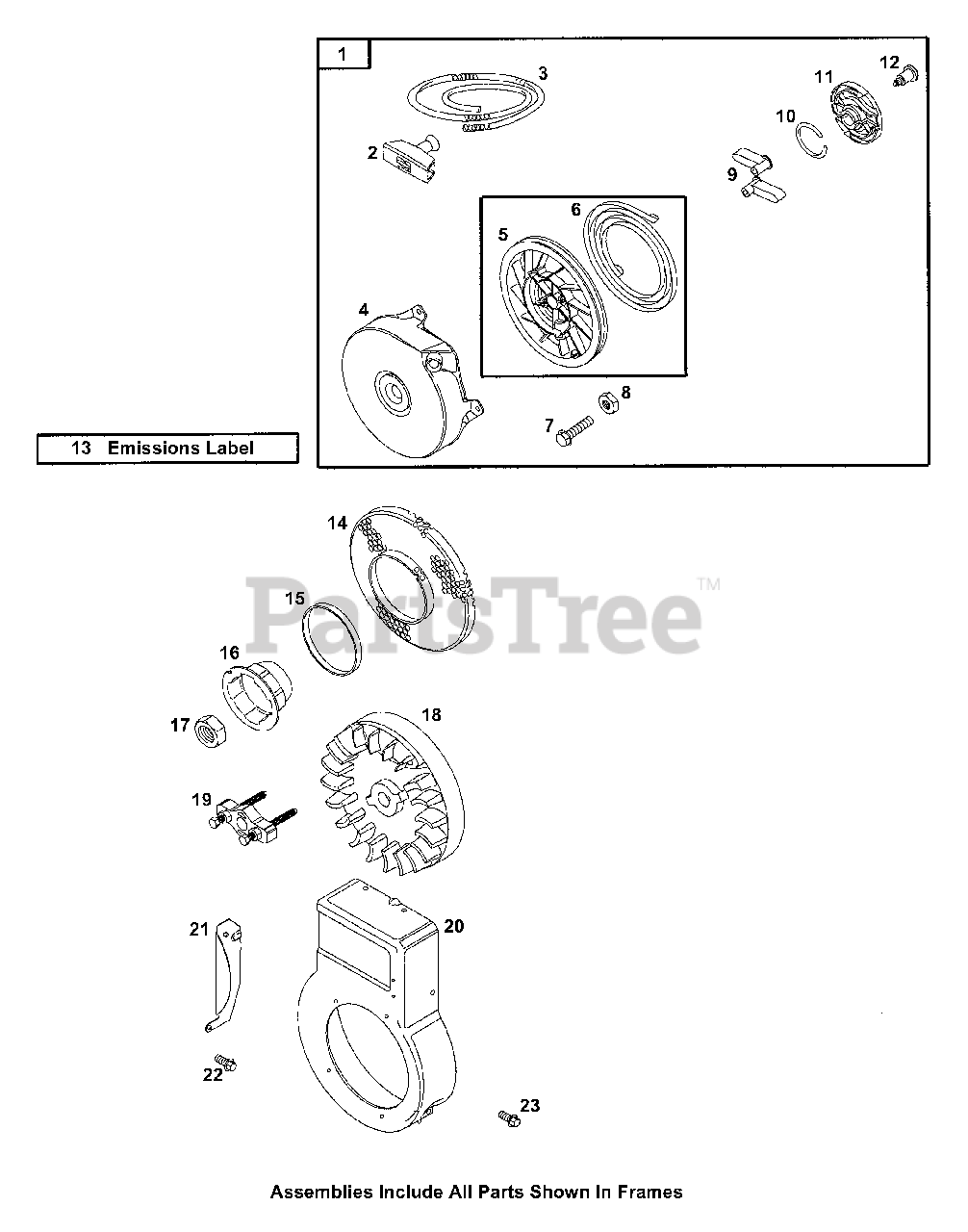

Starter Parts Diagram

  • Title

1

Cub Cadet BS-499706

Starter-Rewind

$65.99

$

In Stock, Qty 6

0

2

Cub Cadet BS-691915

Starter Rope Grip

$6.49

$

In Stock, Qty 12

0

3

Cub Cadet BS-692259

Starter Rope
(Superseded to BS-697316)

$5.99

$

In Stock, Qty 14

0

4

Cub Cadet BS-692144

Rewind Starter Housing

$45.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-499901

Pulley/Spring Assembly

$18.99

$

In Stock, Qty 5

0

6

Cub Cadet BS-499901

Pulley/Spring Assembly

$18.99

$

In Stock, Qty 5

0

7

Cub Cadet BS-690837

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 18

0

8

Cub Cadet BS-690800

Nut (Rewind Starter)
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

9

Cub Cadet BS-281505

Ratchet Pawl
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-691855

Friction Spring

$4.49

$

In Stock, Qty 7

0

11

Cub Cadet BS-692299

Pawl Friction Plate

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, only 4 left!

0

13

Cub Cadet BS-695097

Emissions Label

$3.99

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-694018

Rotating Screen
(Superseded to BS-699850)

$35.99

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-694420

Rotating Trim Ring

$

$

Not available

16

Cub Cadet BS-691236

Flywheel Cup

$11.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-690662

Nut (Flywheel)
(Superseded to 712-0318)

$3.49

$

In Stock, Qty 13

0

18

Cub Cadet BS-690843

Flywheel

$

$

Not available

19

Cub Cadet BS-19069

Flywheel Puller

$23.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-693004

Housing-Blower

$83.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-690463

Flywheel Guard

$10.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-690364

Screw (Flywheel Guard)
(Superseded to BS-94811)

$

$

Not available

23

Cub Cadet BS-692198

Screw (Blower Housing)

$5.99

$

In Stock, Qty 5

0
