DE 40 (25A-564A100) - Cub Cadet Edger Engine (1998) Engine, External Parts Diagram

Edger Engine

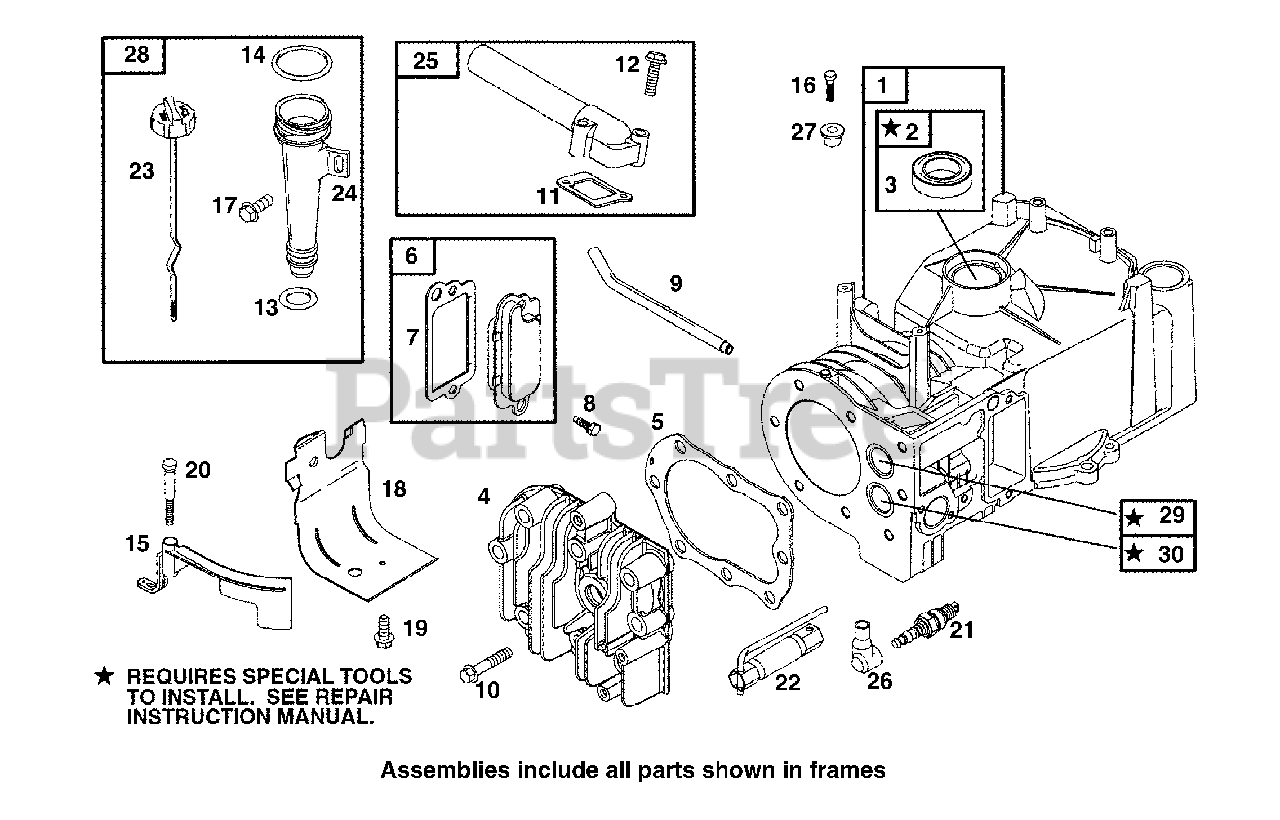

Engine, External Parts Diagram

  • Title

1

Cub Cadet BS-399164

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing
(Superseded to BS-399269)

$22.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-299819

Oil Seal
(Superseded to BS-299819S)

$5.99

$

In Stock, Qty 20+

0

4

Cub Cadet BS-214277

Cylinder Head

$

$

Not available

5

Cub Cadet BS-272694

Cylinder Head Gasket
(Superseded to BS-698717)

$6.49

$

In Stock, Qty 20+

0

6

Cub Cadet BS-495785

Breather Assembly

$

$

Not available

7

Cub Cadet BS-272602

Breather Gasket

$

$

Not available

8

Cub Cadet BS-94712

Hex Screw

$

$

Not available

9

Cub Cadet BS-231774

Breather Tube
(Superseded to BS-691245)

$9.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94960

Hex Screw
(Superseded to BS-691640)

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet BS-270345

Gasket-Intake

$

$

Not available

12

Cub Cadet BS-94851

Hex Screw

$

$

Not available

13

Cub Cadet BS-271485

Seal-O-Ring

$

$

Not available

14

Cub Cadet BS-270920

Seal-O-Ring
(Superseded to BS-691870)

$4.49

$

In Stock, only 1 left!

0

15

Cub Cadet BS-281024

Blade-Governor
(Superseded to BS-691912)

$14.99

$

In Stock, only 2 left!

0

16

Cub Cadet BS-93758

Hex Screw

$

$

Not available

17

Cub Cadet BS-94073

Shoulder Screw
(Superseded to BS-691002)

$8.99

$

In Stock, only 2 left!

0

18

Cub Cadet BS-221805

Cylinder Shield
(Superseded to BS-690400)

$

$

Not available

19

Cub Cadet BS-94515

Hex Screw

$

$

Not available

20

Cub Cadet BS-94732

Shoulder Screw

$

$

Not available

21

Cub Cadet BS-802592

Spark Plug

$

$

Currently unavailable

22

Cub Cadet BS-89838

Spark Plug Wrench
(Superseded to BS-89838S)

$6.49

$

In Stock, only 2 left!

0

23

Cub Cadet BS-497968

Dipstick

$

$

Not available

24

Cub Cadet BS-280504

Oil Fill Tube

$

$

Not available

25

Cub Cadet BS-298775

Manifold-Intake
(Superseded to BS-693446)

$15.99

$

In Stock, only 4 left!

0

26

Cub Cadet BS-66538

Spark Plug Boot
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet BS-232176

Spacer

$

$

Not available

28

Cub Cadet BS-497969

Dipstick/Tube Ass'y

$

$

Not available

29

Cub Cadet BS-211172

Valve Seat (Intake)

$

$

Not available

30

Cub Cadet BS-211291

Valve Seat (Exhaust)

$

$

Not available
