Defender (BZDE1K48691KR) - Spartan 48" Zero-Turn Mower (SN: 400000000 - 999999999) Engine and Muffler Assembly Parts Diagram

48" Zero-Turn Mower

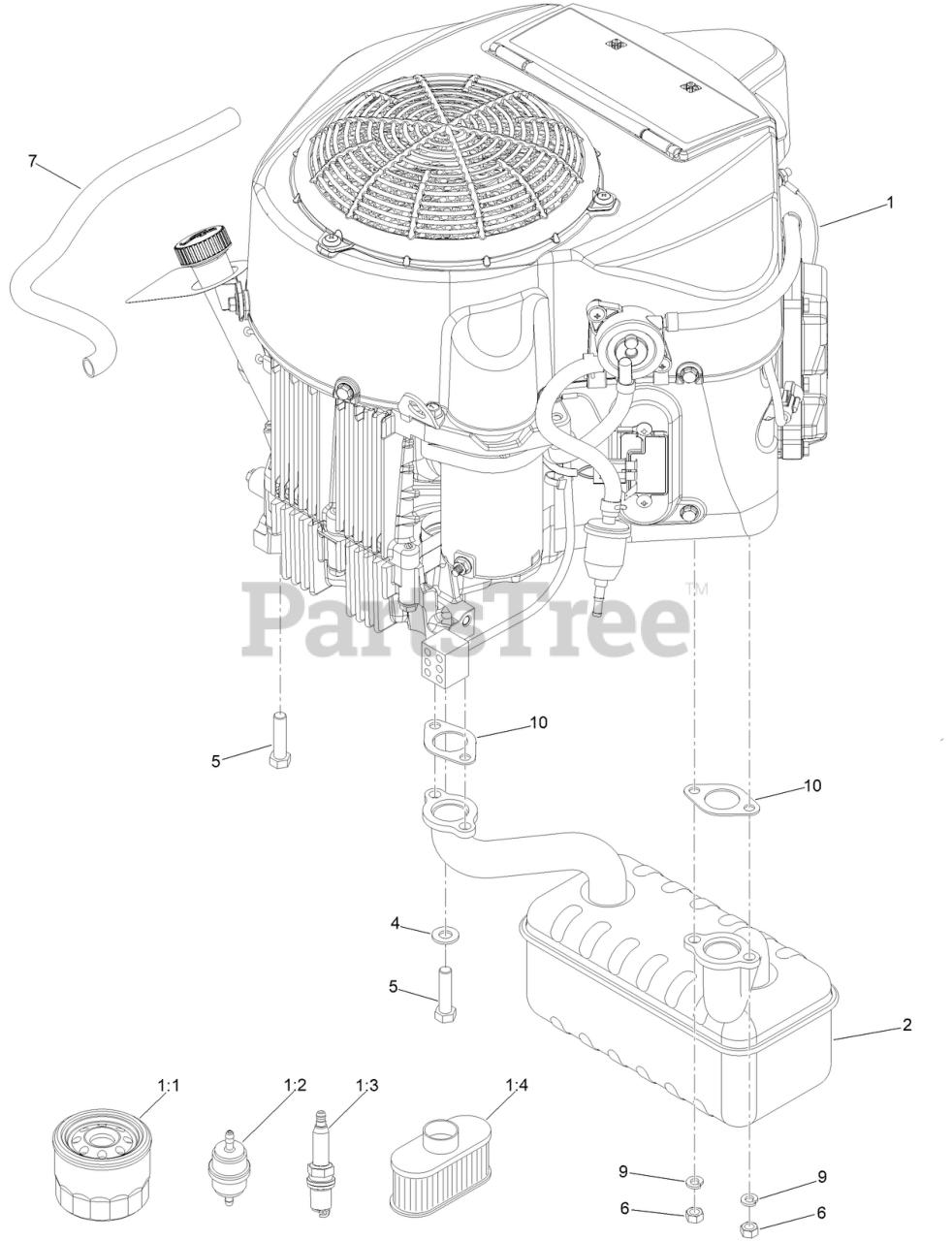

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI FR691

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1

ENGINE-KAWASAKI FR691

Note: Not serviced separately

$

$

Not available

1:1

Toro 119-5852

FILTER-OIL
(Superseded to 49065-0721)

Note: Not illustrated

$20.99

$

Usually ships in 2-5 days

0

1:2

Toro 142-6949

FILTER-FUEL

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0

1:3

Toro 92-2153

SPARK PLUG

Note: Not illustrated

$5.49

$

In Stock, Qty 11

0

1:4

Toro 120-7448

ELEMENT-FILTER, AIR

Note: Not illustrated

$36.99

$

In Stock, only 2 left!

0

2

Toro 139-5867

MUFFLER

$153.99

$

Usually ships in 3-6 days

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 114-3549

NUT

$3.49

$

In Stock, Qty 20+

0

7

Toro 106-7022

TUBE-DRAIN, OIL

$10.99

$

In Stock, Qty 6

0

9

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 10

0

10

Toro 1-653313

GASKET-EXHAUST

$5.49

$

Usually ships in 3-6 days

0
