Defender (SZDE1K54691KR) - Spartan 54" Zero-Turn Mower (SN: 400000000 - 418018736) Engine and Muffler Assembly Parts Diagram
54" Zero-Turn Mower

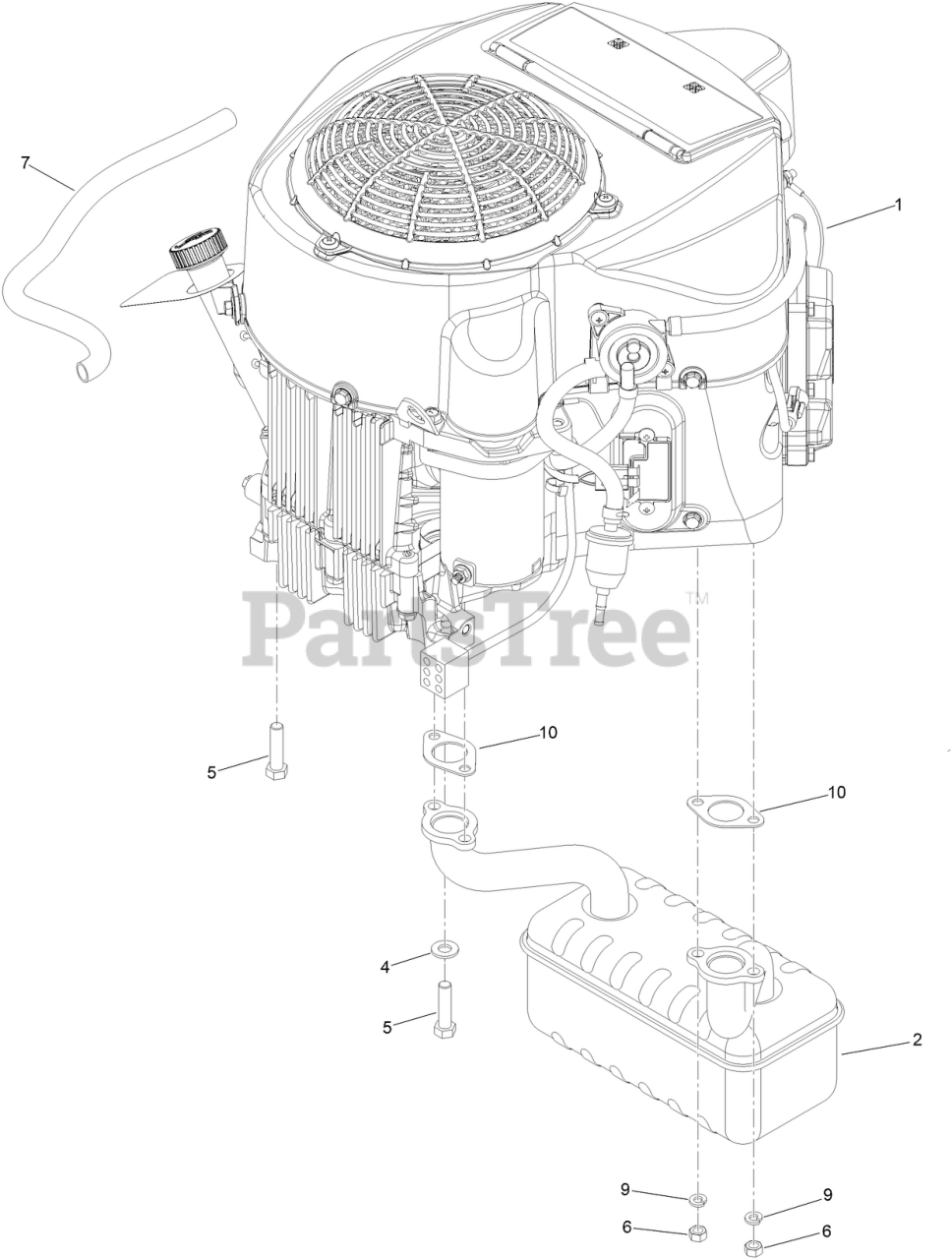

Engine and Muffler Assembly Parts Diagram
1
ENGINE-KAWASAKI FR691
Note: Not serviced separately
$
$
Not available
1
ENGINE-KAWASAKI FR691
Note: Obtain locally.
$
$
Not available
Toro 139-5867
MUFFLER
$153.99
$
Usually ships in 3-6 days
Toro 3256-24
WASHER-FLAT
$0.99
$
In Stock, Qty 20+
Toro 323-50
BOLT-HH
$1.49
$
In Stock, Qty 20+
Toro 114-3549
NUT
$3.49
$
In Stock, Qty 20+
Toro 106-7022
TUBE-DRAIN, OIL
$10.99
$
In Stock, Qty 6
Toro 114-3550
WASHER-LOCK
$1.49
$
In Stock, Qty 10
Toro 1-653313
GASKET-EXHAUST
$5.49
$
Usually ships in 3-6 days
