Defender (SZDE1K54691KR) - Spartan 54" Zero-Turn Mower (SN: 400000000 - 418018736) Seat Pan Assembly Parts Diagram

54" Zero-Turn Mower

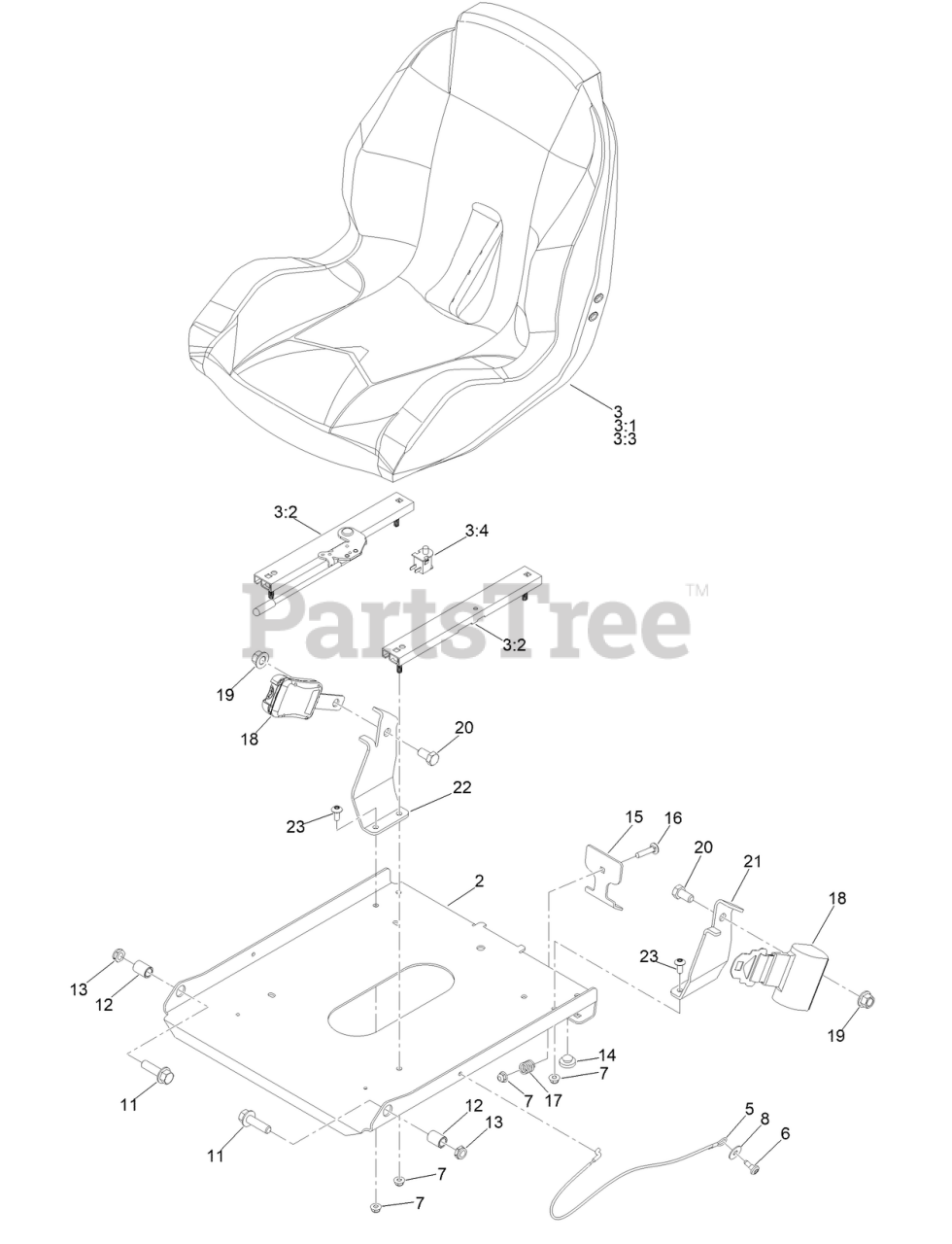

Seat Pan Assembly Parts Diagram

  • Title

2

Toro 163-3157-P11

PAN-SEAT, LOWERED

$

$

Currently unavailable

3

Toro 161-6447

SEAT ASM - SK130

$

$

Currently unavailable

3:1

Toro 148-1166

SEAT-DEFENDER

$

$

Currently unavailable

3:2

Toro 161-6448

SLIDE-ASM

$

$

Currently unavailable

3:3

Toro 161-6449

COVER-SEAT

$

$

Currently unavailable

3:4

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 20+

0

5

Toro 139-2398

CABLE-LANYARD

$11.99

$

Usually ships in 3-6 days

0

6

Toro 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

7

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Toro 147-5287

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro 130-6481

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

12

Toro 161-9735

BUSHING-PIVOT, SEAT

$1.99

$

Usually ships in 3-6 days

0

13

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

14

Toro 135-0505

BUMPER-SEAT

$1.49

$

Usually ships in 3-6 days

0

15

Toro 161-9732

BRACKET-LATCH, SEAT

$

$

Currently unavailable

16

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 11

0

17

Toro 107-3017

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

18

Toro 109-9805

SEAT BELT KIT

$329.99

$

Usually ships in 3-6 days

0

19

Toro 139-1689

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

20

Toro 139-2628

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

21

Toro 161-6616-P11

BRACKET-SEATBELT, LH

$

$

Currently unavailable

22

Toro 161-6617-P11

BRACKET-SEATBELT, RH

$

$

Currently unavailable

23

Toro 126-6268

SCREW-TORX

$1.99

$

In Stock, only 2 left!

0
