Defender (SZDE1K60730KR) - Spartan 60" Zero-Turn Mower (SN: 400000000 - 418019650) 60 Inch Cutting Deck Assembly Parts Diagram

60" Zero-Turn Mower

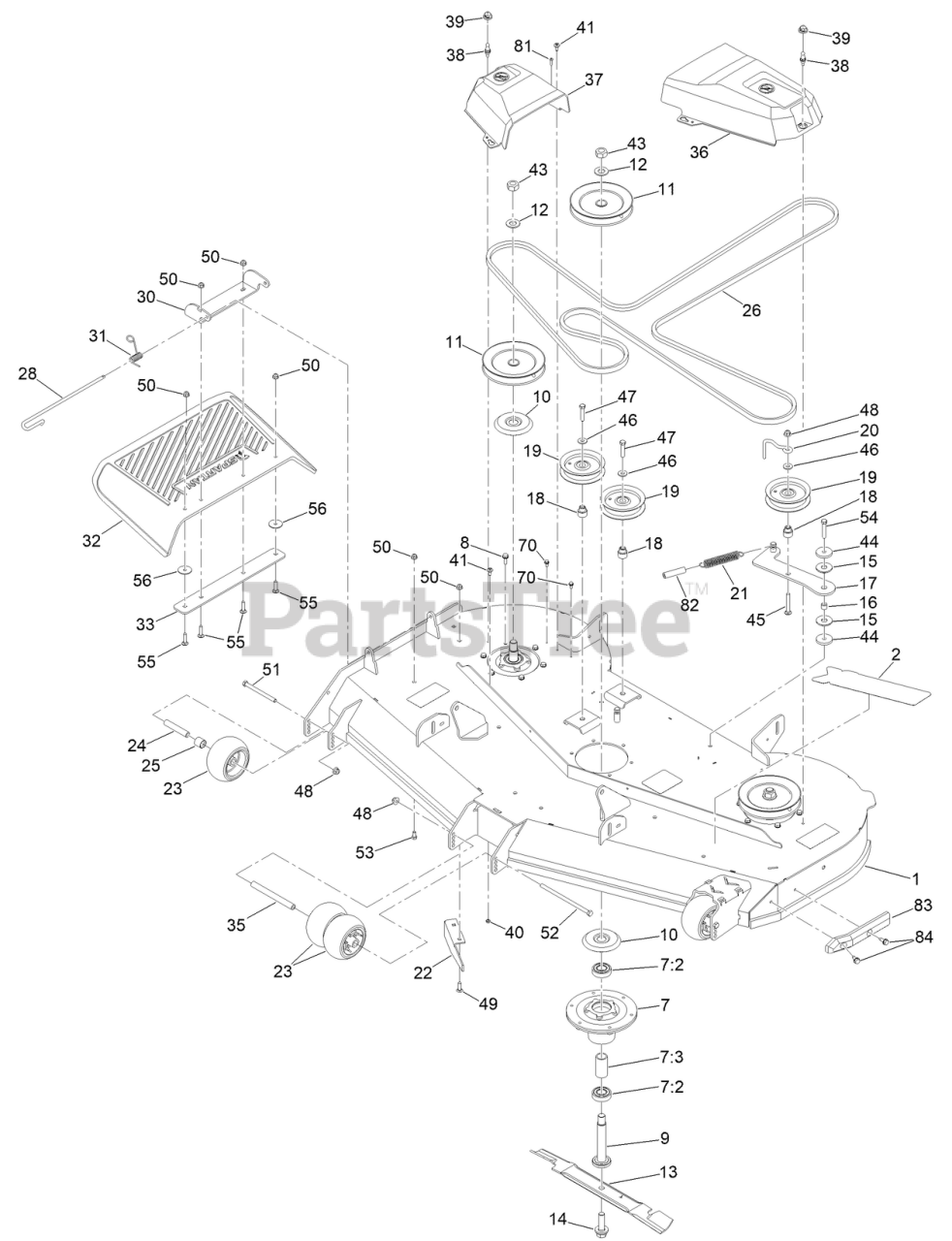

60 Inch Cutting Deck Assembly Parts Diagram

  • Title

1

Toro 161-6451

60 IN DECK DECAL ASM

$

$

Currently unavailable

2

Toro 148-0443

DECAL-XTF

$

$

Currently unavailable

7

Toro 139-2357

SPINDLE ASM

$113.99

$

In Stock, Qty 20+

0

7:2

Toro 116-0720

BEARING-BALL

$25.99

$

In Stock, Qty 20+

0

7:3

Toro 138-7220

SPACER-BEARING

$8.49

$

In Stock, Qty 11

0

8

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

9

Toro 115-2642

SHAFT-SPINDLE

$58.99

$

In Stock, Qty 20+

0

10

Toro 138-7221

SHIELD-BEARING

$5.99

$

In Stock, Qty 15

0

11

Toro 147-7674

PULLEY

$

$

Currently unavailable

12

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

0

13

Toro 115-9649-03

BLADE-HI FLOW, 20.5 INCH

$26.99

$

In Stock, Qty 20+

0

14

Toro 145-0412

SCREW-BLADE

$7.49

$

In Stock, only 2 left!

0

15

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

0

16

Toro 138-7225

SPACER

$5.49

$

In Stock, only 2 left!

0

17

Toro 145-7038

IDLER ARM ASM

$

$

Currently unavailable

18

Toro 138-7227

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

19

Toro 132-4718

PULLEY-IDLER, FLAT

$35.99

$

In Stock, Qty 20+

0

20

Toro 136-5615

GUIDE-BELT, IDLER

$6.99

$

In Stock, Qty 11

0

21

Toro 138-7228

SPRING-EXTENSION

$5.99

$

In Stock, Qty 20+

0

22

Toro 119-3388-P11

BAFFLE-CUTOFF

$

$

Currently unavailable

23

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

24

Toro 138-7229

TUBE-SPANNER

$6.99

$

In Stock, Qty 10

0

25

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

In Stock, Qty 20+

0

26

Toro 133-1168

BELT-V

$153.99

$

In Stock, only 4 left!

0

28

Toro 138-7231

PIN-CHUTE

$9.49

$

In Stock, only 2 left!

0

30

Toro 114-1648-P11

BRACKET-DEFLECTOR, UPPER

$

$

Currently unavailable

31

Toro 138-7232

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

32

Toro 148-0515

DEFLECTOR-DISCHARGE

$

$

Currently unavailable

33

Toro 115-5048-P11

PLATE-DEFLECTOR

$

$

Currently unavailable

35

Toro 98-5967

SPACER-WHEEL

$17.99

$

In Stock, Qty 20+

0

36

Toro 147-2854

COVER-BELT, LH

$

$

Currently unavailable

37

Toro 147-2853

COVER-BELT, RH

$

$

Currently unavailable

38

Toro 147-2872

STUD-BALL

$

$

Currently unavailable

39

Toro 147-2871

GROMMET-BALL

$

$

Currently unavailable

40

Toro 115-7373

NUT-LOCK

$0.99

$

In Stock, only 1 left!

0

41

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

43

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

44

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 20+

0

45

Toro 3231-31

SCREW-CARR

$7.99

$

In Stock, Qty 20+

0

46

Toro 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

47

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

48

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

49

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

50

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

51

Toro 323-23

SCREW-HH

$5.99

$

In Stock, Qty 20+

0

52

Toro 108-5388

SCREW-HH

$17.99

$

In Stock, Qty 20+

0

53

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

54

Toro 323-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

55

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

56

Toro 3256-68

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

70

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

81

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0

82

Toro 99-7375

HOSE-BREATHER

$11.99

$

Usually ships in 3-6 days

0

83

Toro 148-0781

BUMPER-DECK

$

$

Currently unavailable

84

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
