DH 212 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: S78311001001 - S78311999999) Fuel System Parts Diagram

Hedge Trimmer, Dual-Sided

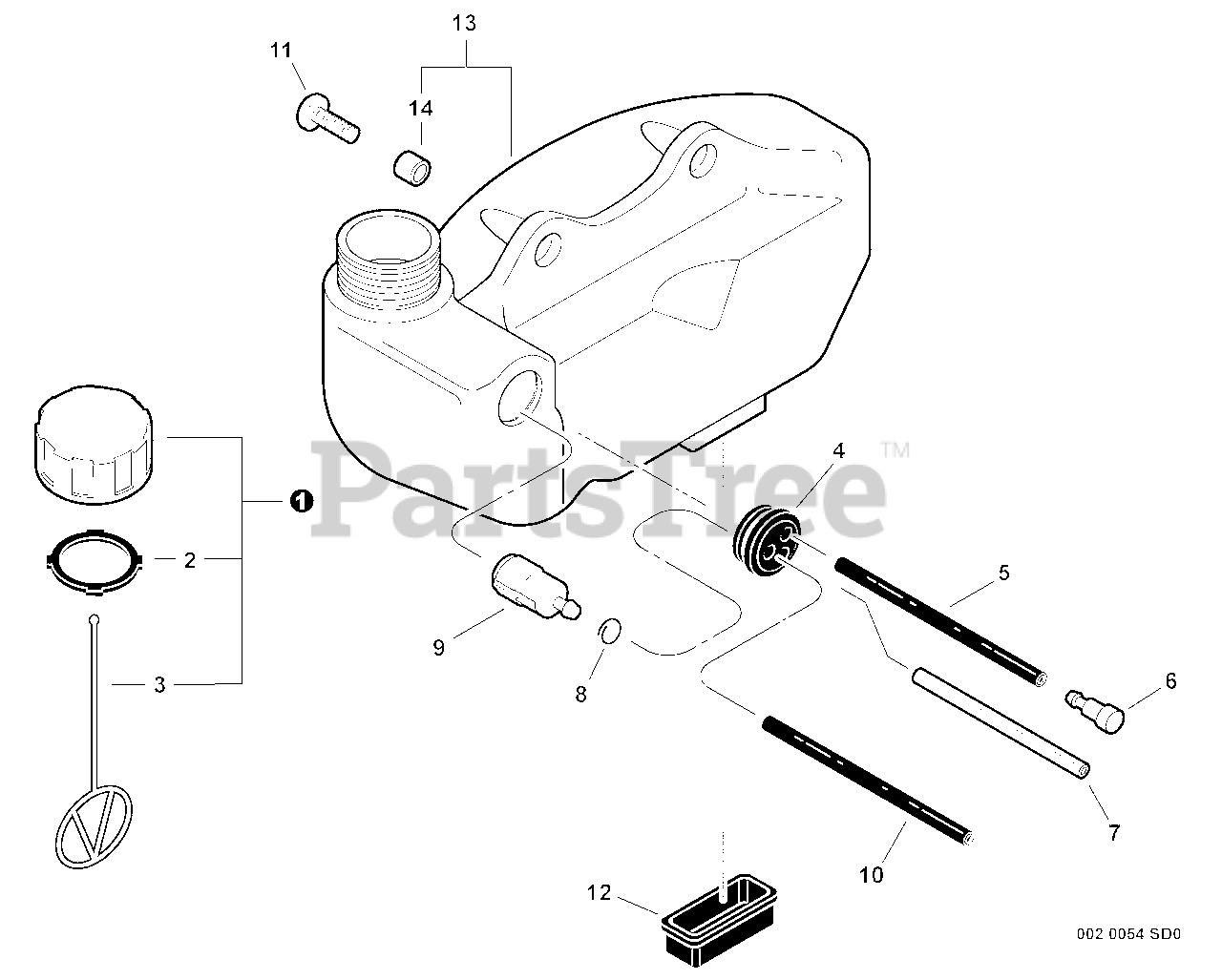

Fuel System Parts Diagram

  • Title

1

Echo P021014060

CAP ASSY - RED
(Superseded to P021014061)

Note: INCLUDES ITEMS 2-3

$11.99

$

In Stock, only 1 left!

0

2

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

3

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

4

Echo V137000030

GROMMET
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

5

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

6

Echo A356000031

VENT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

7

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

Usually ships in 2-4 days

0

8

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$6.49

$

In Stock, Qty 20+

0

10

Echo V470000580

PIPE - 3X5X195 -- BLACK
(Superseded to V470000581)

Note: RePower BULK OPTION: 90014

$2.99

$

In Stock, Qty 20+

0

11

Echo 90027505015

SCREW - 5X15

$0.99

$

In Stock, Qty 12

0

12

Echo 13192061830

CUSHION, FUEL TANK

$6.49

$

Usually ships in 2-4 days

0

13

Echo A350000680

FUEL TANK ASSY
(Superseded to A350002600)

Note: Includes ITEM 14

$20.99

$

In Stock, only 3 left!

0

14

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 8

0
