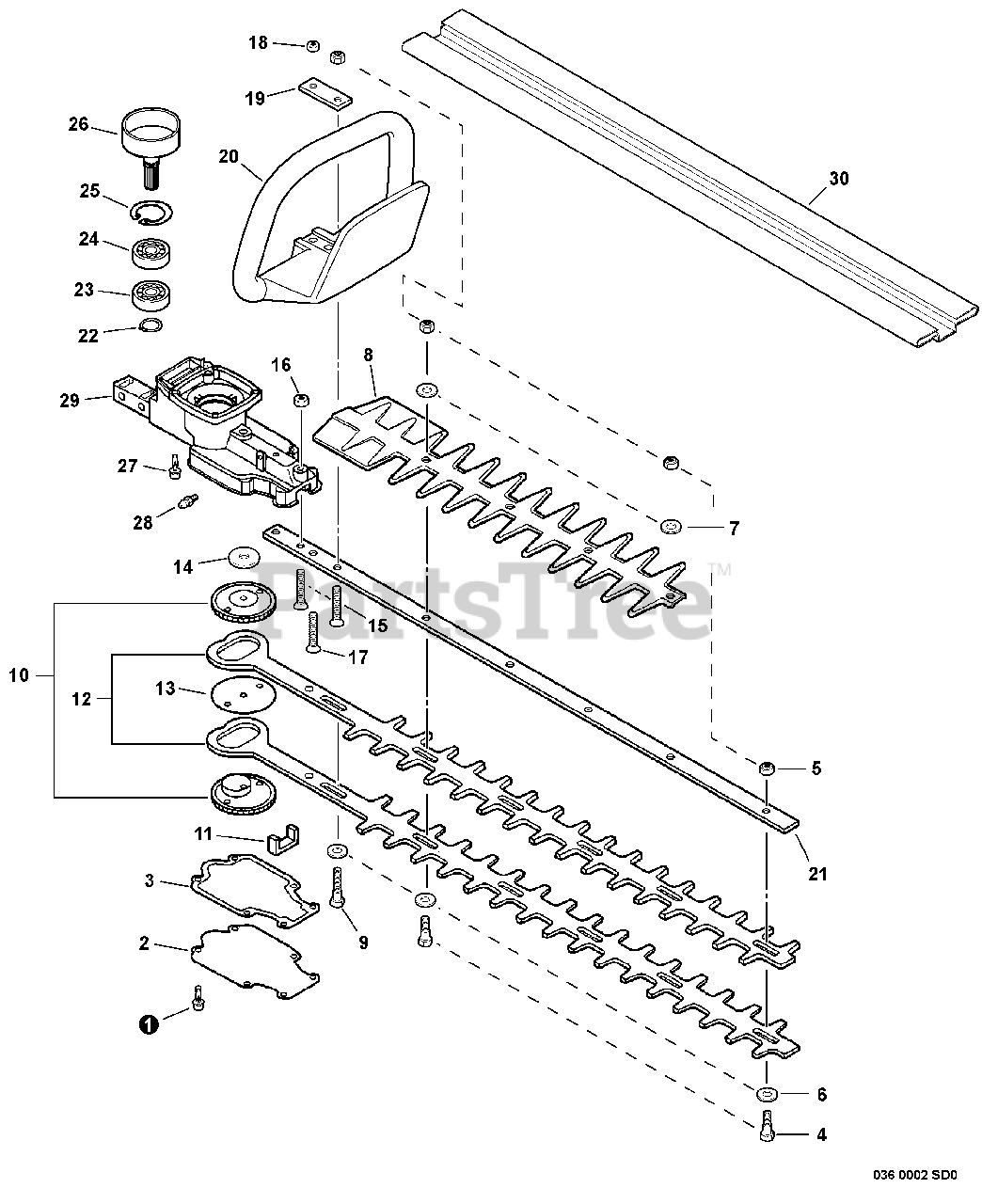

DH 212 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: S78311001001 - S78311999999) Gear Case, Blades, Front Handle Parts Diagram

Hedge Trimmer, Dual-Sided

Gear Case, Blades, Front Handle Parts Diagram

  • Title

1

Echo 90016204012

BOLT 4×12

$1.49

$

In Stock, Qty 20+

0

2

Echo 61041106561

COVER, GEAR CASE

$12.99

$

In Stock, only 2 left!

0

3

Echo 61041406560

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 7

0

4

Echo 69911504660

BOLT 6×18

$2.99

$

In Stock, Qty 20+

0

5

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

6

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

7

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

8

Echo 69912503061

GUARD, CUTTER BLADE

$12.99

$

In Stock, only 2 left!

0

9

Echo 69911506560

BOLT M6×35

$3.49

$

In Stock, Qty 9

0

10

Echo V650000080

GEAR, SPUR

$64.99

$

In Stock, Qty 7

0

11

Echo 61042606560

SEAL

$3.49

$

In Stock, Qty 20+

0

12

Echo X411000271

CUTTER
(Superseded to X411000272)

$49.99

$

In Stock, Qty 20+

0

13

Echo 68902505360

WASHER 6.7×54×0.38

$2.99

$

In Stock, only 2 left!

0

14

Echo 68902506560

WASHER 6.5×30×0.2

$1.99

$

In Stock, Qty 7

0

15

Echo 90021206030

SCREW 6×30

$1.99

$

In Stock, Qty 8

0

16

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

17

Echo 90021205030

SCREW 5×30

$0.99

$

In Stock, Qty 16

0

18

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

19

Echo 35161105360

PLATE, EYE

$8.99

$

In Stock, only 2 left!

0

20

Echo 35161005360

HANDLE, SUPPORT

$47.99

$

In Stock, only 2 left!

0

21

Echo X425000180

SUPPORT, BLADE

$31.99

$

In Stock, only 2 left!

0

22

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 2 left!

0

23

Echo 90087036202

BEARING, BALL 6202

$11.99

$

In Stock, only 2 left!

0

24

Echo 90087236202

BEARING, BALL 6202

$12.99

$

In Stock, only 2 left!

0

25

Echo 90070200035

RING, SNAP 35

$2.49

$

In Stock, Qty 9

0

26

Echo 17500506560

DRUM, CLUTCH

$40.99

$

In Stock, Qty 9

0

27

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.99

$

In Stock, Qty 18

0

28

Echo 88011054230

FITTING, GREASE

$6.49

$

In Stock, only 2 left!

0

29

Echo C531000052

CASE, GEAR
(Superseded to C531000053)

$80.99

$

In Stock, only 2 left!

0

30

Echo X495000220

SCABBARD
(Superseded to X495000240)

$10.99

$

Usually ships in 2-4 days

0
