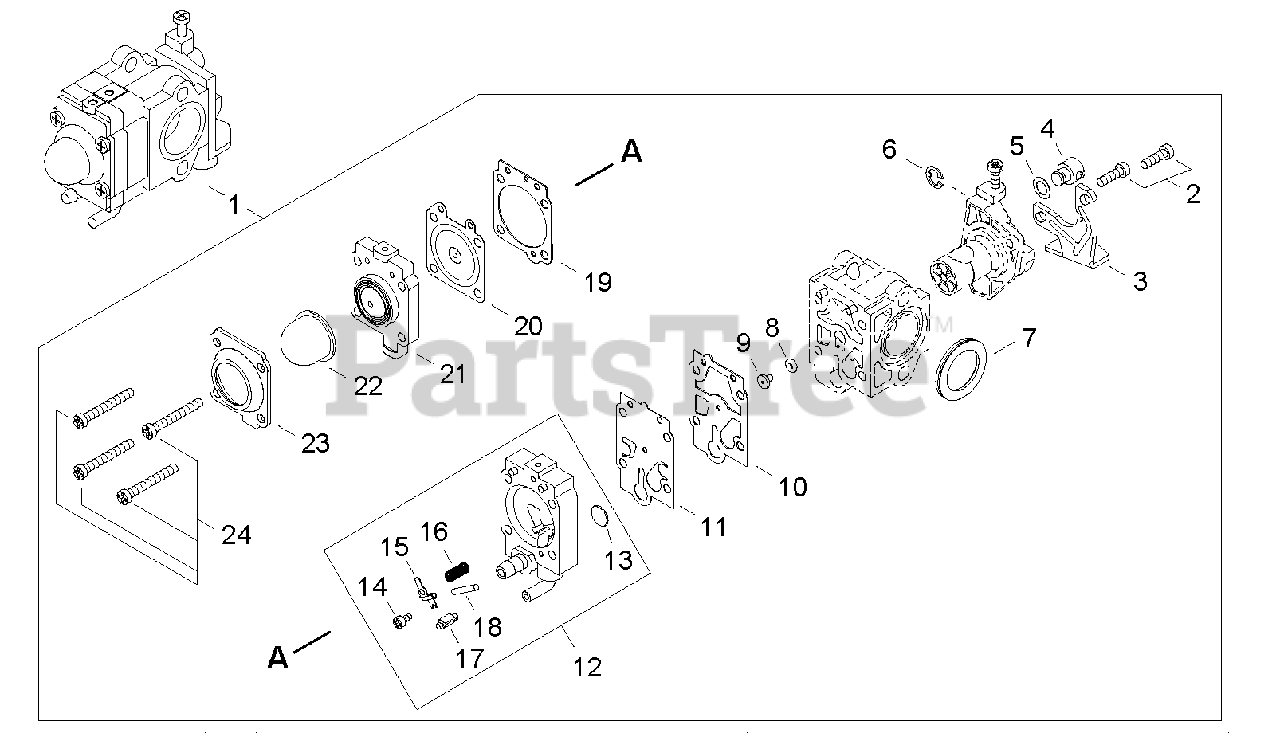

DH 231 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T09012001001 - T09012999999) Carburetor Parts Diagram

Hedge Trimmer, Dual-Sided

Carburetor Parts Diagram

  • Title

1

Echo A021003271

CARBURETOR - WYJ-488A

Note: Includes ITEMS 2-24

$117.99

$

Usually ships in 2-4 days

0

2

Echo 12311440630

SCREW

$6.99

$

In Stock, only 2 left!

0

3

Echo 12312854230

BRACKET, THROTTLE CABLE

$6.49

$

Usually ships in 2-4 days

0

4

Echo 12317245130

SWIVEL

$2.49

$

Usually ships in 2-4 days

0

5

Echo 12314954230

WASHER

$0.99

$

Usually ships in 2-4 days

0

6

Echo 12317307930

E-RING

$1.49

$

In Stock, only 1 left!

0

7

Echo 12314312110

RING, PACKING

$4.99

$

In Stock, only 3 left!

0

8

Echo 12318305960

O-RING

$19.99

$

In Stock, only 2 left!

0

9

Echo 12318444330

JET, MAIN #37

$3.99

$

In Stock, only 4 left!

0

10

Echo 12312540630

GASKET, PUMP

$5.99

$

In Stock, only 2 left!

0

11

Echo 12311240630

DIAPHRAGM, FUEL PUMP

$14.99

$

In Stock, only 3 left!

0

12

Echo 12317905560

BODY ASSY, PUMP

Note: Includes ITEMS 13-18

$20.99

$

In Stock, only 1 left!

0

13

Echo 12312610631

SCREEN, FUEL INLET

$1.99

$

In Stock, only 3 left!

0

14

Echo 12313905560

SCREW

$0.99

$

Usually ships in 2-4 days

0

15

Echo 123123-38330

LEVER, METERING
(Superseded to 12312338330)

$7.99

$

In Stock, only 1 left!

0

16

Echo 12312205560

SPRING, METERING LEVER

$4.99

$

Usually ships in 2-4 days

0

17

Echo 12313719830

VALVE, INLET NEEDLE

$22.99

$

Usually ships in 2-4 days

0

18

Echo 12313803930

PIN, METERING LEVER

$6.99

$

In Stock, only 3 left!

0

19

Echo 12314005560

GASKET, METERING DIAPHRAGM

$4.99

$

In Stock, only 2 left!

0

20

Echo 12314103930

DIAPHRAGM, METERING

$15.99

$

In Stock, only 3 left!

0

21

Echo 12318005560

BODY ASSY, PURGE

$8.99

$

In Stock, only 2 left!

0

22

Echo 12318140630

BULB, PURGE

$6.49

$

In Stock, Qty 20+

0

23

Echo 12314205560

RETAINER, PURGE BULB

$5.49

$

In Stock, only 1 left!

0

24

Echo 12311005560

SCREW

$2.99

$

In Stock, Qty 20+

0
