DH 231 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T09012001001 - T09012999999) Flywheel, Starter Parts Diagram

Hedge Trimmer, Dual-Sided

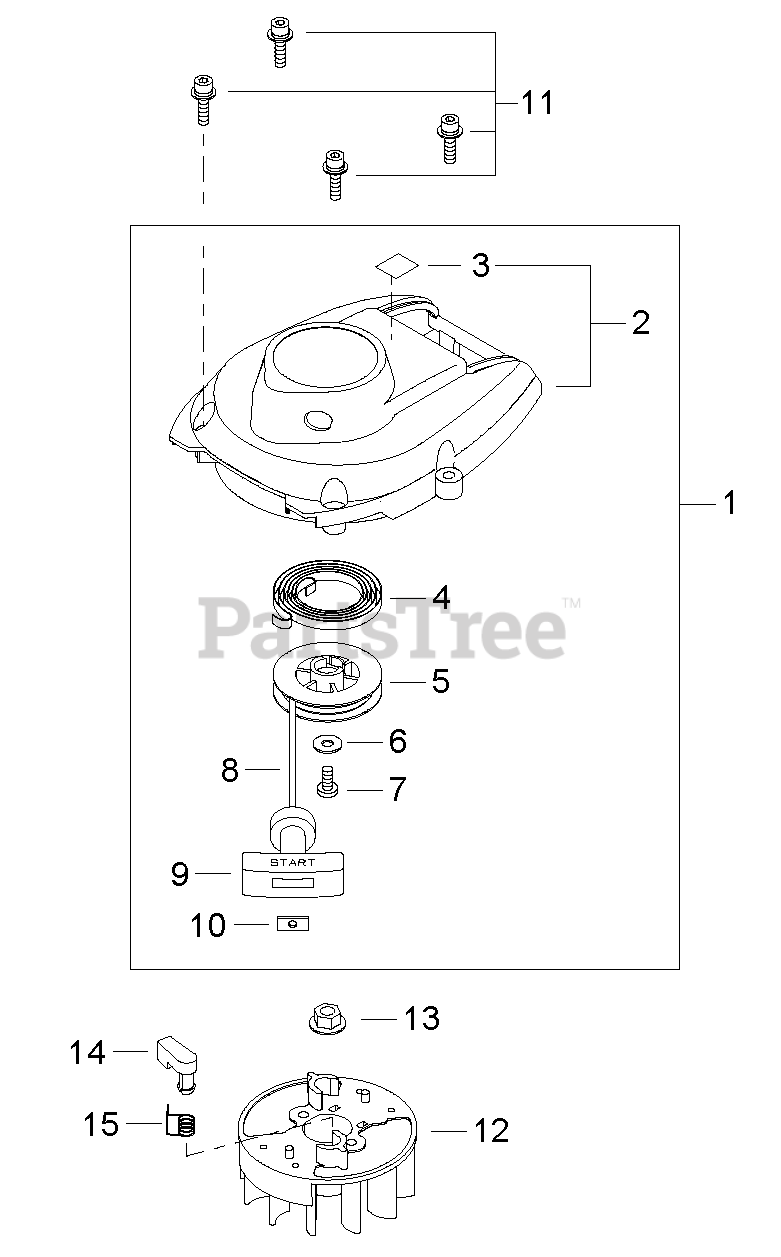

Flywheel, Starter Parts Diagram

  • Title

1

Echo P021027420

STARTER ASSY, RECOIL

Note: Includes ITEMS 2-10

$76.99

$

In Stock, only 4 left!

0

2

Echo P021035050

CASE ASSY, RECOIL STARTER

Note: Includes ITEM 3

$36.99

$

Usually ships in 2-4 days

0

3

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

In Stock, only 2 left!

0

4

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

5

Echo A506000340

REEL, ROPE

$8.99

$

In Stock, only 3 left!

0

6

Echo V303000230

WASHER 5

$1.99

$

Usually ships in 2-4 days

0

7

Echo V253000560

SCREW 5
(Superseded to 17723640630)

$4.99

$

In Stock, Qty 13

0

8

Echo A509000300

ROPE, STARTER
(Superseded to P022006800)

$7.99

$

Usually ships in 2-4 days

0

9

Echo A511000160

GRIP, STARTER
(Superseded to 17722827030)

$7.49

$

In Stock, only 3 left!

0

10

Echo A522000040

RETAINER, ROPE
(Superseded to 17724611120)

$2.49

$

In Stock, only 2 left!

0

11

Echo V203001010

BOLT, ADHESIVE M5×20

$1.99

$

In Stock, only 2 left!

0

12

Echo A409000720

FLYWHEEL

$46.99

$

Usually ships in 2-4 days

0

13

Echo V265000140

NUT M8

$1.49

$

In Stock, only 3 left!

0

14

Echo A514000190

PAWL

$1.99

$

In Stock, only 4 left!

0

15

Echo V452000620

SPRING, TORSION

$1.49

$

In Stock, Qty 5

0
