DH 231 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T09213001001 - T09213999999) Gear Case Parts Diagram

Hedge Trimmer, Dual-Sided

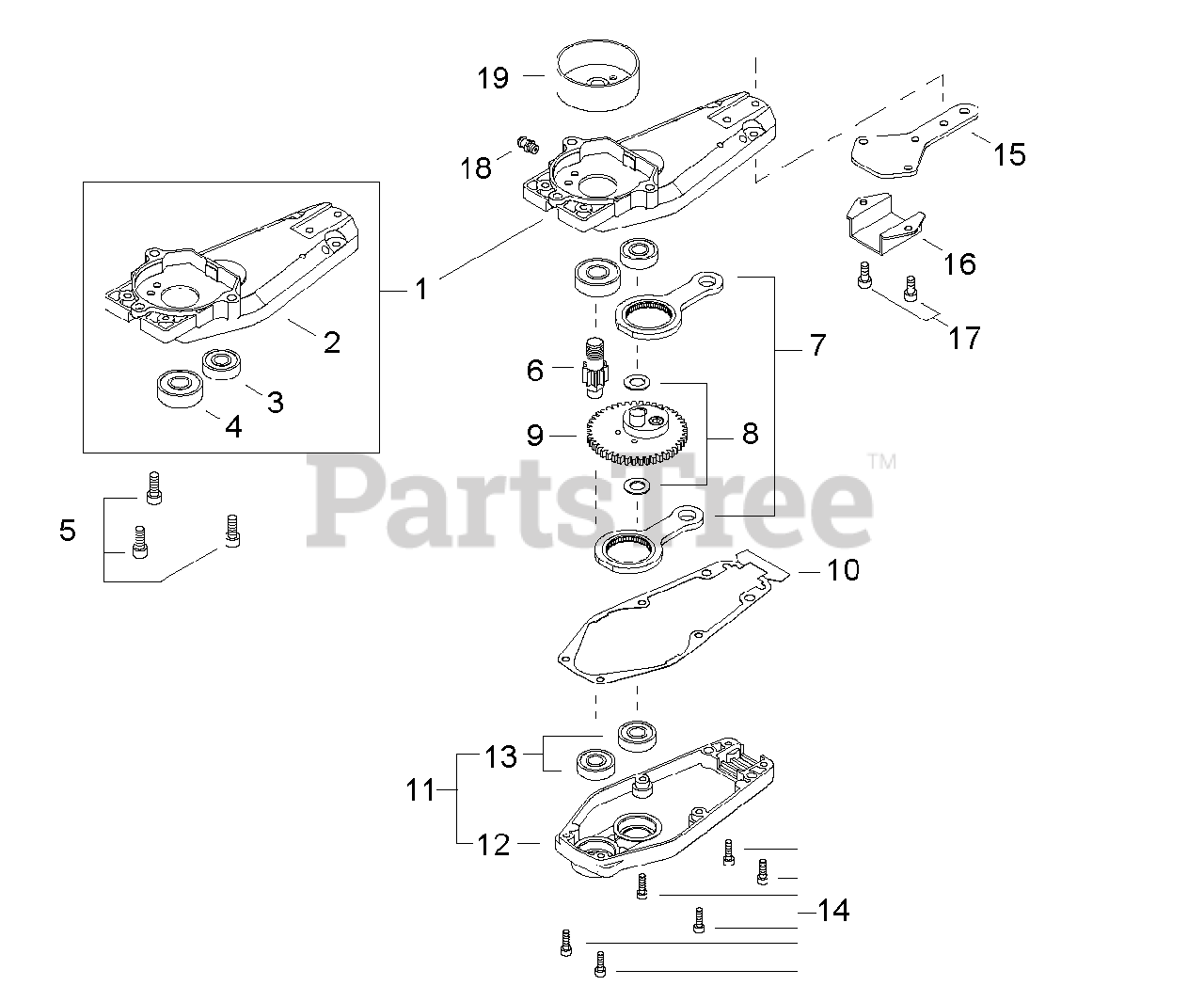

Gear Case Parts Diagram

  • Title

1

Echo P021018920

GEAR CASE ASSY

Note: Includes ITEMS 2-4

$67.99

$

Usually ships in 2-4 days

0

2

Echo C531000690

CASE, GEAR

$43.99

$

In Stock, only 1 left!

0

3

Echo 9404406000

BEARING, BALL - 6000ZZ

$10.99

$

In Stock, Qty 9

0

4

Echo 90081206201

BEARING, BALL - 6201

$13.99

$

In Stock, Qty 8

0

5

Echo 90010506016

SCREW - 6X16

$1.49

$

In Stock, Qty 8

0

6

Echo V655000050

SHAFT, PINION

$32.99

$

Usually ships in 2-4 days

0

7

Echo C532000210

ROD, CONNECTING

$71.99

$

In Stock, Qty 9

0

8

Echo V307000240

WASHER - 10

$1.49

$

In Stock, only 2 left!

0

9

Echo V060000080

CAM GEAR ASSY

$88.99

$

Usually ships in 2-4 days

0

10

Echo V110000130

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 7

0

11

Echo P021018930

GEAR CASE LID ASSY

Note: Includes ITEMS 12-13

$48.99

$

In Stock, only 1 left!

0

12

Echo C539000070

LID, GEAR CASE

$28.99

$

In Stock, only 1 left!

0

13

Echo 9404406000

BEARING, BALL - 6000ZZ

$10.99

$

In Stock, Qty 9

0

14

Echo 90010504014

SCREW - 4X14

$1.49

$

In Stock, Qty 20+

0

15

Echo V150002430

PLATE

$6.49

$

Usually ships in 2-4 days

0

16

Echo C538000140

GUIDE, BLADE

$4.49

$

Usually ships in 2-4 days

0

17

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 11

0

18

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, only 4 left!

0

19

Echo A556000930

DRUM, CLUTCH

$24.99

$

Usually ships in 2-4 days

0
