DH 231 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T09213001001 - T09213999999) Intake Parts Diagram

Hedge Trimmer, Dual-Sided

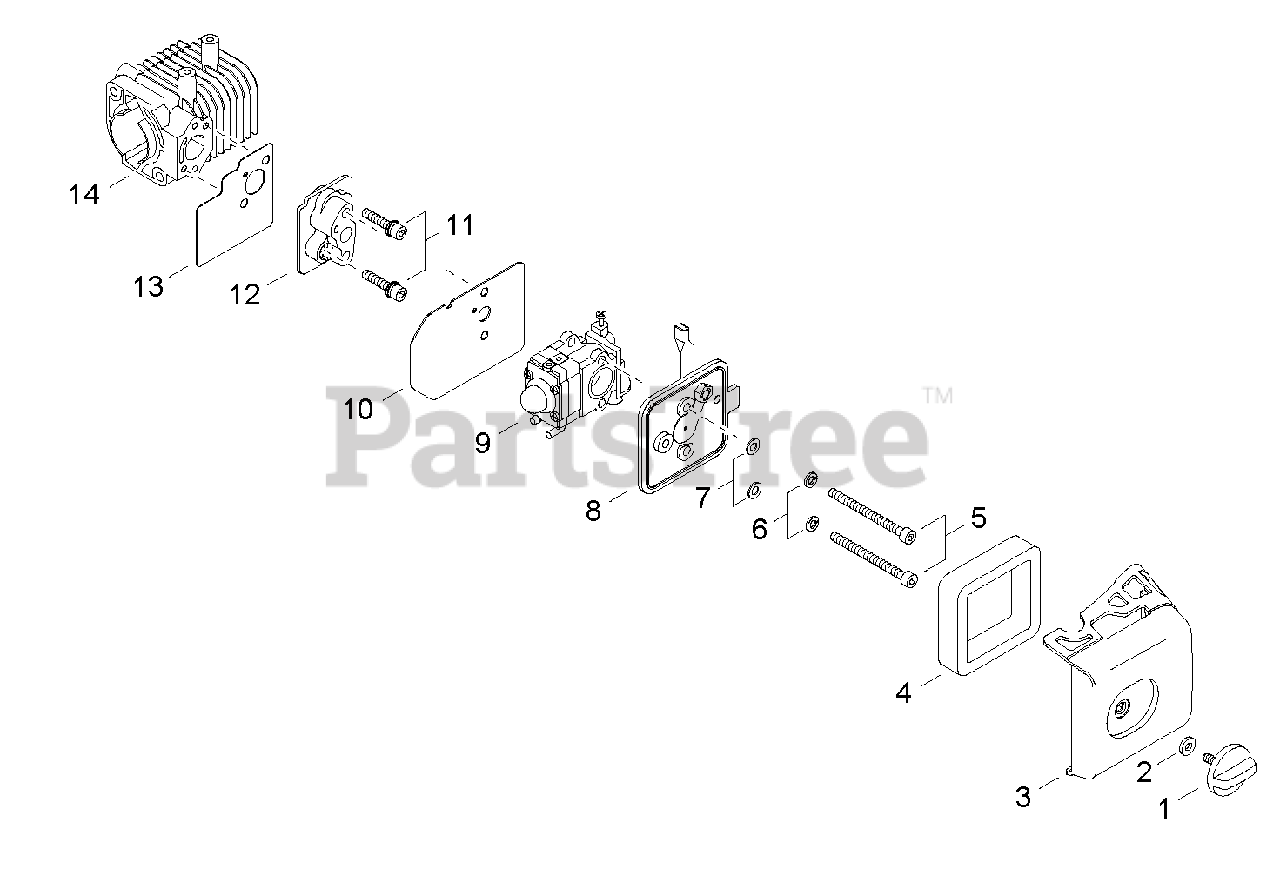

Intake Parts Diagram

  • Title

1

Echo V299000410

THUMBSCREW

$6.49

$

In Stock, Qty 9

0

2

Echo V323000080

WASHER 5

$1.49

$

In Stock, Qty 6

0

3

Echo A232000931

COVER, AIR FILTER

$10.99

$

In Stock, only 2 left!

0

4

Echo A226000730

FILTER, AIR

$2.99

$

In Stock, only 2 left!

0

5

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

6

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

7

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

8

Echo A023000220

CASE ASSY, AIR FILTER

$24.99

$

In Stock, only 2 left!

0

9

Echo A021003271

CARBURETOR - WYJ-488A

$117.99

$

Usually ships in 2-4 days

0

10

Echo V103001180

GASKET, CARBURETOR

$5.49

$

In Stock, only 2 left!

0

11

Echo V203000580

BOLT M5×30
(Superseded to V203000581)

$

$

Not available

12

Echo A200000770

INSULATOR, INTAKE
(Superseded to A200000771)

$13.99

$

Usually ships in 2-4 days

0

13

Echo V103001170

GASKET, INTAKE

$1.99

$

Usually ships in 2-4 days

0

14

Echo A130001380

CYLINDER
(Superseded to A130001381)

$71.99

$

Usually ships in 2-4 days

0
