DH 232 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T23311001001 - T23311999999) Gear Case Parts Diagram

Hedge Trimmer, Dual-Sided

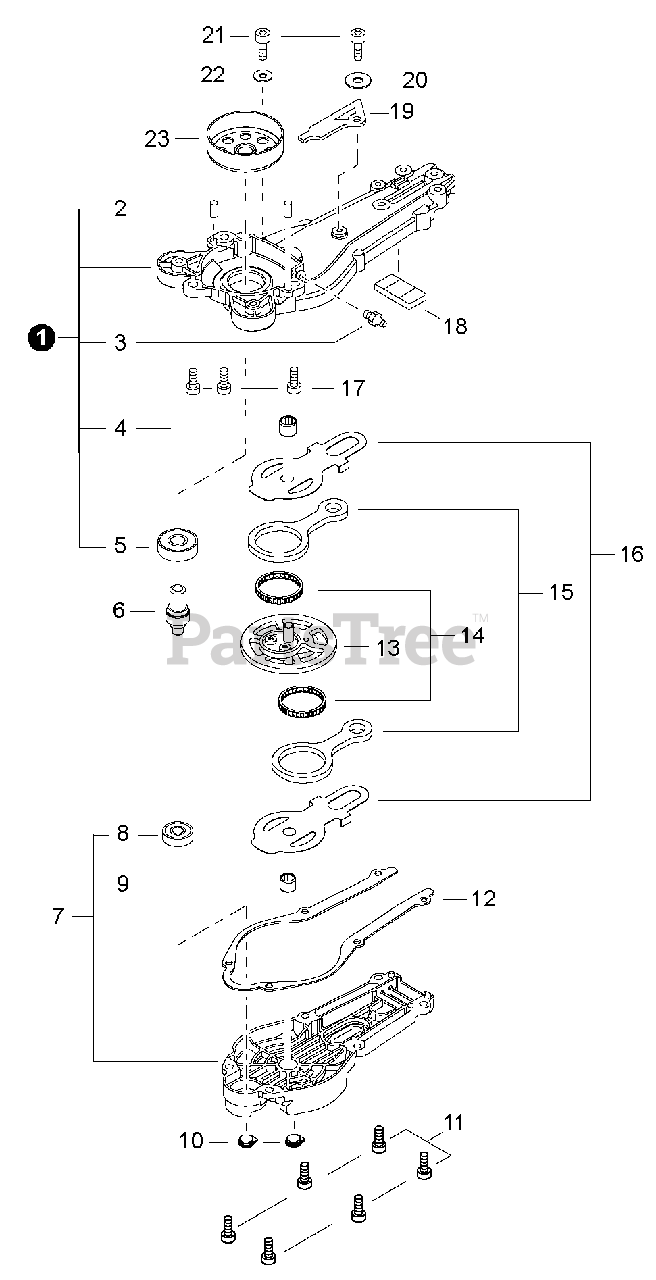

Gear Case Parts Diagram

  • Title

1

Echo P021041560

GEAR CASE ASSY
(Superseded to P021041561)

Note: Includes ITEMS 2-5

$73.99

$

In Stock, only 1 left!

0

2

Echo 90033040080

PIN - LOCATING

$0.99

$

In Stock, Qty 20+

0

3

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, Qty 20+

0

4

Echo V553000110

BEARING, NEEDLE - 8

$6.49

$

Usually ships in 2-4 days

0

5

Echo 90080206001

BEARING, BALL - 6001 DDU
(Superseded to 9404206001)

$9.99

$

In Stock, only 2 left!

0

6

Echo V655000070

SHAFT, PINION

$18.99

$

In Stock, only 1 left!

0

7

Echo P021034241

GEAR CASE COVER ASSY

Note: Includes ITEMS 8-9

$71.99

$

In Stock, only 1 left!

0

8

Echo 90080400608

BEARING, BALL - 608ZZ

$12.99

$

In Stock, only 3 left!

0

9

Echo V553000110

BEARING, NEEDLE - 8

$6.49

$

Usually ships in 2-4 days

0

10

Echo V162000390

PLUG

$3.49

$

In Stock, only 4 left!

0

11

Echo V805000150

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

12

Echo V110000120

GASKET, GEAR CASE
(Superseded to V110000190)

$9.49

$

In Stock, only 2 left!

0

13

Echo V060000071

GEAR - SPUR
(Superseded to V060000072)

$114.99

$

Usually ships in 2-4 days

0

14

Echo V572000000

BEARING, NEEDLE - 30

$15.99

$

In Stock, Qty 8

0

15

Echo C532000200

ROD, CONNECTING

$36.99

$

In Stock, only 2 left!

0

16

Echo C603000260

PLATE, GEAR CASE

$4.99

$

Usually ships in 2-4 days

0

17

Echo V806000050

SCREW - 6X20

$0.99

$

In Stock, Qty 20+

0

18

Echo V541000200

SEAL, FELT

$3.49

$

In Stock, only 3 left!

0

19

Echo C536000170

CUSHION

$4.99

$

Usually ships in 2-4 days

0

20

Echo V303000240

WASHER - 5

$0.99

$

In Stock, only 4 left!

0

21

Echo V805000110

SCREW - 5

$1.49

$

Usually ships in 2-4 days

0

22

Echo 90060200005

WASHER - 5
(Superseded to 90060300005)

$0.99

$

In Stock, Qty 20+

0

23

Echo A556001430

DRUM, CLUTCH

$45.99

$

In Stock, only 1 left!

0
