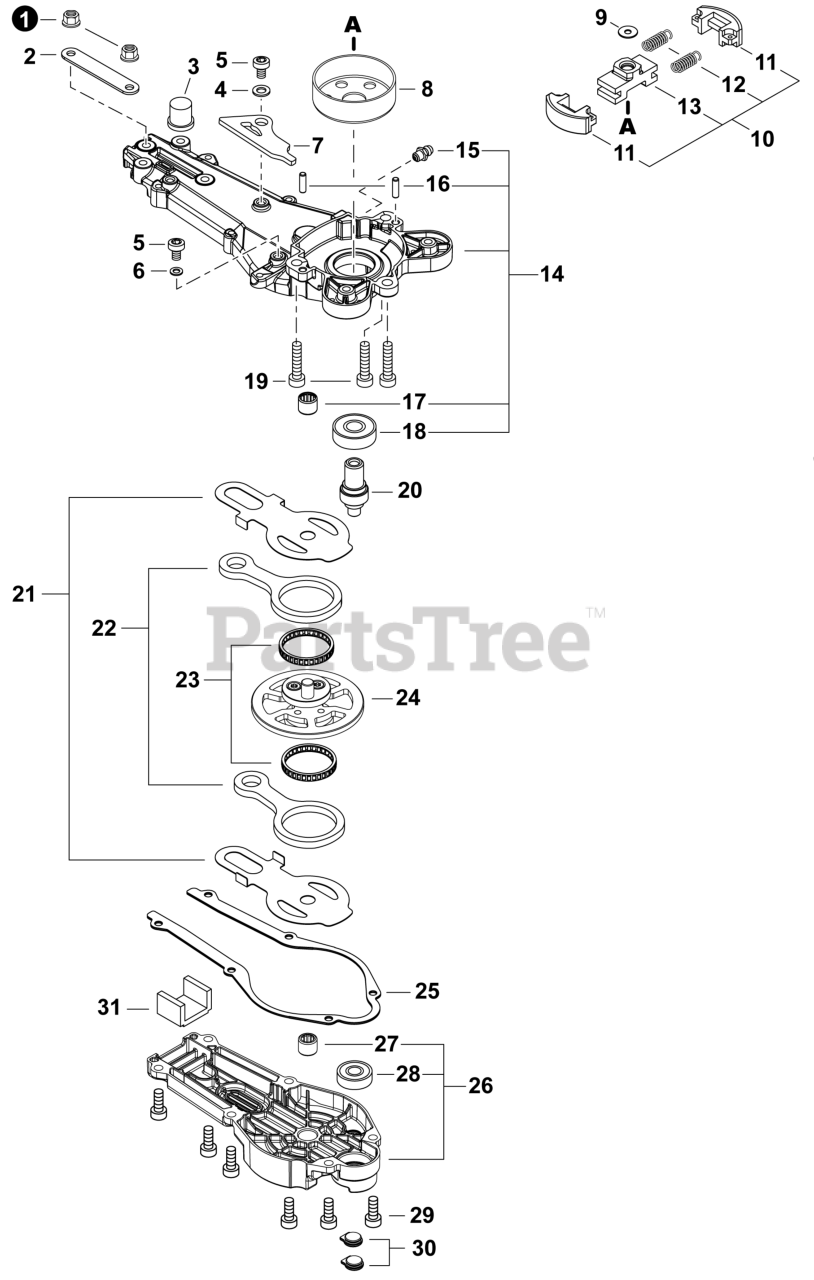

DH 232 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: U72115001001 - U72115999999) GEAR CASE Parts Diagram

Hedge Trimmer, Dual-Sided

GEAR CASE Parts Diagram

  • Title

1

Echo V263000250

NUT, FLANGE M5

$1.99

$

In Stock, Qty 20+

0

2

Echo V150003700

PLATE, EYE

$1.99

$

In Stock, Qty 15

0

3

Echo V494000690

CAP

$3.49

$

Usually ships in 2-4 days

0

4

Echo V303000240

WASHER 5

$1.49

$

In Stock, only 2 left!

0

5

Echo V805000110

BOLT, TORX 5x6

$1.99

$

Usually ships in 2-4 days

0

6

Echo 90060300005

WASHER 5.5x12x0.8

$0.99

$

In Stock, Qty 20+

0

7

Echo C536000170

CUSHION

$5.99

$

Usually ships in 2-4 days

0

8

Echo A556001430

DRUM, CLUTCH

$50.99

$

In Stock, only 2 left!

0

9

Echo 61035012360

WASHER 8

$2.49

$

In Stock, only 1 left!

0

10

Echo A056000700

CLUTCH ASSY

Note: Includes Items 11-13

$51.99

$

Usually ships in 2-4 days

0

11

Echo 17501744331

SHOE, CLUTCH

$14.99

$

Usually ships in 2-4 days

0

12

Echo A566000000

SPRING, CLUTCH

$1.99

$

In Stock, Qty 12

0

13

Echo 17501652130

HUB, CLUTCH

$19.99

$

Usually ships in 2-4 days

0

14

Echo P021041563

HOUSING ASSY, GEAR CASE

Note: Includes Items 15-18

$94.99

$

Usually ships in 2-4 days

0

15

Echo V187000080

FITTING, GREASE

$1.99

$

In Stock, Qty 5

0

16

Echo 90033040100

PIN, LOCATING 4x10

$0.99

$

Usually ships in 2-4 days

0

17

Echo V553000110

BEARING, NEEDLE 8

$7.49

$

In Stock, only 1 left!

0

18

Echo 9404206001

BEARING, BALL

$10.99

$

In Stock, only 2 left!

0

19

Echo V806000050

BOLT, TORX 6x20

$0.99

$

In Stock, Qty 15

0

20

Echo V655000070

SHAFT, PINION

$20.99

$

In Stock, only 2 left!

0

21

Echo C603000260

PLATE, SIDE

$5.49

$

In Stock, only 2 left!

0

22

Echo C532000200

CONROD

$40.99

$

In Stock, only 2 left!

0

23

Echo V572000000

BEARING, NEEDLE 30

$16.99

$

In Stock, only 2 left!

0

24

Echo V060000072

GEAR, SPUR

$127.99

$

Usually ships in 2-4 days

0

25

Echo V110000190

GASKET, GEAR CASE

$10.99

$

In Stock, only 4 left!

0

26

Echo P021034241

COVER ASSY, GEAR CASE

Note: Includes Items 27-28

$79.99

$

In Stock, Qty 5

0

27

Echo V553000110

BEARING, NEEDLE 8

$7.49

$

In Stock, only 1 left!

0

28

Echo 90080400608

BEARING, BALL 608ZZ

$14.99

$

In Stock, only 2 left!

0

29

Echo V805000150

BOLT, TORX 5x16

$0.99

$

In Stock, Qty 20+

0

30

Echo V162000390

PLUG

$3.49

$

Usually ships in 2-4 days

0

31

Echo V541000200

PACKING, FELT

$3.99

$

Usually ships in 2-4 days

0
