DH 235 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T29313001001 - T29313999999) CUTTER Parts Diagram

Hedge Trimmer, Dual-Sided

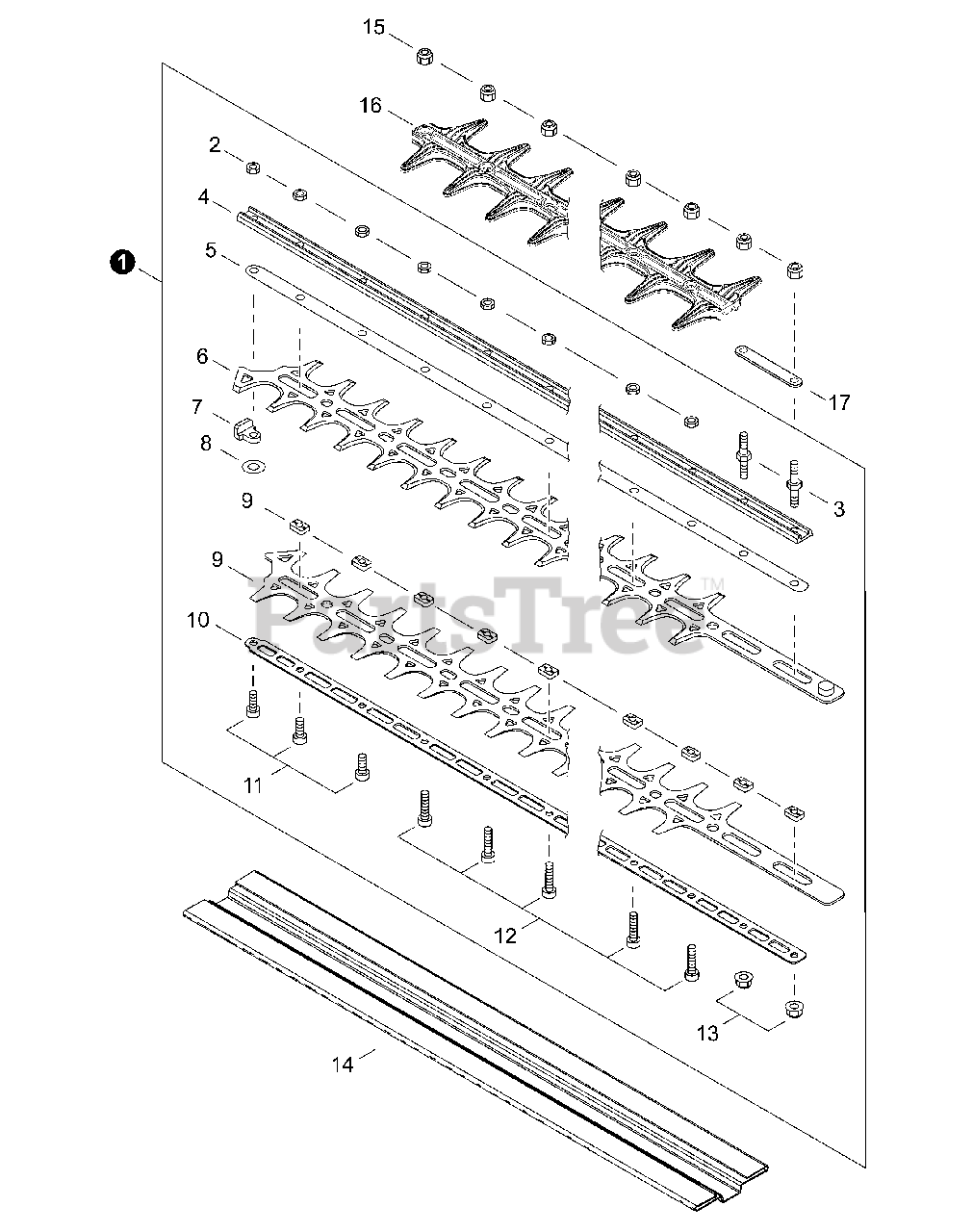

CUTTER Parts Diagram

  • Title

1

Echo X041000470

CUTTER ASSY, 30"
(Superseded to X041000780)

Note: Includes Items 2-13

$252.99

$

In Stock, only 2 left!

0

2

Echo 9202205000

NUT

$0.99

$

In Stock, Qty 20+

0

3

Echo V223000020

STUD, MOUNTING M5

$1.99

$

In Stock, Qty 20+

0

4

Echo X425000540

SUPPORT, CUTTER 30"

$68.99

$

In Stock, only 2 left!

0

5

Echo X425000550

SUPPORT, CUTTER 30"

$23.99

$

In Stock, only 3 left!

0

6

Echo X411001280

CUTTER 30"
(Superseded to X412000800)

$96.99

$

In Stock, only 2 left!

0

7

Echo V376001380

SPACER

$12.99

$

In Stock, Qty 5

0

8

Echo 9221705000

WASHER

$1.49

$

In Stock, Qty 16

0

9

Echo V376001390

SPACER

$3.99

$

In Stock, only 1 left!

0

10

Echo X425000880

SUPPORT, CUTTER 30"

$31.99

$

In Stock, only 2 left!

0

11

Echo V805000150

BOLT, TORX 5×16

$0.99

$

In Stock, Qty 20+

0

12

Echo V805000170

BOLT, TORX 5×25

$0.99

$

In Stock, Qty 20+

0

13

Echo V263000250

NUT M5

$1.99

$

In Stock, Qty 20+

0

14

Echo X495000530

SCABBARD

$12.99

$

In Stock, only 2 left!

0

15

Echo V263000250

NUT M5

$1.99

$

In Stock, Qty 20+

0

16

Echo X431000100

STIFFENER, BLADE

$13.99

$

In Stock, only 2 left!

0

17

Echo V150003700

PLATE, EYE

$1.99

$

In Stock, Qty 10

0
