DH 2510 - Shindaiwa Hedge Trimmer, Dual-Sided Gear Case Parts Diagram

Hedge Trimmer, Dual-Sided

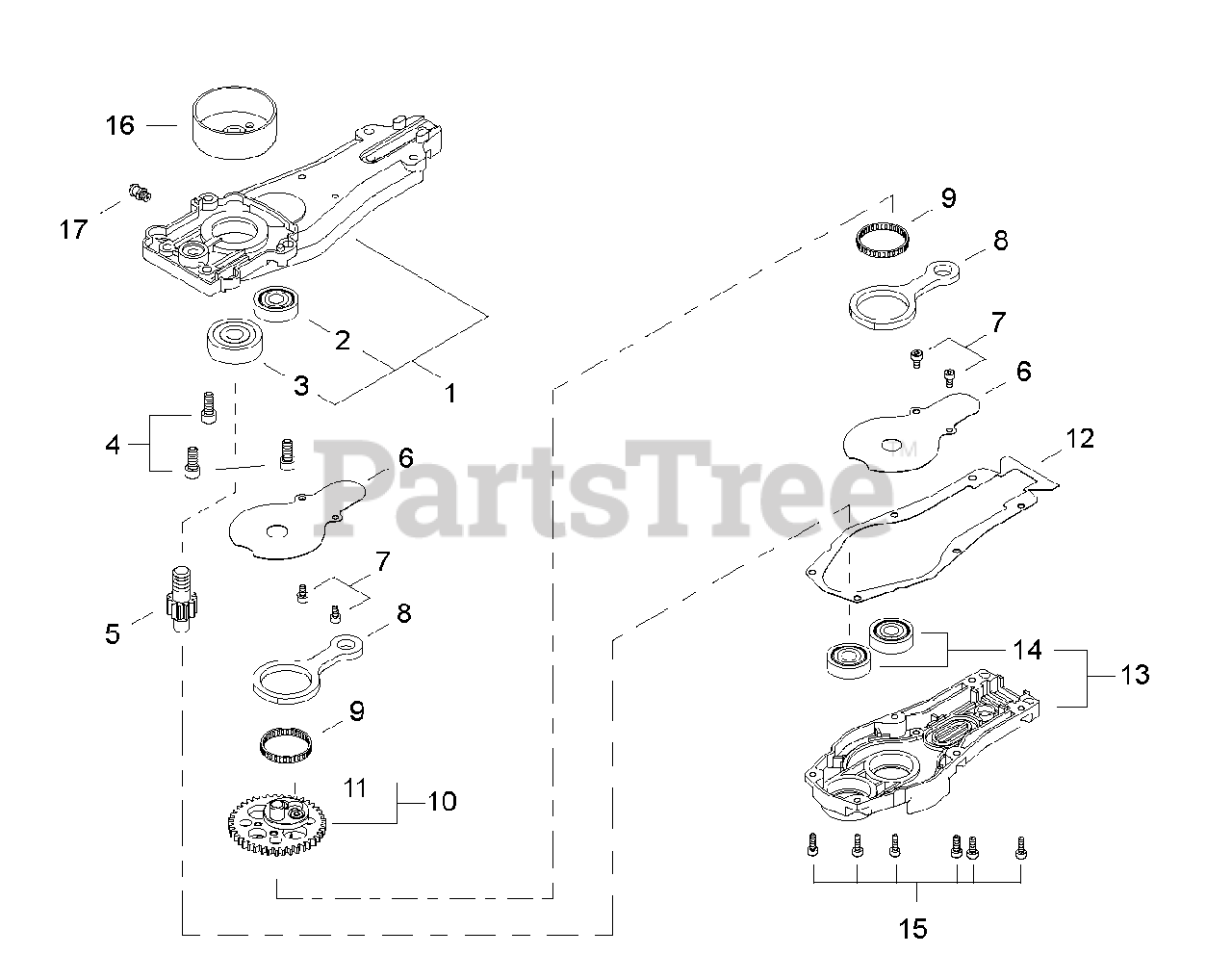

Gear Case Parts Diagram

  • Title

1

Echo 63600-61010

GEAR CASE ASSY
(Superseded to P021028700)

$114.99

$

Usually ships in 2-4 days

0

2

Echo 02002-06200

BEARING, BALL - 6200ZZ
(Superseded to 9404506200)

$11.99

$

Usually ships in 2-4 days

0

3

Echo 02006-06301

BEARING, BALL - 6301DDU
(Superseded to 9400206301)

$15.99

$

Usually ships in 2-4 days

0

4

Echo 01020-06160

SCREW - 6X16
(Superseded to 90010506016)

$1.49

$

In Stock, Qty 8

0

5

Echo 63600-61150

GEAR - PINION
(Superseded to V655000030)

$32.99

$

Usually ships in 2-4 days

0

6

Echo 63600-61340

PLATE, GEAR CASE
(Superseded to C603000250)

$5.49

$

In Stock, only 1 left!

0

7

Echo 01020-04080

SCREW - 4X8
(Superseded to 90010504008)

$0.99

$

In Stock, Qty 6

0

8

Echo 63600-61170

ROD, CONNECTING
(Superseded to C532000200)

$40.99

$

In Stock, only 2 left!

0

9

Echo 63600-61330

BEARING, NEEDLE - 30
(Superseded to V572000000)

$16.99

$

In Stock, only 2 left!

0

10

Echo 63600-61030

CAM GEAR ASSY
(Superseded to V060000060)

$89.99

$

Usually ships in 2-4 days

0

11

Echo 63600-61320

GEAR - SPUR
(Superseded to V203001030)

$1.49

$

In Stock, Qty 16

0

12

Echo 63600-61360

GASKET, GEAR CASE
(Superseded to V110000100)

$4.99

$

Usually ships in 2-4 days

0

13

Echo 63600-61020

GEAR CASE COVER ASSY
(Superseded to P021028710)

$71.99

$

Usually ships in 2-4 days

0

14

Echo 02002-06200

BEARING, BALL - 6200ZZ
(Superseded to 9404506200)

$11.99

$

Usually ships in 2-4 days

0

15

Echo 01020-04140

SCREW - 4X14
(Superseded to 90010504014)

$1.49

$

In Stock, Qty 20+

0

16

Echo 20870-61420

DRUM, CLUTCH
(Superseded to A556000930)

$24.99

$

Usually ships in 2-4 days

0

17

Echo 20870-61640

FITTING, GREASE
(Superseded to V187000080)

$1.99

$

In Stock, only 4 left!

0
