DH 2510 - Shindaiwa Hedge Trimmer, Dual-Sided Piston / Crankshaft / Clutch Parts Diagram

Hedge Trimmer, Dual-Sided

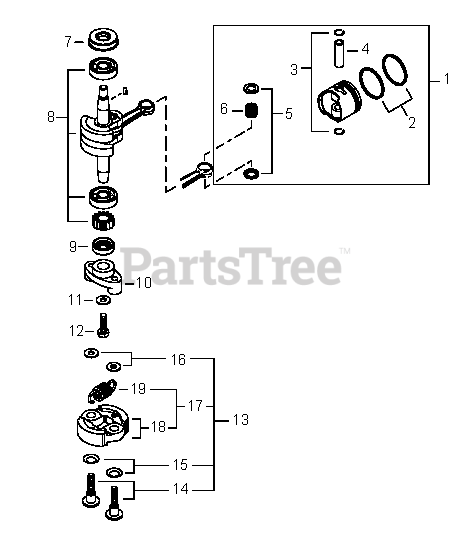

Piston / Crankshaft / Clutch Parts Diagram

  • Title

1

Echo 62902-41310

PISTON KIT
(Superseded to P021033930)

$67.99

$

Usually ships in 2-4 days

0

2

Echo 62902-41120

RING, PISTON
(Superseded to A101000390)

$4.99

$

Usually ships in 2-4 days

0

3

Echo 20000-41320

RING, RETAINING
(Superseded to V580000090)

$5.99

$

In Stock, only 2 left!

0

4

Echo 62901-41210

PIN, PISTON
(Superseded to V607000040)

$4.99

$

Usually ships in 2-4 days

0

5

Echo 37019-41240

WASHER, THRUST 9
(Superseded to V392000020)

$2.99

$

In Stock, Qty 10

0

6

Echo 62901-41230

BEARING, NEEDLE
(Superseded to V554000010)

$7.49

$

In Stock, only 2 left!

0

7

Echo 62901-42270

SEAL, OIL - 12
(Superseded to V505000120)

$28.99

$

Usually ships in 2-4 days

0

8

Echo 62600-42020

CRANKSHAFT ASSY
(Superseded to A011000900)

$128.99

$

Usually ships in 2-4 days

0

9

Echo 62901-42260

SEAL, OIL - 12
(Superseded to V505000020)

$6.99

$

In Stock, Qty 20+

0

10

Echo 20870-51211

HUB, CLUTCH
(Superseded to A552000130)

$9.49

$

Usually ships in 2-4 days

0

11

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$1.49

$

In Stock, only 2 left!

0

12

Echo 20870-51220

SCREW - 6X18
(Superseded to V204000480)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 62600-51010

CLUTCH KIT
(Superseded to A056000470)

$51.99

$

Usually ships in 2-4 days

0

14

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

In Stock, only 2 left!

0

15

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$1.49

$

In Stock, only 2 left!

0

16

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$1.49

$

In Stock, only 2 left!

0

17

Echo 62600-51020

CLUTCH SHOE ASSY
(Superseded to A056000480)

$29.99

$

Usually ships in 2-4 days

0

18

Echo 20115-51111

SHOE, CLUTCH
(Superseded to A553000100)

$18.99

$

Usually ships in 2-4 days

0

19

Echo 62600-51310

SPRING, CLUTCH
(Superseded to A566000170)

$2.99

$

Usually ships in 2-4 days

0
