DH 2510 - Shindaiwa Hedge Trimmer, Dual-Sided Valve Train Parts Diagram

Hedge Trimmer, Dual-Sided

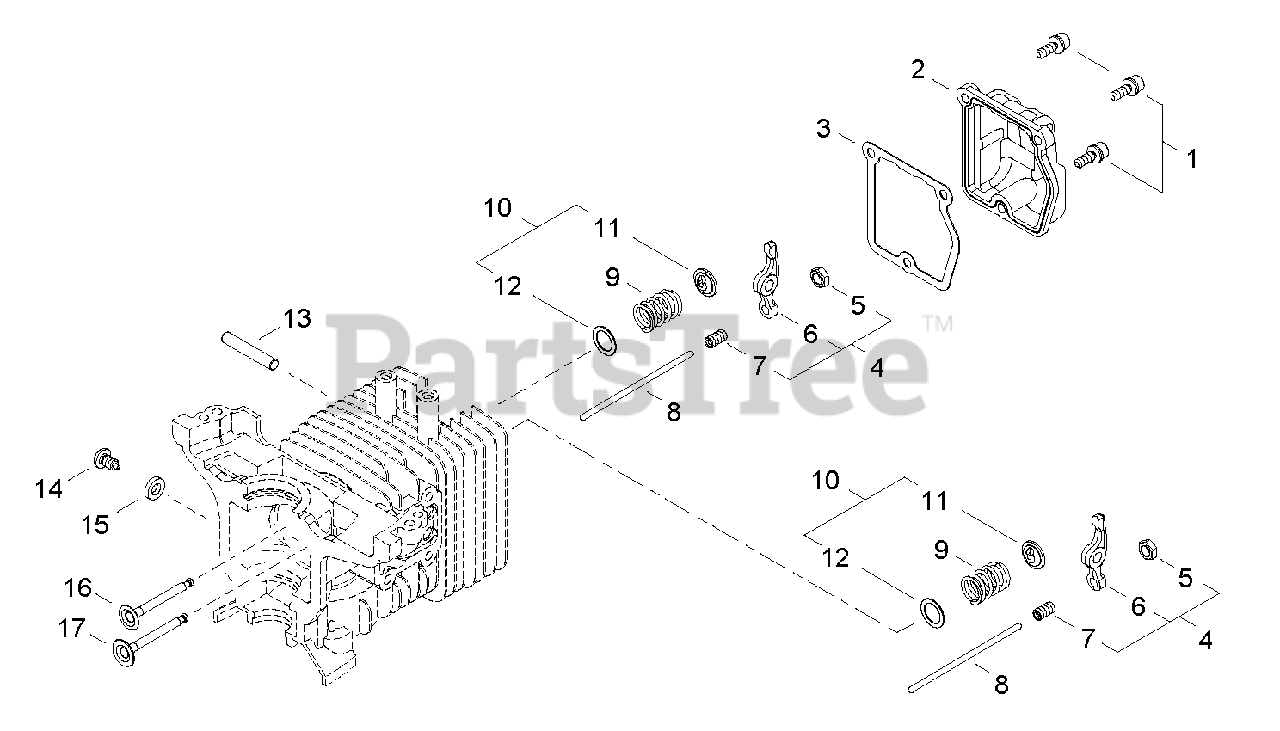

Valve Train Parts Diagram

  • Title

1

Echo Part# 11022-04140

SCREW - 4X14
(Superseded to V202000350)
Usually ships in 1 day

$

$0.75

0

2

Echo Part# 62901-44241

COVER, ROCKER ARM
(Superseded to A137000020)
Usually ships in 1 day

$

$6.40

0

3

Echo Part# 62901-44250

GASKET
(Superseded to V109000120)
Usually ships in 1 day

$

$1.38

0

4

Echo Part# 62907-44010

ROCKER ARM ASSY
(Superseded to A610000050)
Usually ships in 5 to 10 days

$

$25.59

0

5

Echo Part# 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)
Usually ships in 5 to 10 days

$

$0.75

0

6

Echo Part# 62901-44210

ARM, ROCKER
(Superseded to A610000060)
Usually ships in 5 to 10 days

$

$23.14

0

7

Echo Part# 62907-44220

SCREW, ADJUST
(Superseded to A613000010)
Usually ships in 5 to 10 days

$

$2.12

0

8

Echo Part# 62908-43220

PUSHROD
(Superseded to A607000011)
Usually ships in 1 day

$

$1.38

0

9

Echo Part# 62901-44130

SPRING, VALVE
(Superseded to A604000010)
Usually ships in 1 day

$

$1.38

0

10

Echo Part# 60908-98370

VALVE RETAINER ASSY
(Superseded to P021027590)
Usually ships in 5 to 10 days

$

$15.43

0

11

Echo Part# 62908-44140

RETAINER, VALVE
(Superseded to A606000040)
Usually ships in 1 day

$

$6.40

0

12

Echo Part# 62908-44310

WASHER, VALVE 9
(Superseded to V392000030)
Usually ships in 1 day

$

$0.75

0

13

Echo Part# 12492-50310

SHAFT, ROCKER ARM - 5X31.8
(Superseded to V623000040)
Usually ships in 5 to 10 days

$

$1.25

0

14

Echo Part# 62901-43310

SCREW - 5
(Superseded to V253000540)
Usually ships in 5 to 10 days

$

$0.75

0

15

Echo Part# 15401-10028

WASHER
(Superseded to V303000120)
Usually ships in 5 to 10 days

$

$0.75

0

16

Echo Part# 62902-44121

VALVE, EXHAUST
(Superseded to A603000050)
Usually ships in 1 day

$

$16.31

0

17

Echo Part# 62902-44111

VALVE, INTAKE
(Superseded to A603000040)
Usually ships in 1 day

$

$12.61

0

Part# ------------------

BEFORE SERIAL NUMBER 4092242 / ANTES DE NUMERO DE SERIE 4092242
Usually ships same day

Not available

$

$

4

Echo Part# 62901-44011

ROCKER ARM ASSY
Usually ships in 5 to 10 days

$

$21.71

0

5

Echo Part# 62901-44231

LOCKNUT, ADJUSTER
(Superseded to V263000230)
Usually ships in 5 to 10 days

$

$0.75

0

6

Echo Part# 62901-44210

ARM, ROCKER
(Superseded to A610000060)
Usually ships in 5 to 10 days

$

$23.14

0

7

Echo Part# 62901-44220

SCREW, ADJUST
(Superseded to P021037350)
Usually ships same day

Not available

$

$

8

Echo Part# 62901-43220

PUSHROD
Usually ships same day

Not available

$

$
