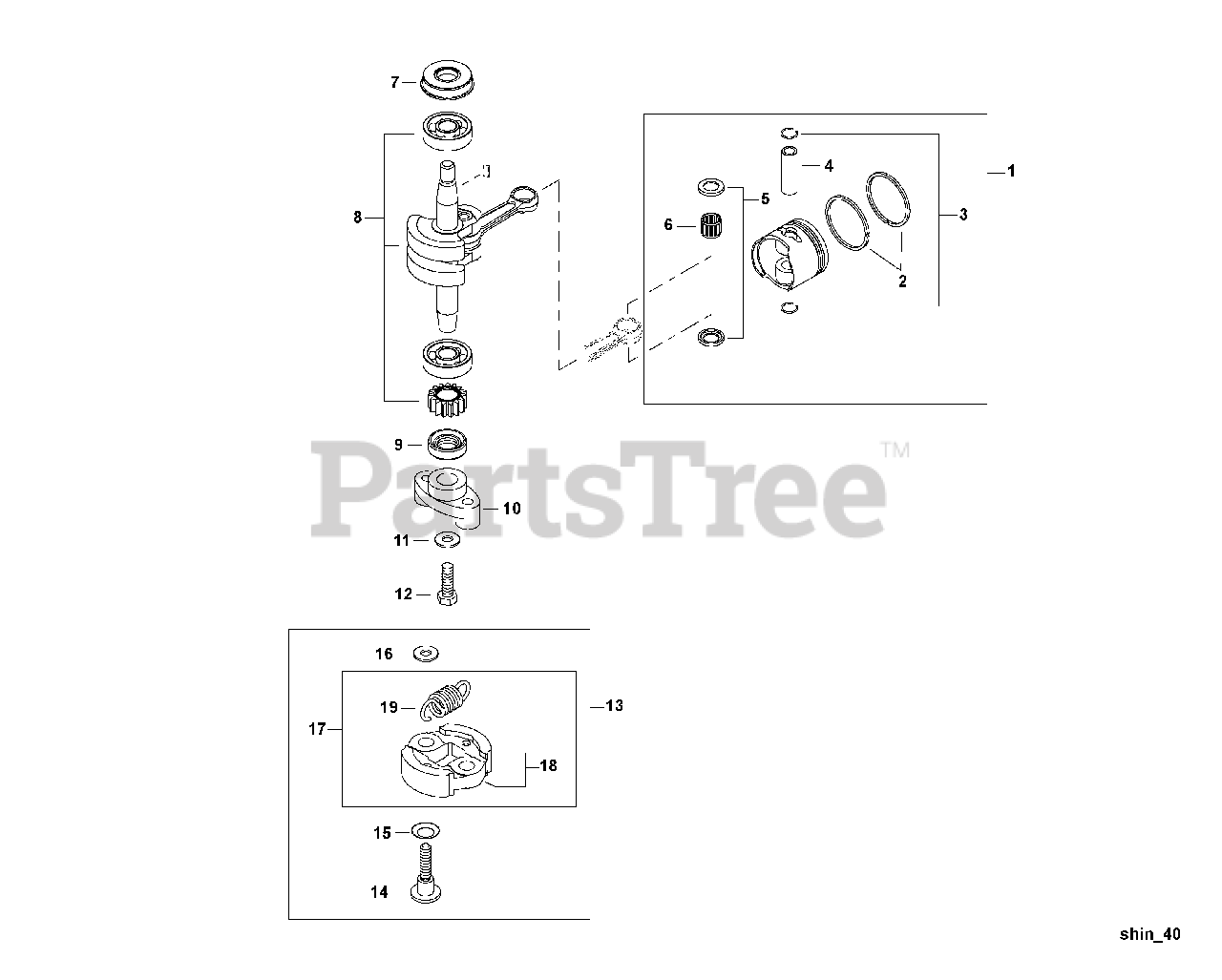

DH 254 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T11712001001 - T11712999999) Piston, Clutch Parts Diagram

Hedge Trimmer, Dual-Sided

Piston, Clutch Parts Diagram

  • Title

1

Echo P021033930

PISTON KIT

Note: INCLUDES ITEMS 2-6

$73.99

$

Usually ships in 2-4 days

0

2

Echo A101000390

RING, PISTON

$5.49

$

Usually ships in 2-4 days

0

3

Echo V580000090

RING, RETAINING

$6.49

$

In Stock, only 2 left!

0

4

Echo V607000040

PIN, PISTON

$4.99

$

Usually ships in 2-4 days

0

5

Echo V392000020

SPACER - 9

$2.99

$

In Stock, Qty 8

0

6

Echo V554000010

BEARING, NEEDLE

$7.99

$

In Stock, only 1 left!

0

7

Echo V505000120

SEAL, OIL

$31.99

$

Usually ships in 2-4 days

0

8

Echo A011000900

CRANKSHAFT ASSY

$138.99

$

Usually ships in 2-4 days

0

9

Echo V505000020

SEAL, OIL - 12

$7.99

$

In Stock, Qty 16

0

10

Echo A552000130

HUB, CLUTCH

$10.99

$

Usually ships in 2-4 days

0

11

Echo V304000150

WASHER - 6

$1.49

$

In Stock, Qty 6

0

12

Echo V204000480

SCREW - 6X18

$1.99

$

In Stock, only 1 left!

0

13

Echo A056000470

CLUTCH ASSY

$55.99

$

Usually ships in 2-4 days

0

14

Echo A557000040

BOLT, CLUTCH

Note: Includes ITEMS 14-19

$3.49

$

In Stock, only 2 left!

0

15

Echo V346000040

WASHER - SPRING

$1.49

$

In Stock, only 2 left!

0

16

Echo V304000150

WASHER - 6

$1.49

$

In Stock, Qty 6

0

17

Echo A056000480

CLUTCH ASSY

Note: INCLUDES ITEMS 18-19

$31.99

$

Usually ships in 2-4 days

0

18

Echo A553000100

SHOE, CLUTCH

$19.99

$

Usually ships in 2-4 days

0

19

Echo A566000170

SPRING, CLUTCH

$2.99

$

In Stock, only 1 left!

0
