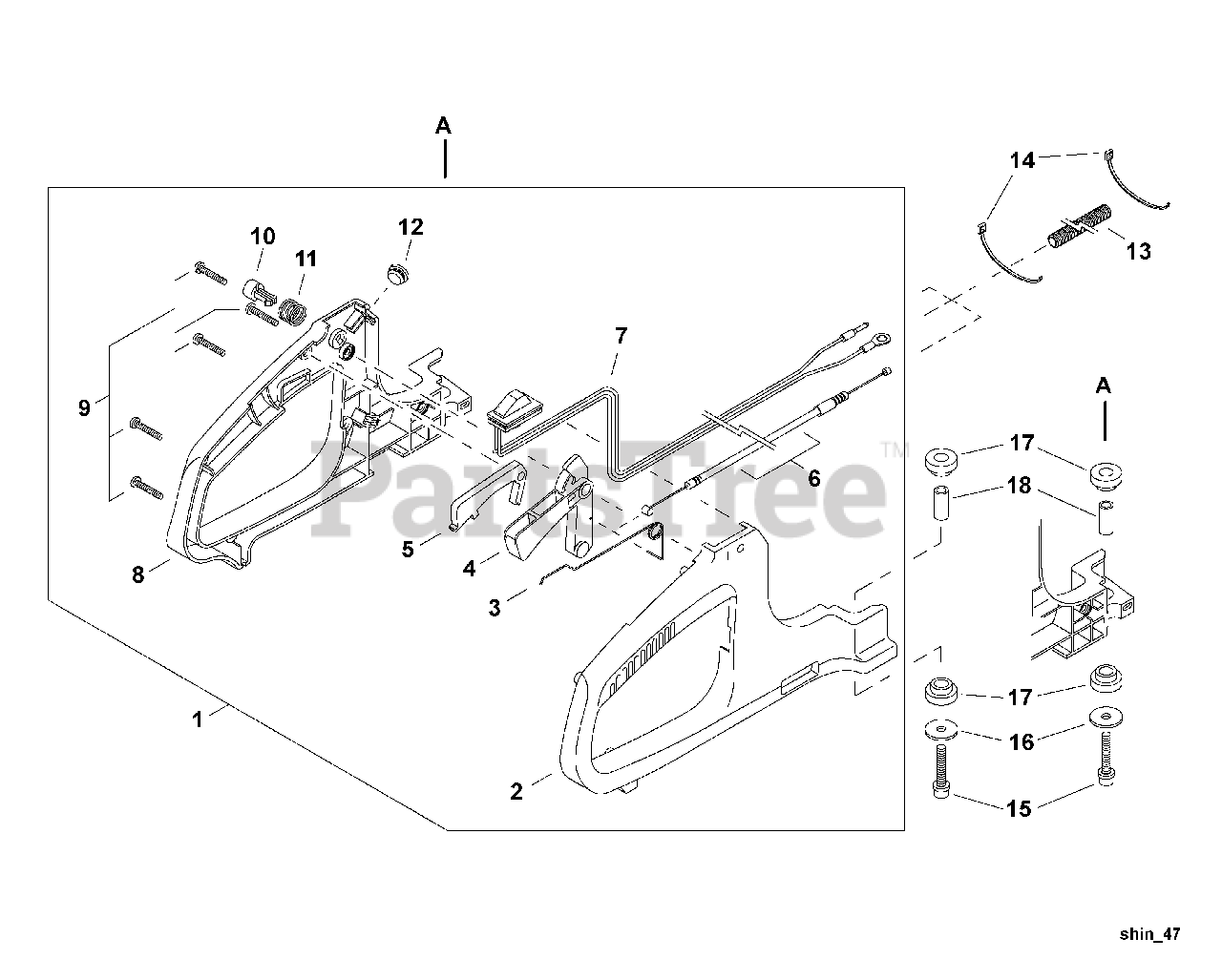

DH 254 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T11811001001 - T11811999999) Throttle Control, Rear Handle Parts Diagram

Hedge Trimmer, Dual-Sided

Throttle Control, Rear Handle Parts Diagram

  • Title

1

Echo C041000550

HANDLE ASSY, REAR

Note: INCLUDES ITEMS 2-12

$110.99

$

Usually ships in 2-4 days

0

2

Echo C410000680

CONTROL HANDLE - RIGHT

$26.99

$

Usually ships in 2-4 days

0

3

Echo V452000680

SPRING, THROTTLE RETURN

$1.49

$

Usually ships in 2-4 days

0

4

Echo C450000570

TRIGGER, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

5

Echo C460000230

LEVER, THROTTLE LOCKOUT

$3.99

$

Usually ships in 2-4 days

0

6

Echo V430003430

CABLE, THROTTLE

$14.99

$

Usually ships in 2-4 days

0

7

Echo A440001520

SWITCH, ON-OFF

$26.99

$

Usually ships in 2-4 days

0

8

Echo C410000690

CONTROL HANDLE - LEFT

$26.99

$

Usually ships in 2-4 days

0

9

Echo V252000340

SCREW, TAPPING Ø4×18

$1.49

$

Usually ships in 2-4 days

0

10

Echo C461000080

BUTTON, THROTTLE LOCK

$2.49

$

Usually ships in 2-4 days

0

11

Echo V450001010

SPRING, COMPRESSION

$1.49

$

In Stock, only 3 left!

0

12

Echo V162000410

PLUG, RUBBER

$2.99

$

In Stock, only 2 left!

0

13

Echo V475005080

TUBE, FLEXIBLE L= 150

$1.99

$

Usually ships in 2-4 days

0

14

Echo V495002400

STRAP, TIE

$1.49

$

Usually ships in 2-4 days

0

15

Echo V204000530

BOLT M6×35
(Superseded to 9112206035)

$1.99

$

In Stock, Qty 12

0

16

Echo V304000320

WASHER Ø23×Ø6.5×2 MM

$1.49

$

Usually ships in 2-4 days

0

17

Echo V420002580

CUSHION

$1.49

$

In Stock, only 2 left!

0

18

Echo V354000300

COLLAR 6

$1.99

$

In Stock, only 4 left!

0
