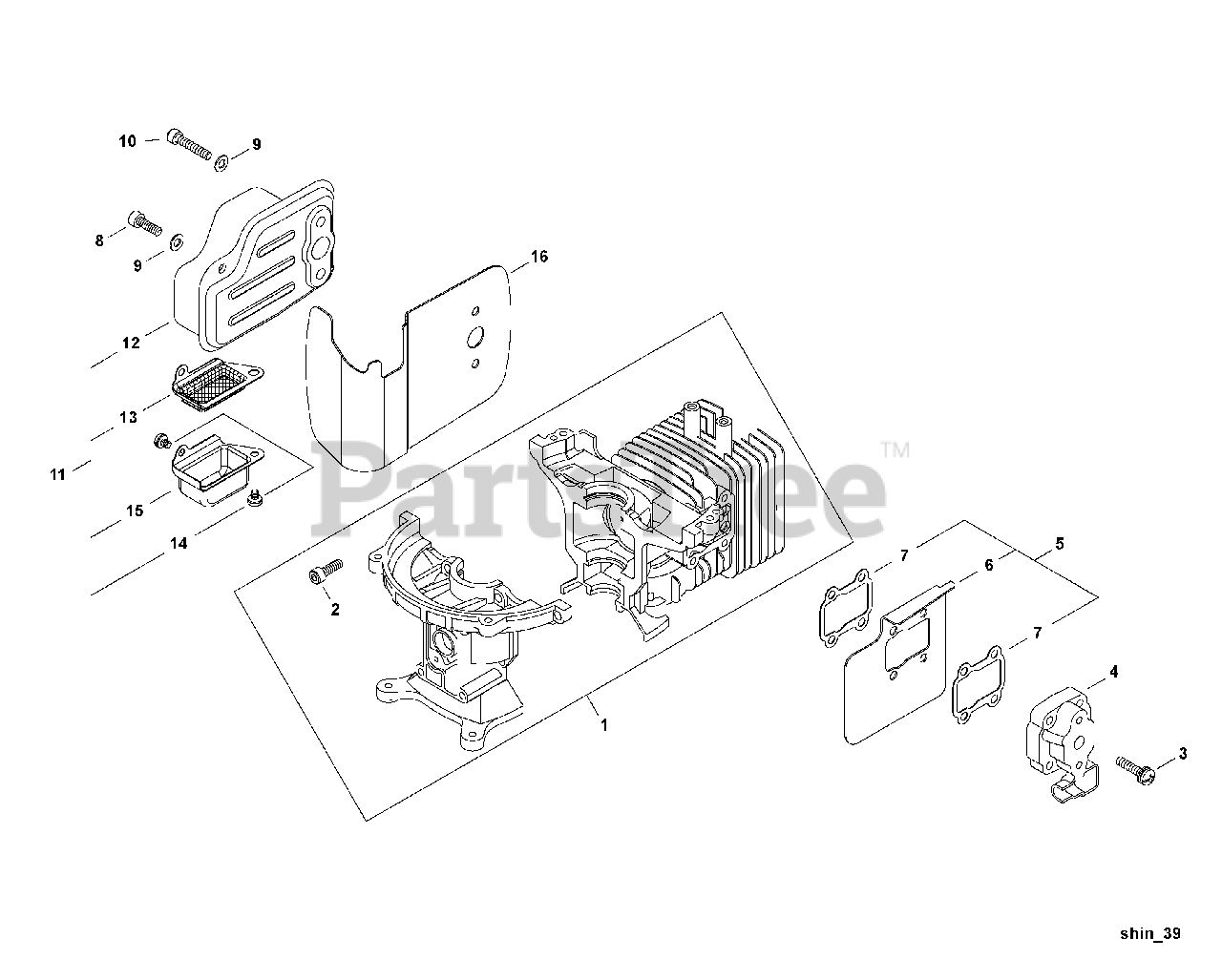

DH 254 - Shindaiwa Hedge Trimmer, Dual-Sided (SN: T11913001001 - T11913999999) Cylinder, Exhaust, Intake Parts Diagram

Hedge Trimmer, Dual-Sided

Cylinder, Exhaust, Intake Parts Diagram

  • Title

1

Echo P021027390

CYLINDER & CRANKCASE ASSY
(Superseded to P021027391)

Note: Includes ITEM 2

$219.99

$

Usually ships in 2-4 days

0

2

Echo 90010505016

BOLT 5×16

$1.49

$

Usually ships in 2-4 days

0

3

Echo 9158205022

SCREW M5×22

$1.49

$

Usually ships in 2-4 days

0

4

Echo A024000050

INSULATOR WITH REED VALVE

$51.99

$

Usually ships in 2-4 days

0

5

Echo A209000250

SHIELD ASSY, INTAKE HEAT

Note: Includes ITEMS 6-7

$6.99

$

Usually ships in 2-4 days

0

6

Echo A209000260

HEAT SHIELD, INTAKE

$6.49

$

Usually ships in 2-4 days

0

7

Echo V103001130

GASKET, EXHAUST

$1.99

$

In Stock, Qty 8

0

8

Echo 90010505016

BOLT 5×16

$1.49

$

Usually ships in 2-4 days

0

9

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo V203001000

BOLT M5×25

$1.99

$

Usually ships in 2-4 days

0

11

Echo A030000291

MUFFLER ASSY
(Superseded to A030000342)

Note: Includes ITEMS 12-15

$113.99

$

Usually ships in 2-4 days

0

12

Echo A300001251

MUFFLER

$103.99

$

Usually ships in 2-4 days

0

13

Echo A310000390

SCREEN, SPARK ARRESTER

$3.99

$

Usually ships in 2-4 days

0

14

Echo 9157204006

SCREW M4×6

$1.49

$

Usually ships in 2-4 days

0

15

Echo A313001341

GUIDE, EXHAUST
(Superseded to A313001391)

$8.49

$

Usually ships in 2-4 days

0

16

Echo V104001431

HEAT SHIELD, EXHAUST

$10.99

$

Usually ships in 2-4 days

0
