DHC-2200 - Echo Hedge Trimmer, Battery (SN: E81000001001 - E81000999999) Cutter Parts Diagram

Hedge Trimmer, Battery

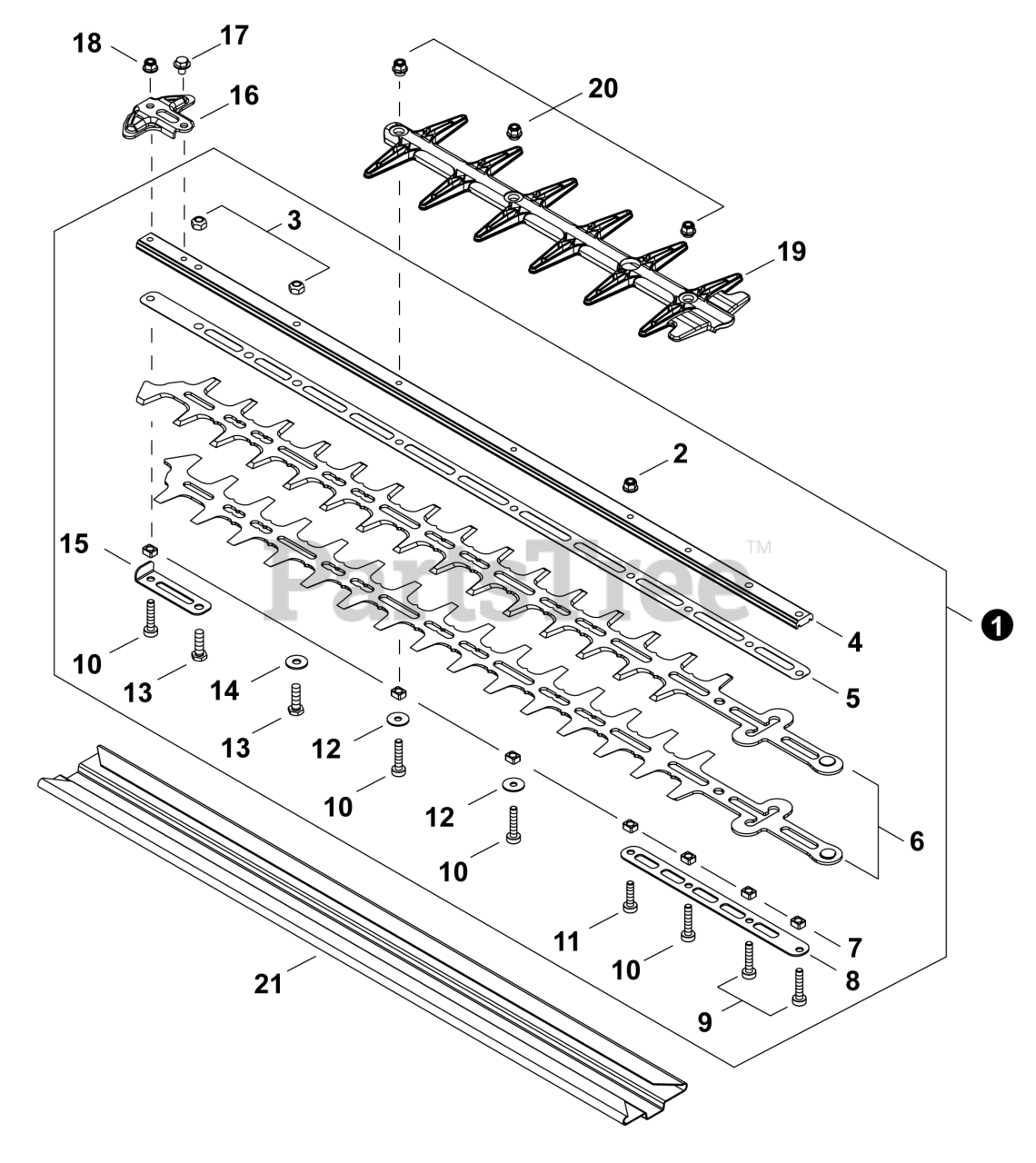

Cutter Parts Diagram

  • Title

1

Echo X041000810

CUTTER ASSY, 24"

Note: Includes Items 2-15

$144.99

$

Usually ships in 0 days

0

2

Echo 9210805000

NUT, FLANGE M5

$1.49

$

Usually ships in 2-4 days

0

3

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

4

Echo X425001210

SUPPORT, CUTTER 24"

$40.99

$

Usually ships in 0 days

0

5

Echo X425001220

PLATE, CUTTER 24"

$32.99

$

Usually ships in 0 days

0

6

Echo X411001400

CUTTER 24"

$61.99

$

Usually ships in 0 days

0

7

Echo V376002940

GUIDE, BLADE

$1.99

$

Usually ships in 0 days

0

8

Echo X425001230

PLATE, CUTTER

$2.99

$

Usually ships in 0 days

0

9

Echo V805000220

BOLT, TORX 5x25

$1.99

$

In Stock, Qty 5

0

10

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 16

0

11

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

12

Echo V303000290

WASHER

$0.99

$

In Stock, Qty 20+

0

13

Echo V204000570

BOLT M6x20

$1.99

$

In Stock, Qty 20+

0

14

Echo V304000240

WASHER M6

$1.49

$

In Stock, Qty 20+

0

15

Echo X425001240

PLATE, EYE

$3.49

$

Usually ships in 0 days

0

16

Echo E278000390

GUARD, TIP

$9.99

$

Usually ships in 0 days

0

17

Echo V203002630

BOLT 5

$0.99

$

Usually ships in 0 days

0

18

Echo 9210805000

NUT, FLANGE M5

$1.49

$

Usually ships in 2-4 days

0

19

Echo X431000280

GUARD, CUTTER BLADE

$6.99

$

Usually ships in 0 days

0

20

Echo 9210805000

NUT, FLANGE M5

$1.49

$

Usually ships in 2-4 days

0

21

Echo X495001080

SCABBARD

$10.99

$

Usually ships in 0 days

0
