DHC-3000 - Echo Hedge Trimmer, Battery Battery, Handle, Wire Harness Parts Diagram

Hedge Trimmer, Battery

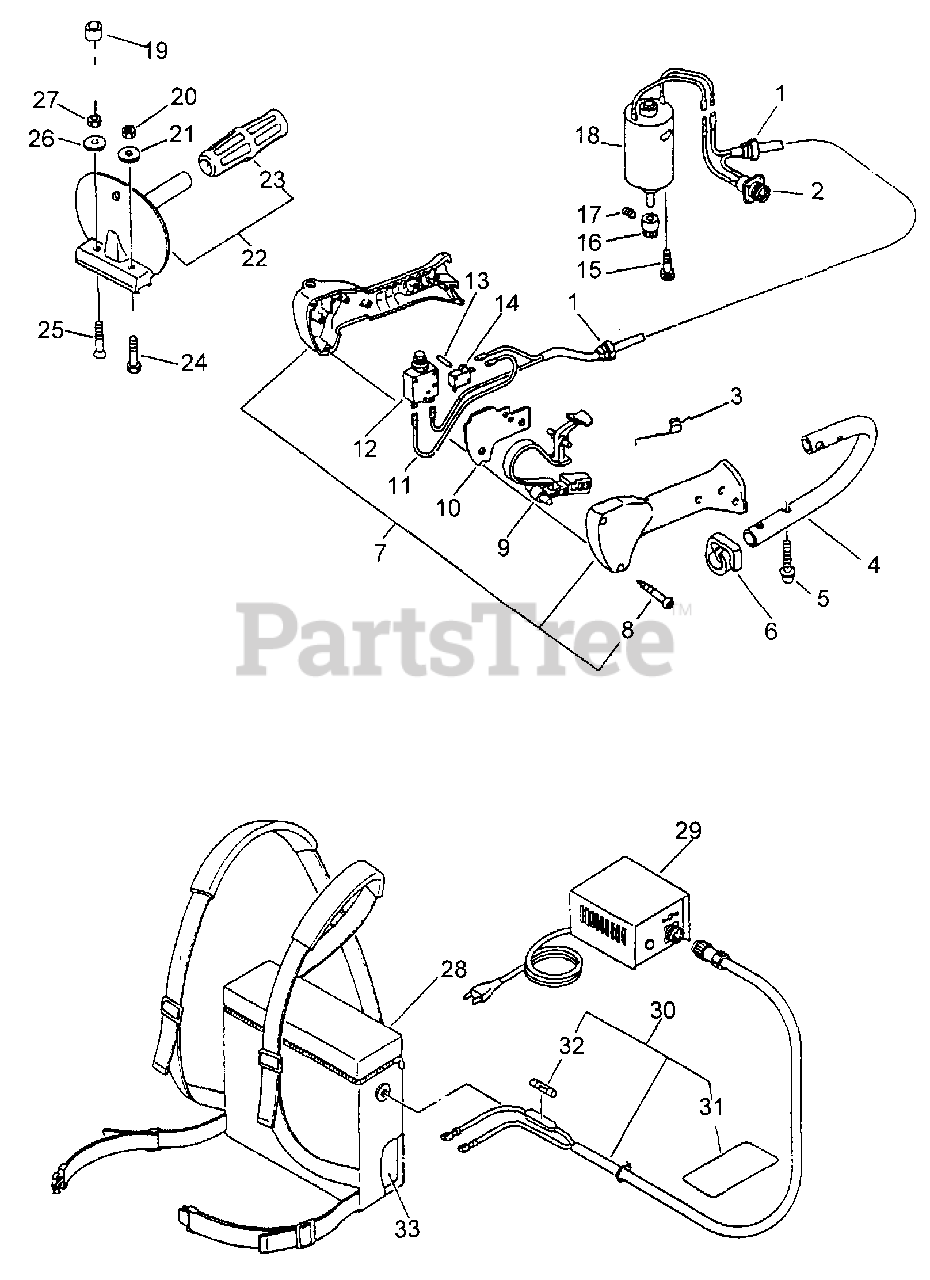

Battery, Handle, Wire Harness Parts Diagram

  • Title

1

Echo 16391509960

GROMMET, CABLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 16208309960

HARNESS, WIRE
(Superseded to Discontinued)

$

$

Not available

3

Echo 16331109960

SPRING
(Superseded to Discontinued)

$

$

Not available

4

Echo 35121009960

HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

5

Echo 900238-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

6

Echo 15911209961

CLIP

$4.99

$

Usually ships in 2-4 days

0

7

Echo 35110209960

GRIP, HANDLE
(Superseded to Discontinued)

Note: Includes ITEM 8

$

$

Not available

8

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801009960

TRIGGER, THROTTLE
(Superseded to 17801009961)

$

$

Not available

10

Echo 16392509960

PLATE, PARTITION
(Superseded to Discontinued)

$

$

Not available

11

Echo 16201009960

LEAD - GROUND
(Superseded to 16201009961)

$

$

Not available

12

Echo 16392009960

PROTECTOR, CIRCUIT
(Superseded to Discontinued)

$

$

Not available

13

Echo 10092409960

PIN, STRAIGHT
(Superseded to Discontinued)

$

$

Not available

14

Echo 16340020060

IGNITION SWITCH ASSY

$

$

Not available

15

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

16

Echo 61031209960

GEAR, SPUR
(Superseded to Discontinued)

$

$

Not available

17

Echo 90017104005

SCREW SET 4×5

$1.49

$

Usually ships in 2-4 days

0

18

Echo 16100020060

MOTOR ASSY

$149.99

$

Usually ships in 2-4 days

0

19

Echo 35161720060

INSERT
(Superseded to Discontinued)

$

$

Not available

20

Echo 90056000006

NUT, LOCK 6

$1.49

$

In Stock, Qty 20+

0

21

Echo 35124920060

WASHER

$1.99

$

Usually ships in 2-4 days

0

22

Echo 35120020060

HANDLE ASSY
(Superseded to 35120020061)

Note: Includes ITEM 23

$

$

Not available

23

Echo 35101209960

GRIP, HANDLE

$2.49

$

Usually ships in 2-4 days

0

24

Echo 69911505360

BOLT 6×35

$2.99

$

Usually ships in 2-4 days

0

25

Echo 90021205030

SCREW 5×30

$0.99

$

In Stock, Qty 16

0

26

Echo 13034632430

WASHER
(Superseded to Discontinued)

$

$

Not available

27

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

Echo 99945100020

BATTERY ASSY

Note: INCLUDES ITEMS 29 - 34

$

$

Not available

28

Echo 16931020060

CASE, BATTERY
(Superseded to 16931009860)

$149.99

$

Usually ships in 2-4 days

0

29

Echo 16130020060

CHARGER

$84.99

$

Usually ships in 2-4 days

0

30

Echo 16208020060

HARNESS, WIRE
(Superseded to Discontinued)

$

$

Not available

31

Echo 89017820060

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

32

Echo 16202909960

FUSE
(Superseded to Discontinued)

$

$

Not available

33

Echo 16002020060

BATTERY

$117.99

$

Usually ships in 2-4 days

0
