DHC-3000 - Echo Hedge Trimmer, Battery Motor Case/Blades Parts Diagram

Hedge Trimmer, Battery

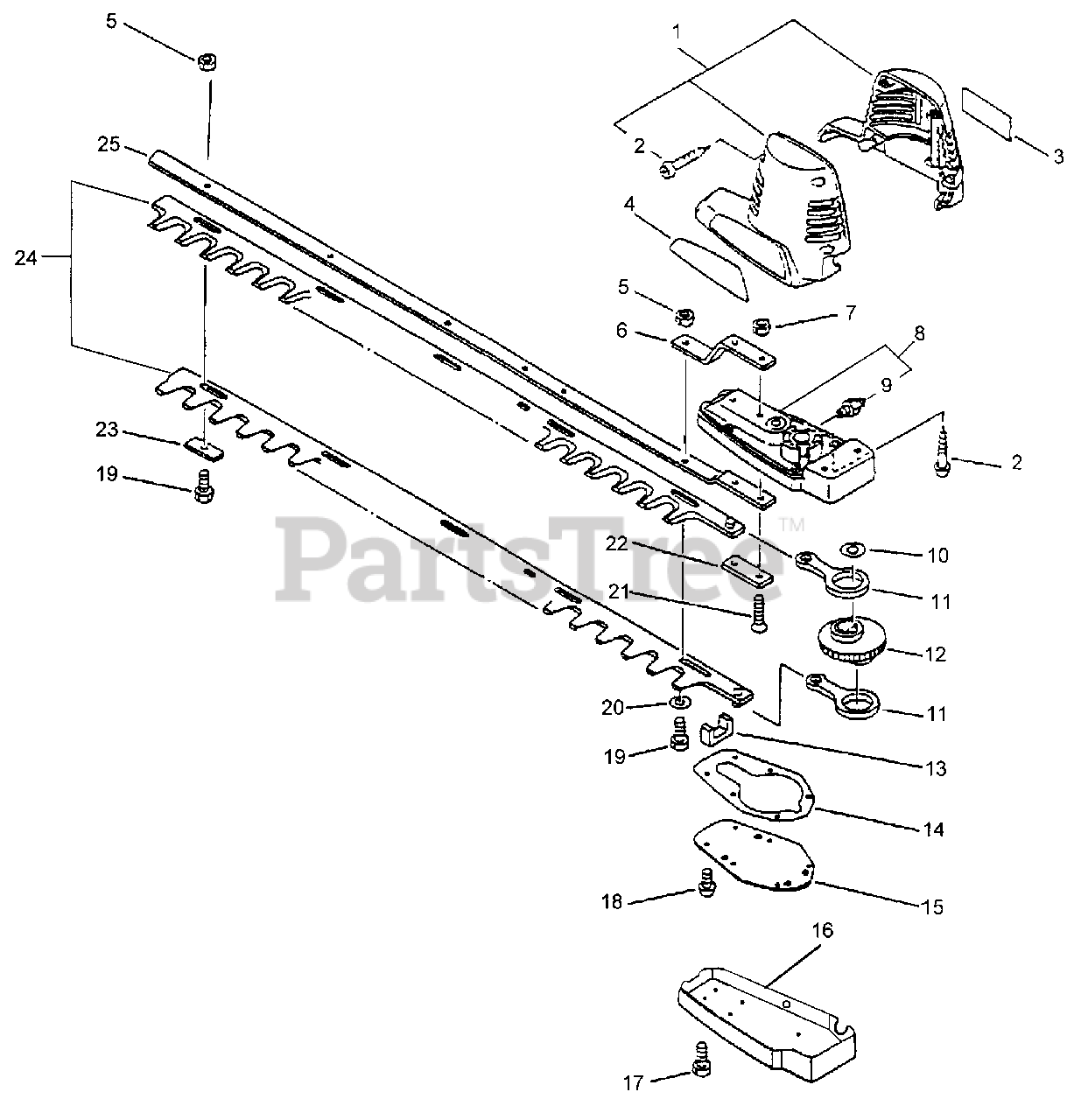

Motor Case/Blades Parts Diagram

  • Title

1

Echo 16100420060

MOTOR CASE KIT
(Superseded to Discontinued)

Note: Includes ITEM 2

$

$

Not available

2

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

3

Echo 89016009960

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

4

Echo 89015120060

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

5

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

6

Echo 69912007260

PLATE, ANGLE
(Superseded to Discontinued)

$

$

Not available

7

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

8

Echo 61041009960

CASE, GEAR
(Superseded to Discontinued)

Note: Includes ITEM 9

$

$

Not available

9

Echo 88011010860

FITTING, GREASE

$6.49

$

Usually ships in 2-4 days

0

10

Echo 61035004560

WASHER

$1.99

$

In Stock, only 3 left!

0

11

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$28.99

$

In Stock, only 2 left!

0

12

Echo 61031204560

GEAR

$91.99

$

In Stock, only 4 left!

0

13

Echo 61042504560

SEAL

$1.49

$

In Stock, Qty 5

0

14

Echo 61041409960

GASKET, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

15

Echo 61041109960

LID, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

16

Echo 66002009960

LID, GEAR CASE
(Superseded to 66002009961)

$

$

Not available

17

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

18

Echo 900238-04012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

19

Echo 69911504660

BOLT 6×18

$2.99

$

In Stock, Qty 20+

0

20

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

21

Echo 90021206025

SCREW 6×25

$0.99

$

In Stock, Qty 9

0

22

Echo 61044004560

PLATE, EYE

$2.99

$

In Stock, only 4 left!

0

23

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

$5.99

$

In Stock, only 2 left!

0

24

Echo 69700020060

TRIMMER BLADE SET
(Superseded to Discontinued)

$

$

Not available

25

Echo 69911020060

SUPPORT, CUTTER
(Superseded to X425000110)

$

$

Not available
