DHCA-2600 - Echo Articulating Hedge Trimmer, Battery (SN: U76800001001 - U76800999999) Motor Parts Diagram

Articulating Hedge Trimmer, Battery

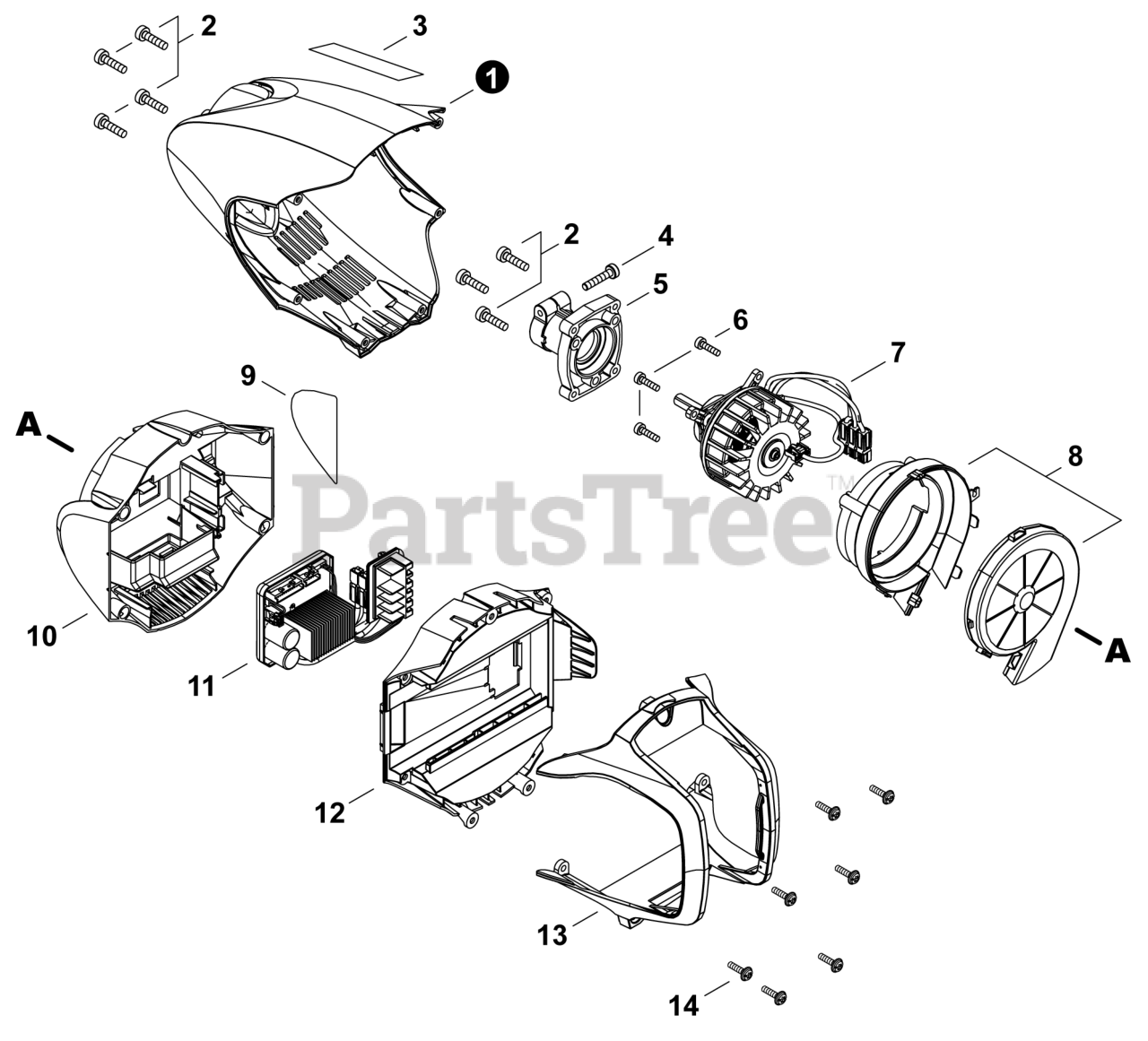

Motor Parts Diagram

  • Title

1

Echo A539000490

COVER, MOTOR

$15.99

$

Usually ships in 2-4 days

0

2

Echo V805000160

BOLT, TORX 5x20

$0.99

$

In Stock, Qty 20+

0

3

Echo X502000390

LABEL - ECHO

$3.49

$

Usually ships in 2-4 days

0

4

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

5

Echo A575000770

HOLDER, MAIN PIPE

$12.99

$

Usually ships in 2-4 days

0

6

Echo V804000170

BOLT, TORX 4x16

$0.99

$

Usually ships in 2-4 days

0

7

Echo A054000390

MOTOR ASSY

$347.99

$

Usually ships in 0 days

0

8

Echo P021054020

CASE ASSY, FAN

$16.99

$

Usually ships in 2-4 days

0

9

Echo X503016700

LABEL - MODEL DHCA-2600

$8.49

$

Usually ships in 0 days

0

10

Echo A161000440

DUCT, AIR

$10.99

$

Usually ships in 2-4 days

0

11

Echo A047000680

CONTROL BOARD ASSY

$

$

Currently unavailable

12

Echo C146000030

HOLDER, BATTERY

$12.99

$

Usually ships in 2-4 days

0

13

Echo C145000190

COVER, BATTERY

$9.99

$

Usually ships in 2-4 days

0

14

Echo V804000190

BOLT, TORX 4x16

$1.49

$

Usually ships in 2-4 days

0
