DHCS-2800 - Echo Hedge Trimmer, Battery (SN: E81200001001 - E81200999999) Cutter Parts Diagram

Hedge Trimmer, Battery

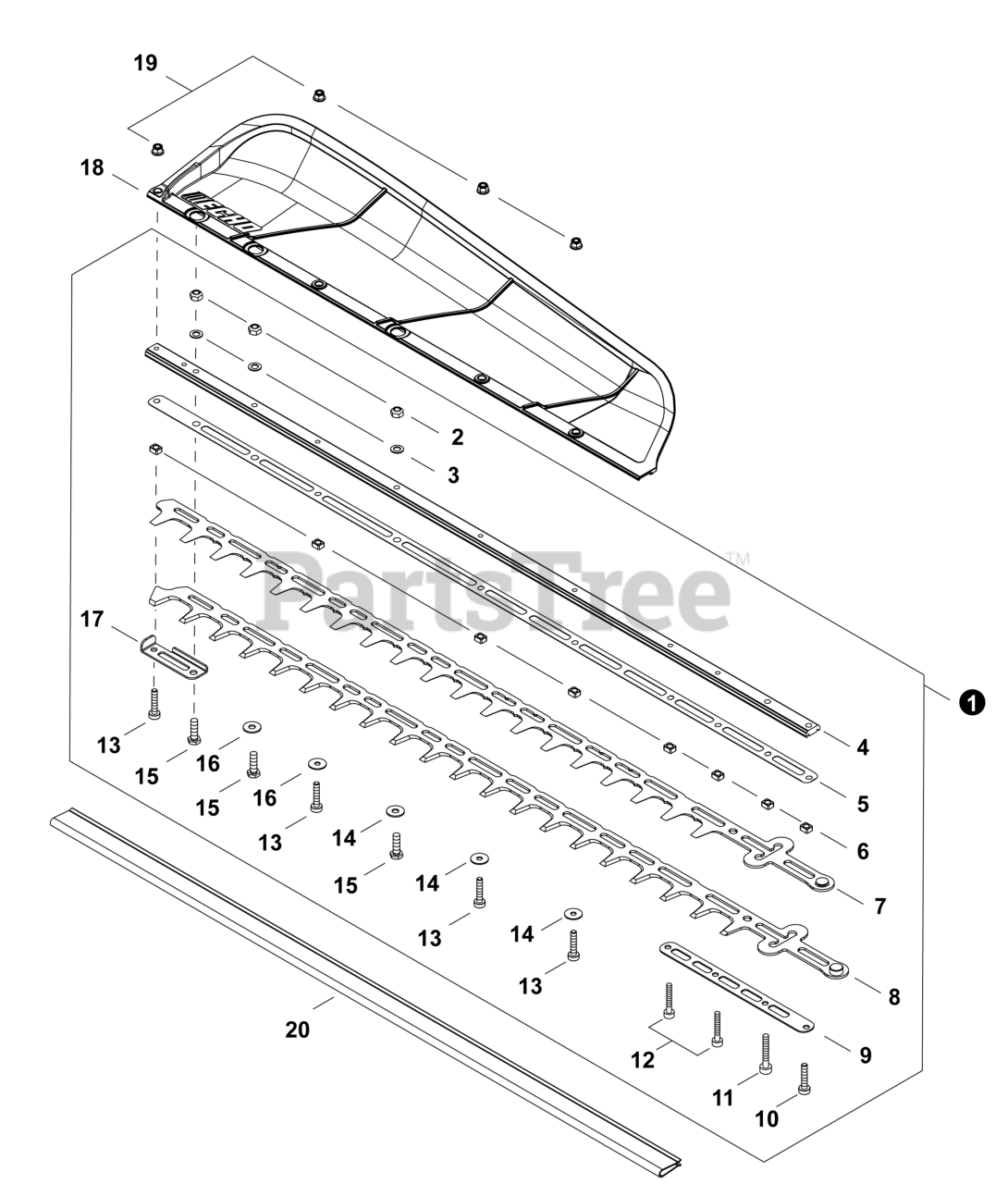

Cutter Parts Diagram

  • Title

1

Echo X041000850

CUTTER ASSY, 30"

Note: Includes Items 2-17

$141.99

$

Usually ships in 0 days

0

2

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

3

Echo 90060000006

WASHER 6.5x11.5x0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo X425001250

SUPPORT, CUTTER 30"

$52.99

$

Usually ships in 0 days

0

5

Echo X425001260

PLATE, CUTTER 30"

$44.99

$

Usually ships in 0 days

0

6

Echo V376002940

GUIDE, BLADE

$1.99

$

Usually ships in 0 days

0

7

Echo X411001440

CUTTER 30" - UPPER

$57.99

$

Usually ships in 0 days

0

8

Echo X411001450

CUTTER 30" - LOWER

$57.99

$

Usually ships in 0 days

0

9

Echo X425001230

PLATE, CUTTER

$3.49

$

Usually ships in 0 days

0

10

Echo V805000220

BOLT, TORX 5x25

$1.99

$

In Stock, Qty 20+

0

11

Echo V805000370

BOLT, TORX 5x35

$1.49

$

In Stock, only 2 left!

0

12

Echo V805000360

BOLT, TORX 5x30

$0.99

$

In Stock, Qty 10

0

13

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

14

Echo V303000290

WASHER

$0.99

$

In Stock, Qty 20+

0

15

Echo V204000570

BOLT M6x20

$1.99

$

In Stock, Qty 17

0

16

Echo V304000240

WASHER M6

$1.49

$

In Stock, Qty 20+

0

17

Echo X425001270

SUPPORT, CUTTER

$11.99

$

Usually ships in 0 days

0

18

Echo C571000210

DEFLECTOR, DEBRIS 30"

$16.99

$

Usually ships in 0 days

0

19

Echo 9210805000

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

20

Echo X495001110

SCABBARD 30"

$8.49

$

Usually ships in 0 days

0
