DHCS-3400 - Echo Hedge Trimmer, Battery (SN: E81300001001 - E81300999999) Cutter Parts Diagram

Hedge Trimmer, Battery

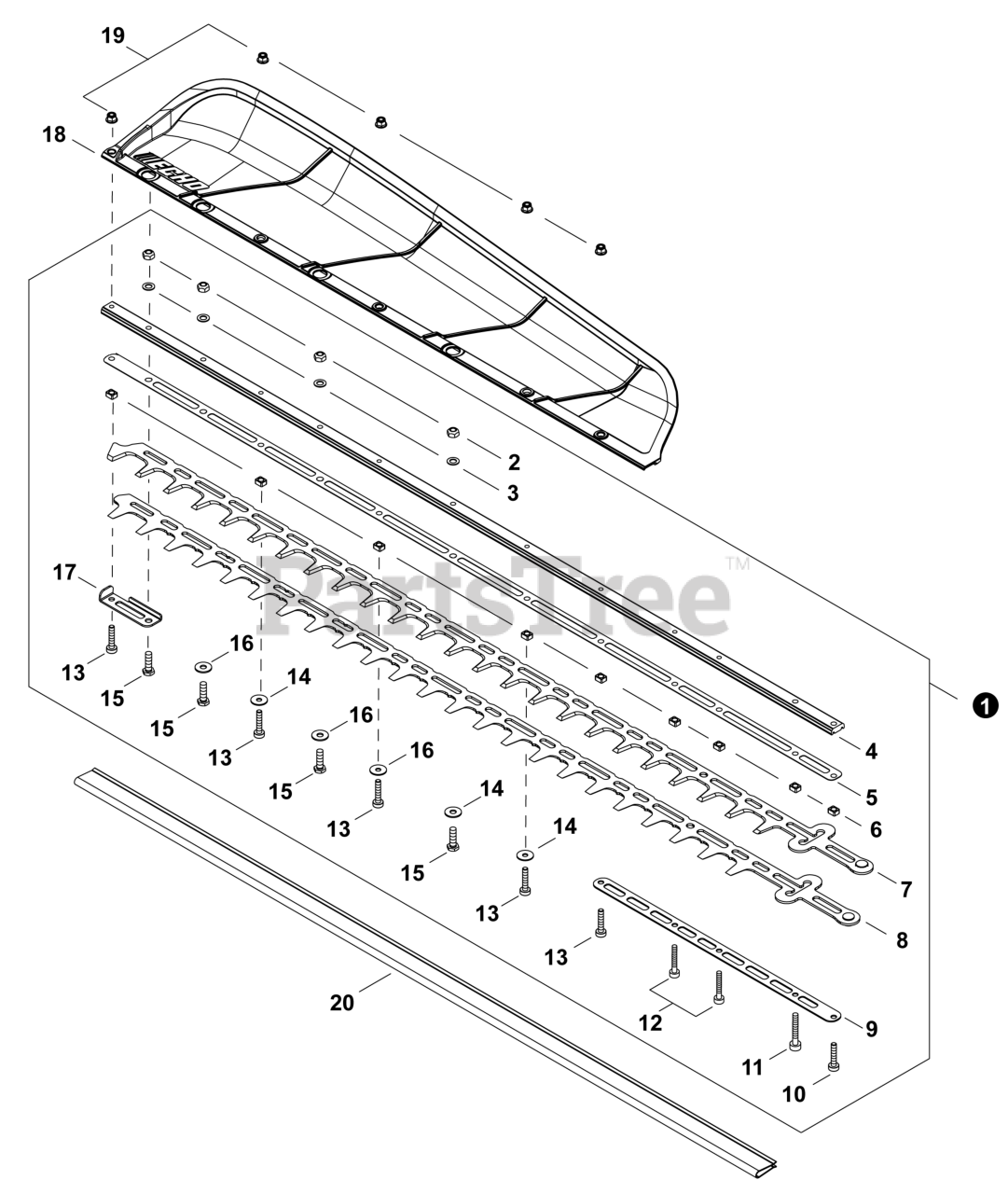

Cutter Parts Diagram

  • Title

1

Echo X041000860

CUTTER ASSY, 40"

Note: Includes Items 2-17

$152.99

$

Usually ships in 0 days

0

2

Echo 43302206460

NUT M6

$1.49

$

In Stock, Qty 20+

0

3

Echo 90060000006

WASHER 6.5x11.5x0.8

$0.99

$

In Stock, Qty 7

0

4

Echo X425001280

SUPPORT, CUTTER 40"

$44.99

$

Usually ships in 0 days

0

5

Echo X425001290

PLATE, CUTTER 40"

$12.99

$

Usually ships in 0 days

0

6

Echo V376002940

GUIDE, BLADE

$1.99

$

Usually ships in 0 days

0

7

Echo X411001460

CUTTER 40" - UPPER

$65.99

$

Usually ships in 0 days

0

8

Echo X411001470

CUTTER 40" - LOWER

$65.99

$

Usually ships in 0 days

0

9

Echo X425001300

PLATE, CUTTER

$8.49

$

Usually ships in 0 days

0

10

Echo V805000220

BOLT, TORX 5x25

$1.99

$

In Stock, only 4 left!

0

11

Echo V805000370

BOLT, TORX 5x35

$1.49

$

Usually ships in 2-4 days

0

12

Echo V805000360

BOLT, TORX 5x30

$0.99

$

In Stock, Qty 10

0

13

Echo V805000170

BOLT, TORX 5x25

$0.99

$

In Stock, Qty 20+

0

14

Echo V303000290

WASHER

$0.99

$

In Stock, Qty 20+

0

15

Echo V204000570

BOLT M6x20

$1.99

$

In Stock, Qty 20+

0

16

Echo V304000240

WASHER M6

$1.49

$

In Stock, Qty 20+

0

17

Echo X425001270

SUPPORT, CUTTER

$10.99

$

Usually ships in 0 days

0

18

Echo C571000220

DEFLECTOR, DEBRIS 40"

$18.99

$

Usually ships in 0 days

0

19

Echo 9210805000

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

20

Echo X495001120

SCABBARD 40"

$9.49

$

Usually ships in 0 days

0
