Diesel 1100cc - Bad Boy Zero-Turn Mower (2015) Frame & ROPS Parts Diagram

Zero-Turn Mower

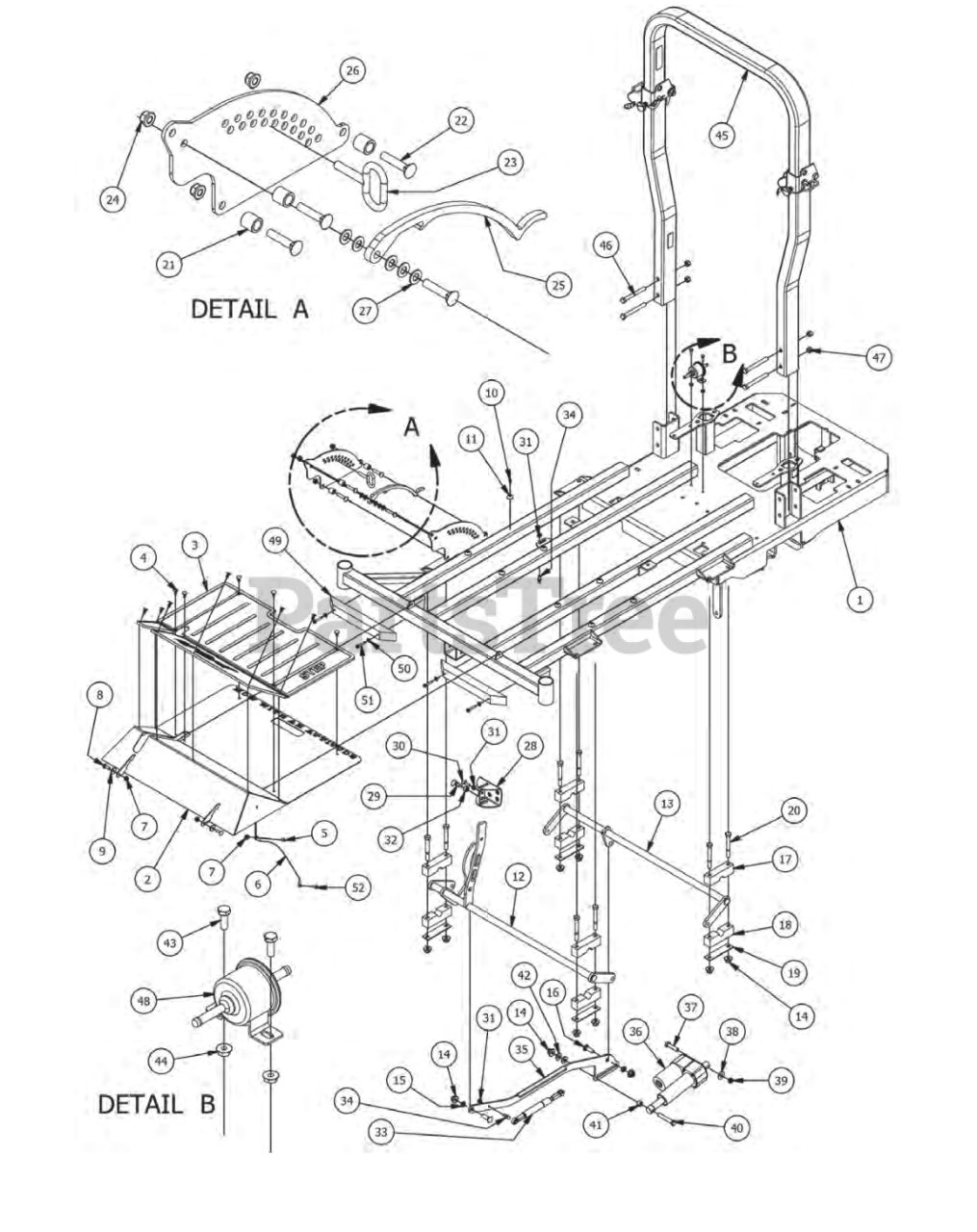

Frame & ROPS Parts Diagram

  • Title

1

Bad Boy 070-5580-00

Outlaw Diesel Frame 2012

$

$

Currently unavailable

2

Bad Boy 079-3110-00

Outlaw Floor Panel

$

$

Currently unavailable

3

Bad Boy 081-2008-00

Foot Assist Floor Mat

$71.99

$

Usually ships in 4-7 days

0

4

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

5

Bad Boy 018-8064-00

1/4" x 5/8" BS C/S 18-8 55

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 064-2006-00

Floor board Cable W/ Swivel Ends

$16.99

$

Usually ships in 4-7 days

0

7

Bad Boy 013-8049-00

5/16" Flange Nut Zinc W/Serrations

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 1 left!

0

9

Bad Boy 019-6042-00

360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

10

Bad Boy 030-3050-00

#10 x 1/2" Self Taping Screw

$0.99

$

In Stock, Qty 9

0

11

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

12

Bad Boy 028-6030-00

2015 Outlaw Act Bar Assembly (Front)

$181.99

$

Usually ships in 4-7 days

0

13

Bad Boy 028-6040-00

2015 Outlaw Act Bar Assembly (Rear)

$166.99

$

Usually ships in 4-7 days

0

14

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

15

Bad Boy 032-3000-00

Bushing-SF-1620-4

$1.49

$

Usually ships in 4-7 days

0

16

Bad Boy 018-0008-00

1/2 x 1-1/2 Carriage Bolt

$1.99

$

Usually ships in 4-7 days

0

17

Bad Boy 017-9000-00

Two Piece Pillow Block (Male)

$11.99

$

Usually ships in 4-7 days

0

18

Bad Boy 017-9050-00

Two Piece Pillow Block (Female)

$11.99

$

Usually ships in 4-7 days

0

19

Bad Boy 017-9025-00

Two Piece Pillow Block Strap

$34.99

$

Usually ships in 4-7 days

0

20

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

21

Bad Boy 025-5203-00

3/4 OD x 1/2 ID x 3/4 Length

$3.49

$

In Stock, Qty 7

0

22

Bad Boy 018-0009-00

3/8 x 13/4 Carriage Bolt

$3.49

$

Usually ships in 4-7 days

0

23

Bad Boy 040-4000-00

Deck height lever pin

$18.99

$

In Stock, only 3 left!

0

24

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

$1.99

$

In Stock, only 3 left!

0

25

Bad Boy 031-0100-00

Outlaw Deck Lever Lock

$19.99

$

Usually ships in 4-7 days

0

26

Bad Boy 026-2100-00

Outlaw Height Indicator Plate (Outer)

$13.99

$

Usually ships in 4-7 days

0

27

Bad Boy 019-2003-00

390x.750 x 062 Nylon Washer

$0.99

$

Usually ships in 4-7 days

0

28

Bad Boy 026-0013-00

Outlaw Deck Lift Pedal

$22.99

$

Usually ships in 4-7 days

0

29

Bad Boy 040-5000-00

Pull Pin

$22.99

$

Usually ships in 4-7 days

0

30

Bad Boy 030-0010-00

5/16-18 x1 Thumb Screw Zinc

$3.49

$

Usually ships in 4-7 days

0

31

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

32

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

33

Bad Boy 087-6100-00

250lb Gas Spring

$83.99

$

In Stock, only 2 left!

0

34

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 3 left!

0

35

Bad Boy 028-6055-00

Outlaw Linkage Bar Susp Frame

$30.99

$

Usually ships in 4-7 days

0

36

Bad Boy 035-7033-00

Actuator

$465.99

$

Usually ships in 4-7 days

0

37

Bad Boy 018-0022-00

1/2-13x2 Grade 8 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

38

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

39

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 8

0

40

Bad Boy 018-7016-00

1/2" x 3" Hex Bolt

$1.99

$

In Stock, Qty 5

0

41

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

42

Bad Boy 019-8054-00

505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

43

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

44

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

45

Bad Boy 089-3050-00

2 X 3 ROPS Fits All 2012 Diesel Models

$490.99

$

Usually ships in 4-7 days

0

46

Bad Boy 018-7050-00

1/2" x 4 1/2" Bolt

$2.99

$

In Stock, Qty 9

0

47

Bad Boy 013-0005-00

1/2" Center Lock Nut

$3.49

$

Usually ships in 4-7 days

0

48

Bad Boy 015-4000-00

Electric Fuel Pump

$532.99

$

Usually ships in 4-7 days

0

49

Bad Boy 029-7037-00

14 Rubber Bumper

$45.99

$

Usually ships in 4-7 days

0

50

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

51

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

52

Bad Boy 030-7040-00

1/4 x 1 Hex Head tek screw

$1.49

$

Usually ships in 4-7 days

0
