Diesel 1100cc - Bad Boy Zero-Turn Mower (2016) Radiator Assembly Parts Diagram

Zero-Turn Mower

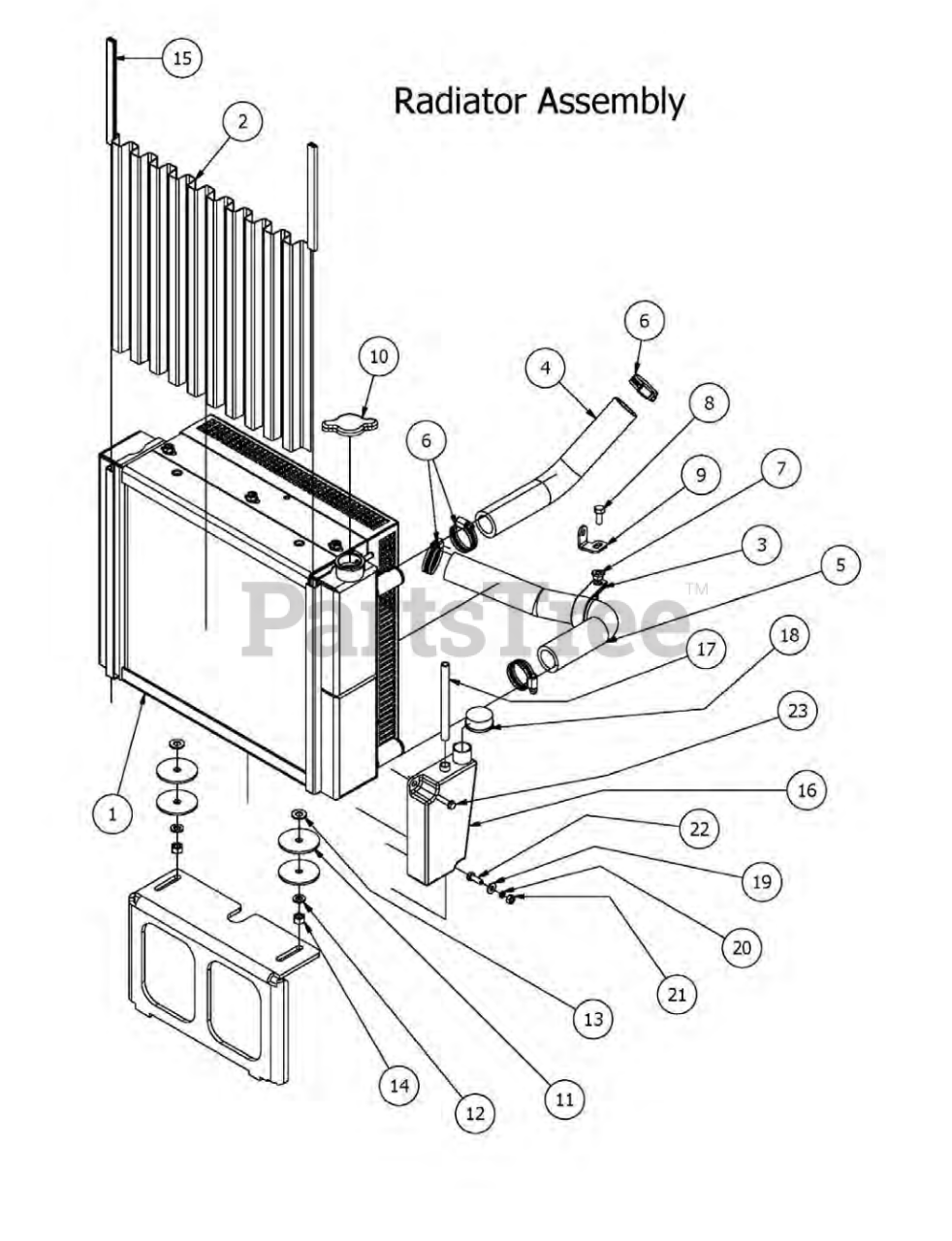

Radiator Assembly Parts Diagram

  • Title

1

Bad Boy 061-5000-00

Radiator- Diesel

$1139.99

$

Usually ships in 4-7 days

0

2

Bad Boy 094-5088-00

Radiator Screen-Diesel

$148.99

$

Usually ships in 4-7 days

0

3

Bad Boy 072-8090-00

Diesel Clamp 1 3/4" Vinyl

$3.99

$

Usually ships in 4-7 days

0

4

Bad Boy 051-3000-00

Top Radiator Hose for Diesel

$23.99

$

Usually ships in 4-7 days

0

5

Bad Boy 051-3001-00

Bottom Radiator Hose for Diesel

$29.99

$

Usually ships in 4-7 days

0

6

Bad Boy 072-2003-00

1 1/8" Hose Clamp

$6.49

$

Usually ships in 4-7 days

0

7

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, only 3 left!

0

8

Bad Boy 018-2007-00

5/16" x 1" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 039-1015-00

Diesel Radiator Hose Clamp Bracket

$2.49

$

Usually ships in 4-7 days

0

10

Bad Boy 015-0104-00

Radiator cap

$33.99

$

Usually ships in 4-7 days

0

11

Bad Boy 019-5050-00

3/8 x 2-1/4 OD Fibre Washer

$1.99

$

Usually ships in 4-7 days

0

12

Bad Boy 019-5037-00

3/8" Lock Washer

$0.99

$

In Stock, only 2 left!

0

13

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 2 left!

0

14

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 084-4015-00

Rubber Trim

$11.99

$

Usually ships in 4-7 days

0

16

Bad Boy 015-0111-00

overflow Reservoir- 28/35Hp Diesel

$113.99

$

In Stock, only 2 left!

0

17

Bad Boy 051-8069-00

5/16 Clear Hose

$3.49

$

Usually ships in 4-7 days

0

18

Bad Boy 066-8075-00

Reservoir Tank Cap-Overflow

$6.99

$

Usually ships in 4-7 days

0

19

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

20

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

21

Bad Boy 013-8039-00

1/4" Hex Nut

$0.99

$

Usually ships in 4-7 days

0

22

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

23

Bad Boy 030-7040-00

1/4 x 1 Hex Head tek screw

$1.49

$

Usually ships in 4-7 days

0
