Diesel / Compact Diesel - Bad Boy Zero-Turn Mower (2012) Diesel 61" Deck Parts Diagram

Zero-Turn Mower

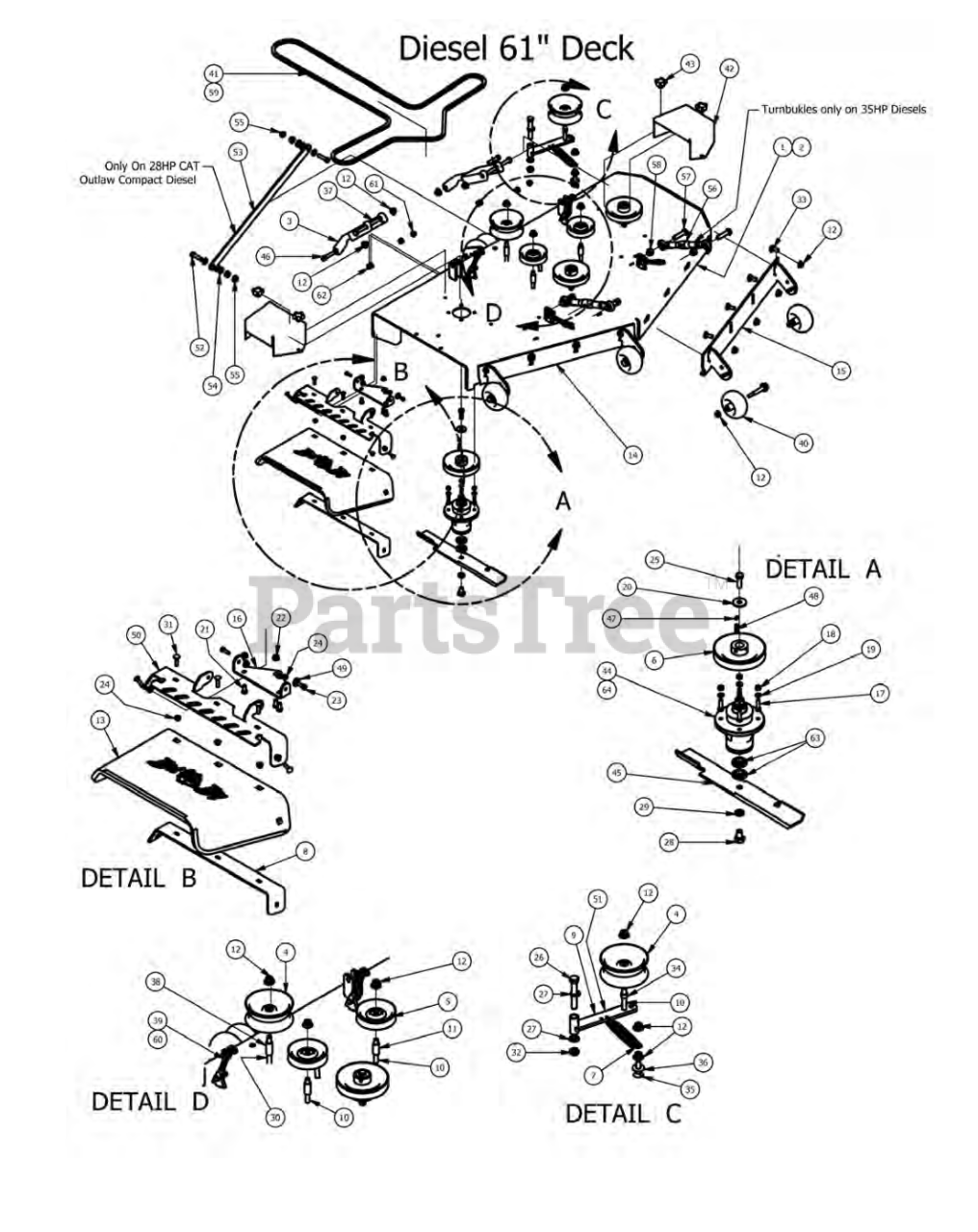

Diesel 61" Deck Parts Diagram

  • Title

1

Bad Boy 060-6100-00

61" Outlaw Deck Only 28HP Diesel

$1210.99

$

Usually ships in 4-7 days

0

2

Bad Boy 060-6130-00

61" AOS Deck Only 2012 35Hp Diesel

$

$

Currently unavailable

3

Bad Boy 031-6010-00

Deck Arm Assembly

$

$

Not available

4

Bad Boy 033-5001-00

5 3/4 Flat Idler-32F1-92-008 Pulley

$67.99

$

Usually ships in 4-7 days

0

5

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

6

Bad Boy 033-6004-00

6.1/4" Drive Pulley

$37.99

$

In Stock, Qty 15

0

7

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

8

Bad Boy 039-4863-00

60" Lower Hanger

$34.99

$

Usually ships in 4-7 days

0

9

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

10

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

11

Bad Boy 025-5338-00

Pup Pulley Spacer

$3.99

$

In Stock, only 2 left!

0

12

Bad Boy 013-8050-00

1/2-13 Nylon Insert Flange Nut

$1.99

$

In Stock, Qty 20+

0

13

Bad Boy 210-6005-00

Rubber Discharge Chute

$63.99

$

In Stock, only 2 left!

0

14

Bad Boy 060-6220-00

61 Outlaw Adjustable Deck Front (Left)

$75.99

$

Usually ships in 4-7 days

0

15

Bad Boy 060-6210-00

61 Outlaw Adjustable Deck Front (Right)

$75.99

$

Usually ships in 4-7 days

0

16

Bad Boy 206-6017-00

Discharge Chute Hanger (deck mounted)

$41.99

$

In Stock, only 2 left!

0

17

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

18

Bad Boy 013-6014-00

3/8-16 Hex Nuts Zinc

$0.99

$

In Stock, only 4 left!

0

19

Bad Boy 019-5037-00

3/8 Lockwasher Zinc

$0.99

$

In Stock, only 2 left!

0

20

Bad Boy 019-6020-00

1/2 Belleville Washer

$5.49

$

In Stock, Qty 20+

0

21

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

22

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

23

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

24

Bad Boy 013-9002-00

5/16" Flange Nut Zinc W/Serrations

$0.99

$

In Stock, only 1 left!

0

25

Bad Boy 018-6019-00

1/2"-20 x 1 1/2-Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 6

0

26

Bad Boy 018-5311-00

5/8" x 4" Hex Bolt

$4.49

$

In Stock, only 1 left!

0

27

Bad Boy 019-6017-00

635 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

28

Bad Boy 016-6020-00

5/8" x 1 1/2" Grade 8 Bolt

$

$

Currently unavailable

29

Bad Boy 019-4807-00

5/8" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, only 2 left!

0

31

Bad Boy 018-4703-00

5/16" x 1 1/4" Camage Bolt

$0.99

$

In Stock, only 3 left!

0

32

Bad Boy 013-5301-00

5/8" Nylock (1/2 Jam)

$0.99

$

In Stock, only 2 left!

0

33

Bad Boy 018-3003-00

1/2" x 1 1/4 Carriage Bolt

$1.49

$

In Stock, only 2 left!

0

34

Bad Boy 025-5203-00

Spacer 3/4 OD X 1/2 ID X.75

$3.49

$

In Stock, Qty 7

0

35

Bad Boy 018-1050-00

1/2 x 2" Carriage Boit

$1.99

$

In Stock, only 1 left!

0

36

Bad Boy 019-2040-00

1/2" Flat Washer

$1.99

$

Usually ships in 4-7 days

0

37

Bad Boy 018-1090-00

1/2" x 5 1/2" Bolt

$3.49

$

Usually ships in 4-7 days

0

38

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

39

Bad Boy 047-4000-00

4-Link Adjustable Deck Hange 35HP Diesel

$

$

Not available

40

Bad Boy 022-1000-00

Deck Wheel

$18.99

$

In Stock, Qty 20+

0

41

Bad Boy 041-0226-00

B226 Belt For 2012 Outlaw 28Hp Diesel

$125.99

$

In Stock, only 2 left!

0

42

Bad Boy 014-6010-00

Pulley Cover

$

$

Not available

43

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 8

0

44

Bad Boy 037-8000-50

Double Bearing Spindle Only on 28hp Diesel

$

$

Not available

45

Bad Boy 038-6080-00

61 inch Fusion Blade

$24.99

$

In Stock, Qty 20+

0

46

Bad Boy 018-6037-00

1/2-13X 2-1/4 GR Hex Bolts

$1.99

$

Usually ships in 4-7 days

0

47

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

48

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 7

0

49

Bad Boy 019-6042-00

360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

50

Bad Boy 039-4864-00

60" Upper Hanger Plate

$45.99

$

Usually ships in 4-7 days

0

51

Bad Boy 039-6945-98

Deck Idler Assembly-parts of Assembly 12,4,34,10,9

$83.99

$

Usually ships in 4-7 days

0

52

Bad Boy 018-5049-00

1/2-13x2 GR 5 Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

53

Bad Boy 028-6060-00

Outlaw Panhard Link

$13.99

$

Usually ships in 4-7 days

0

54

Bad Boy 019-8054-00

505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

55

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

56

Bad Boy 048-6056-00

Tumbuckle (Top Link)

$56.99

$

Usually ships in 4-7 days

0

57

Bad Boy 018-6059-00

5/8" x 2 1/2" Hex Bolt

$2.99

$

In Stock, only 2 left!

0

58

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

59

Bad Boy 041-0236-00

B236 Belt Diesel EZ Ride 35Hp Diesel only

$125.99

$

In Stock, only 2 left!

0

60

Bad Boy 047-6047-98

3 Link Adjustable Deck Hanger only on 28HP Diesel

$

$

Not available

61

Bad Boy 032-5056-00

Flange Bushing For Deck Arm upper

$6.49

$

In Stock, only 3 left!

0

62

Bad Boy 032-5057-00

Flange for Lower Deck Arm

$15.99

$

In Stock, only 3 left!

0

63

Bad Boy 037-8001-00

Double Bearing For Spindle

$49.99

$

Usually ships in 4-7 days

0

64

Bad Boy 037-8000-00

Doublé Bearing Spindle Only on 35hp Diesel

$

$

Not available
