Diesel / Compact Diesel - Bad Boy Zero-Turn Mower (2014) Diesel Frame , Actuator, Floor Board, and Height Indicator Parts Diagram

Zero-Turn Mower

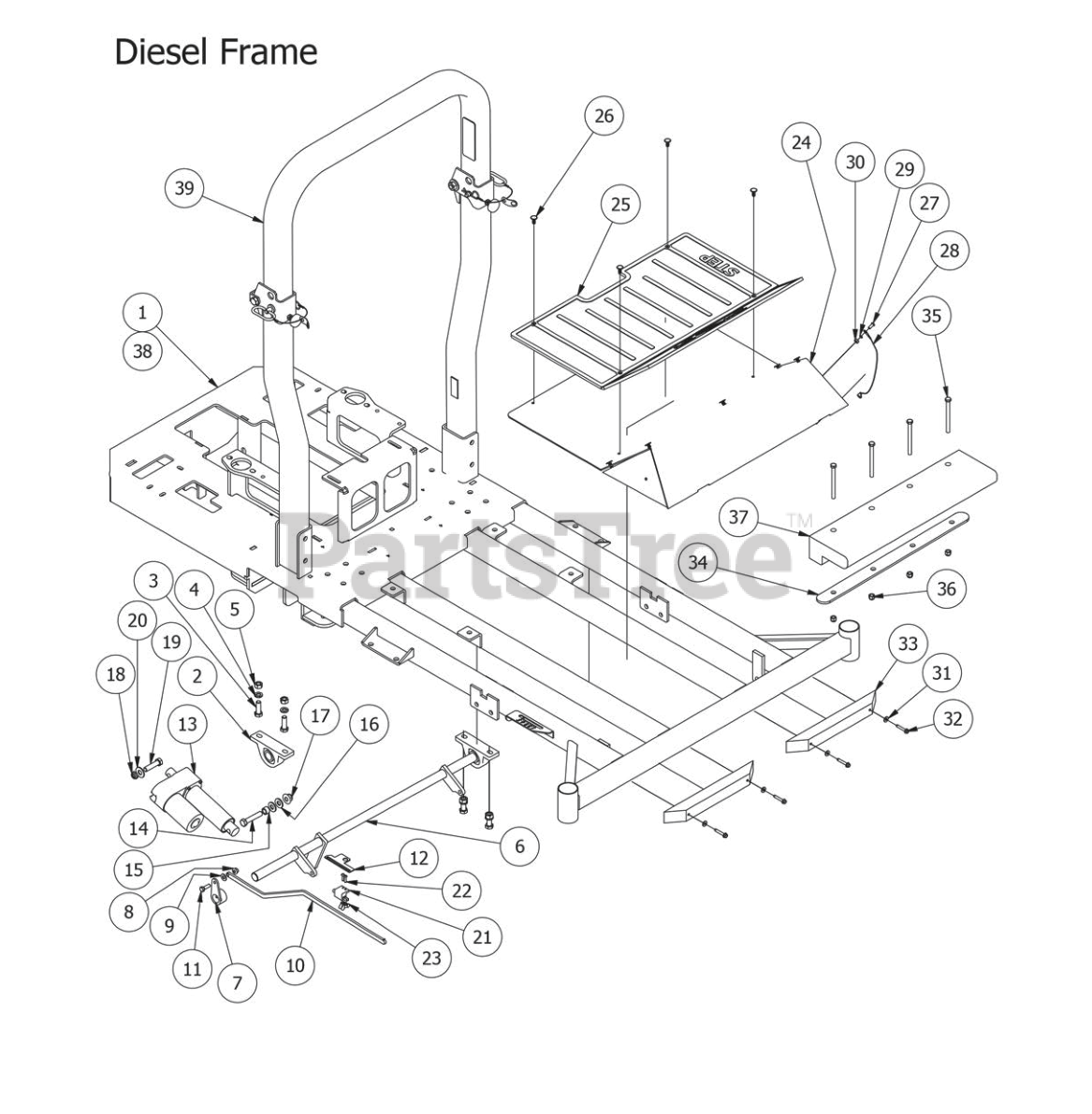

Diesel Frame , Actuator, Floor Board, and Height Indicator Parts Diagram

  • Title

1

Bad Boy 070-5550-00

Diesel 4cyl 72" Frame

$

$

Currently unavailable

2

Bad Boy 017-7008-00

pillow block 2bolt sealmaster

$22.99

$

Usually ships in 4-7 days

0

3

Bad Boy 018-5006-00

1/2" x 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

4

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

5

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

6

Bad Boy 028-7920-00

Actuator Bar

$121.99

$

Usually ships in 0 days

0

7

Bad Boy 031-7000-00

Height Indicator Lever

$

$

Not available

8

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

9

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

Usually ships in 4-7 days

0

10

Bad Boy 028-5203-00

Height Indicator Bar

$30.99

$

Usually ships in 0 days

0

11

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 039-2008-00

Deck Stop Bracket 2008

$12.99

$

Usually ships in 0 days

0

13

Bad Boy 035-7033-00

Actuator

$465.99

$

Usually ships in 4-7 days

0

14

Bad Boy 018-6036-00

1/2" x 2 1/2" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

15

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

16

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

17

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut-Orange

$1.99

$

In Stock, Qty 20+

0

18

Bad Boy 018-4010-00

1/2" Nylcock Nut (1/2 Jam)

$1.99

$

In Stock, Qty 8

0

19

Bad Boy 018-5049-00

1/2" x 2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

20

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

21

Bad Boy 077-5300-00

Deck Stop Switch

$10.99

$

Usually ships in 4-7 days

0

22

Bad Boy 018-8056-00

1024 x 1" Allenhead Bolt

$0.99

$

Usually ships in 4-7 days

0

23

Bad Boy 013-2000-00

M6x1.0x20MM 8.8 Hex Bolts Zinc

$0.99

$

Usually ships in 4-7 days

0

24

Bad Boy 079-6000-00

Floor Panel

$166.99

$

Usually ships in 4-7 days

0

25

Bad Boy 081-2007-00

AOS Floor Mat

$71.99

$

Usually ships in 4-7 days

0

26

Bad Boy 040-6080-00

Ratchet Fastener-Floorboard

$3.49

$

In Stock, only 3 left!

0

27

Bad Boy 018-8064-00

1/4" x 5/8" Buttonhead Bolt

$0.99

$

Usually ships in 4-7 days

0

28

Bad Boy 064-2006-00

Floor board Cable W/ Swivel Ends

$16.99

$

Usually ships in 4-7 days

0

29

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

30

Bad Boy 013-8039-00

1/4" Hex Nut

$0.99

$

Usually ships in 4-7 days

0

31

Bad Boy 019-7040-00

1/4" Flat Washer

$0.99

$

In Stock, Qty 6

0

32

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

33

Bad Boy 029-7037-00

14" Rubber Bumper

$45.99

$

Usually ships in 4-7 days

0

34

Bad Boy 028-1000-00

Diesel Weight Bar Bracket

$15.99

$

Usually ships in 4-7 days

0

35

Bad Boy 018-2005-00

3/8" x 4 1/2" Bolt

$2.99

$

Usually ships in 4-7 days

0

36

Bad Boy 013-5041-00

3/8 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

37

Bad Boy 088-2000-00

58lb Diesel Weight

$227.99

$

Usually ships in 4-7 days

0

38

Bad Boy 070-5520-00

Diesel 4cyl 61" Frame Suspension

$

$

Not available

39

Bad Boy 089-3050-00

2 X 3 ROPS Fits All 2012 Diesel Models

$490.99

$

Usually ships in 4-7 days

0
