Diesel / Compact Diesel - Bad Boy Zero-Turn Mower (2014) Diesel Seat Frame Parts Diagram

Zero-Turn Mower

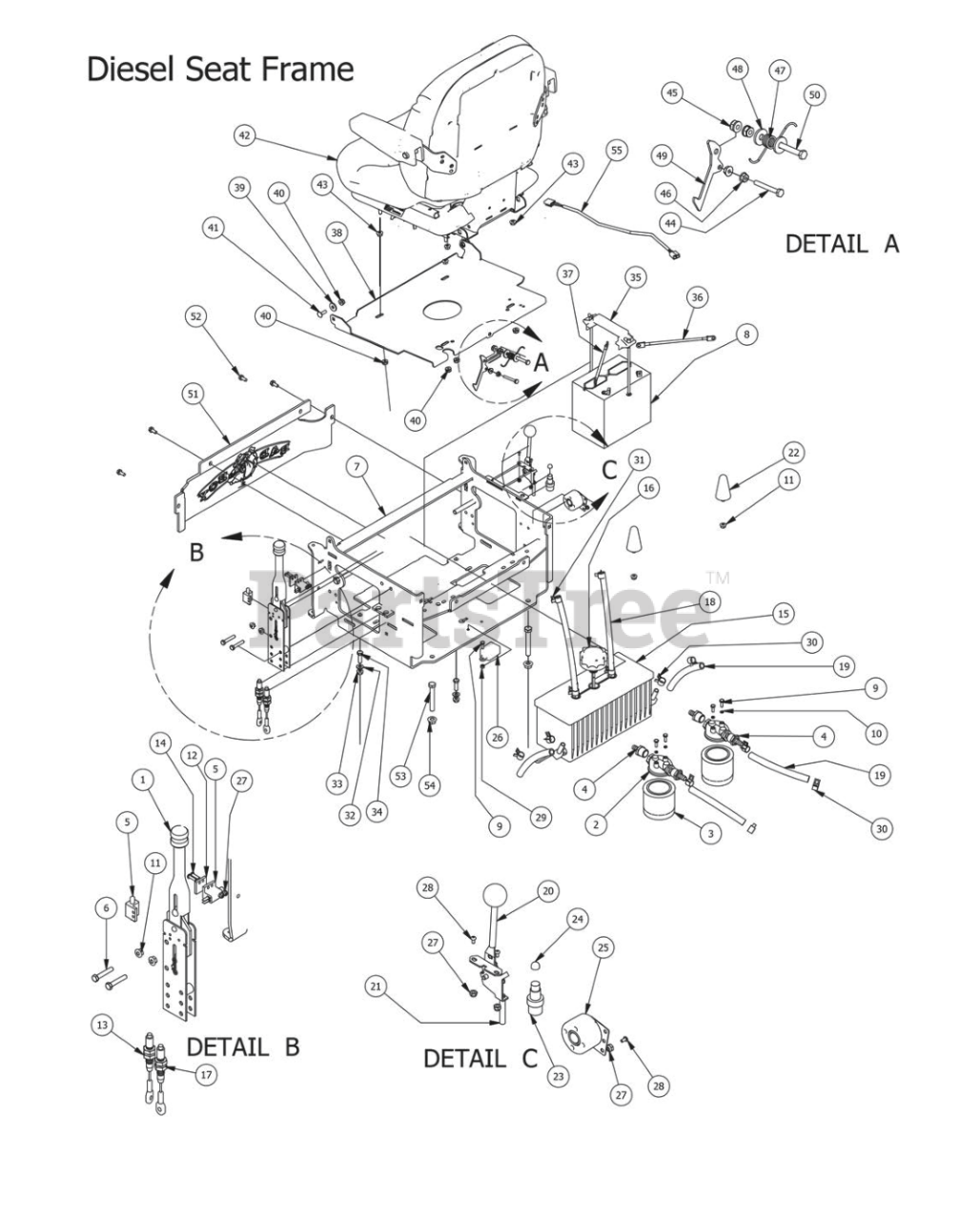

Diesel Seat Frame Parts Diagram

  • Title

1

Bad Boy 069-8054-00

Hand Brake Assembly

$136.99

$

Usually ships in 4-7 days

0

2

Bad Boy 062-8013-00

Filter Head

$26.99

$

Usually ships in 4-7 days

0

3

Bad Boy 063-8014-00

Hydraulic filter

$33.99

$

In Stock, Qty 20+

0

4

Bad Boy 024-5050-00

Filter Head Fitting

$8.49

$

Usually ships in 4-7 days

0

5

Bad Boy 077-8073-00

Switch

$11.99

$

In Stock, Qty 13

0

6

Bad Boy 018-8059-00

5/16" x 1 3/4" Hex Bolt

$0.99

$

Usually ships in 4-7 days

0

7

Bad Boy 080-7000-00

2007 Diesel Seat Frame

$

$

Not available

8

Bad Boy 068-8050-00

Battery - Diesel Models - 151

$

$

Not available

9

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

10

Bad Boy 019-4008-00

1/4" Lock Washer

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 013-9002-00

5/16" Flange Nut w/Serrations

$0.99

$

In Stock, only 1 left!

0

12

Bad Boy 025-6041-00

Switch Block Plastic

$2.49

$

Usually ships in 4-7 days

0

13

Bad Boy 064-8055-00

Short Brake Cable

$54.99

$

In Stock, only 2 left!

0

14

Bad Boy 018-8056-00

1024 x 1" Allenhead Bolt

$0.99

$

Usually ships in 4-7 days

0

15

Bad Boy 067-2010-00

Aluminum Hydraulic Tank

$226.99

$

Usually ships in 0 days

0

16

Bad Boy 066-8050-00

Hydraulic Tank Cap

$33.99

$

In Stock, only 2 left!

0

17

Bad Boy 064-8056-00

Long Brake Cable

$56.99

$

In Stock, only 2 left!

0

18

Bad Boy 051-8063-00

3/8" x 32" Clear Hose

$3.49

$

In Stock, Qty 7

0

19

Bad Boy 051-8064-00

1/2" x 9 1/4" Braided Hose

$3.49

$

In Stock, only 3 left!

0

20

Bad Boy 055-8018-00

Throttle - Diesel

$64.99

$

Usually ships in 4-7 days

0

21

Bad Boy 055-8018-75

Diesel Throttle Cable Only

$34.99

$

In Stock, only 2 left!

0

22

Bad Boy 034-1000-00

Spring Cushion

$30.99

$

Usually ships in 4-7 days

0

23

Bad Boy 077-6000-00

Momentary Start Switch

$22.99

$

Usually ships in 4-7 days

0

24

Bad Boy 014-6000-00

Start Switch Boot - Diesel

$6.99

$

Usually ships in 4-7 days

0

25

Bad Boy 021-8059-00

Heat Warning Piezo Buzzer

$38.99

$

Usually ships in 4-7 days

0

26

Bad Boy 015-0015-00

Auto Shut Down for Cat Diesels

$797.99

$

Usually ships in 4-7 days

0

27

Bad Boy 013-5019-00

#10 Nylock Nut

$0.99

$

Usually ships in 4-7 days

0

28

Bad Boy 018-5200-00

1024 X 5/8" Buttonhead Bolt

$0.99

$

In Stock, Qty 5

0

29

Bad Boy 013-8039-00

1/4" Hex Nut

$0.99

$

Usually ships in 4-7 days

0

30

Bad Boy 072-8066-00

1/2 Hose Clamp

$2.49

$

Usually ships in 4-7 days

0

31

Bad Boy 072-8065-00

3/8 hose clamp

$1.49

$

In Stock, only 2 left!

0

32

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, only 1 left!

0

33

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

34

Bad Boy 018-5040-00

3/8" x 1 1/4" Hex Bolt

$0.99

$

In Stock, Qty 9

0

35

Bad Boy 043-8929-00

Battery Hold Down

$18.99

$

In Stock, only 1 left!

0

36

Bad Boy 064-4001-00

Black Battery Cable - Diesel

$23.99

$

Usually ships in 4-7 days

0

37

Bad Boy 064-4000-00

Red Battery Cable - Diesel

$25.99

$

Usually ships in 4-7 days

0

38

Bad Boy 026-2006-00

2006 Seat Plate

$105.99

$

Usually ships in 4-7 days

0

39

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

40

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

41

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, only 1 left!

0

42

Bad Boy 071-4050-00

Grammer Suspension Seat

$

$

Not available

43

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, only 1 left!

0

44

Bad Boy 018-0011-00

1/4-20 x 2 Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

45

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

46

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 2 left!

0

47

Bad Boy 034-1075-00

Torsion Spring for Seat latch

$5.99

$

Usually ships in 4-7 days

0

48

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, only 1 left!

0

49

Bad Boy 031-0200-00

Seat Latch Lever

$3.49

$

Usually ships in 4-7 days

0

50

Bad Boy 018-0012-00

5/16-18 X 2 Hex C/S (GR.5) ZC

$2.99

$

In Stock, Qty 13

0

51

Bad Boy 014-2009-00

Cooler Cover

$

$

Not available

52

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

53

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, only 2 left!

0

54

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0

55

Bad Boy 036-5300-00

Seat Switch Adapter

$16.99

$

Usually ships in 4-7 days

0
