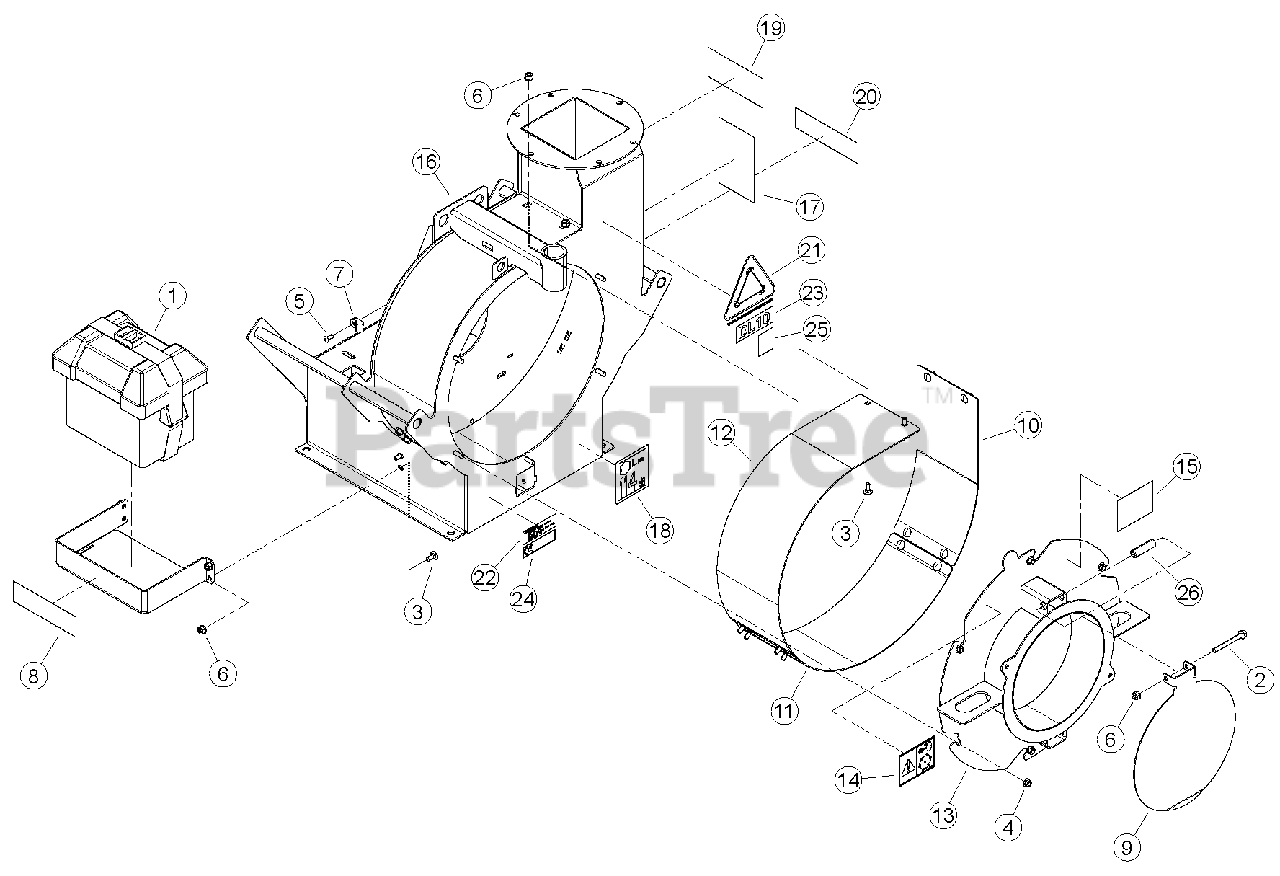

DL 10 - Bear Cat 10" Debris Loader, 570cc Briggs & Stratton (SN: E08069 & Above) Housing Parts Diagram

10" Debris Loader, 570cc Briggs & Stratton

Housing Parts Diagram

  • Title
1

Bear Cat 12839

BOX, SMALL BATTERY

$83.99

$

Usually ships in 3-7 days

0

2

15145-00

BOLT, 5/16 X 3 FLANGE NC

$

$

Not available

3

Bear Cat 15367

BOLT, 5/16 X 3/4 GR5 NC ZP CRG

$

$

Not available

4

Bear Cat 15818-00

NUT, 5/16 FLANGE TOPLOCK

$0.99

$

Usually ships in 3-7 days

0

5

Bear Cat 15828-00

RIVET, AL BLIND 1/4 X 3/4 DOME HEAD

$2.99

$

Usually ships in 3-7 days

0

6

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

7

Bear Cat 18549-00

CLAMP, CABLE MOUNT

$7.99

$

Usually ships in 3-7 days

0

8

Bear Cat 31713-00

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.99

$

Usually ships in 3-7 days

0

9

Bear Cat 75737-12

SHIELD, INTAKE

$

$

Not available

10

77394-00

LINER, WEAR RIGHT

$

$

Not available

11

77395-00

LINER, WEAR MIDDLE

$

$

Not available

12

77396-00

LINER, WEAR LEFT

$

$

Not available

13

Bear Cat 77425-00

ASSEMBLY, VACUUM INTAKE

Note: (INCLUDES ITEMS 14 & 15)

$585.99

$

Usually ships in 3-7 days

0

14

Bear Cat 18993-00

DECAL, INSTRUCTION ISO

$6.49

$

Usually ships in 3-7 days

0

15

Bear Cat 36176-00

DECAL, INSTRUCTION ISO

$6.49

$

Usually ships in 3-7 days

0

16

Bear Cat 77440-00

ASSEMBLY, DL10 HOUSING

Note: (INCLUDES ITEMS 17-25)

$

$

Not available

17

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

18

Bear Cat 14467-00

DECAL, 114 DB

$38.99

$

Usually ships in 3-7 days

0

19

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

20

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

21

Bear Cat 31390-00

DECAL, COLLECT IT

$34.99

$

Usually ships in 3-7 days

0

22

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

23

32273-00

DECAL, MODEL DL10

$

$

Not available

24

32315-00

DECAL, DL10 INFORMATION

$

$

Not available

25

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

26

77460-00

SPACER, 5/8 OD X 11 GA X 2.13

$

$

Not available

17320

STRAP, 11 IN BLACK TIE

Note: (NOT SHOWN)

$

$

Not available
