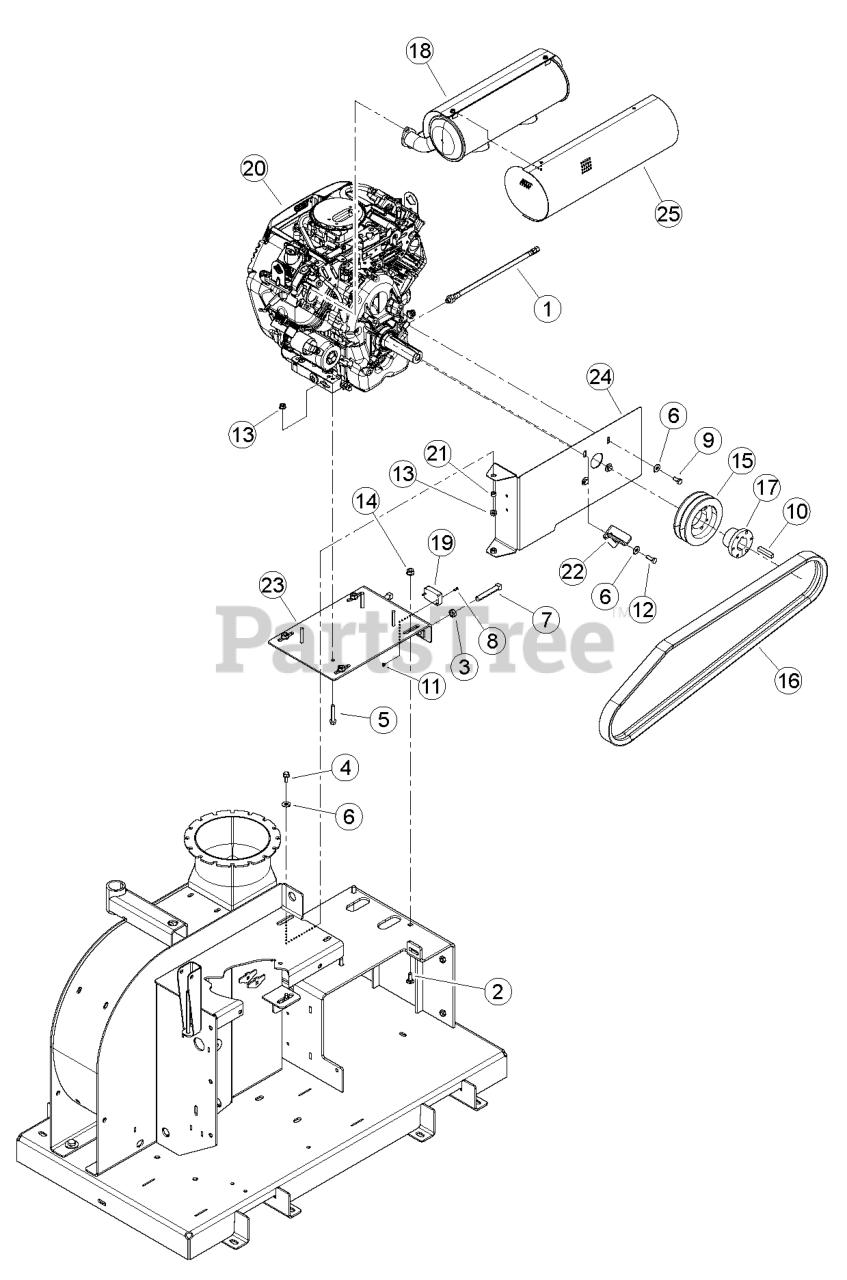

DL 12 - Bear Cat 12" Debris Loader, 896cc Briggs & Stratton (SN: H04989 & Above) Engine Parts Diagram

12" Debris Loader, 896cc Briggs & Stratton

Engine Parts Diagram

  • Title

1

Bear Cat 14373-00

HOSE ASSEMBLY, CRANKCASE DRAIN

$81.99

$

Usually ships in 3-7 days

0

2

15057

BOLT, 3/8-16 X 1 GR5 CRG

$

$

Not available

3

15089

NUT, 1/2 NC ZP JAM

$

$

Not available

4

Bear Cat 15117-00

BOLT, 5/16 X 3/4 FLANGE NC

$1.99

$

Usually ships in 3-7 days

0

5

15133-00

BOLT, 5/16 X 2 FLANGE NC

$

$

Not available

6

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

7

15285

SETSCREW, 1/2 X 3 SQ HD 1/2 DOG PT

$

$

Not available

8

15314-00

SCREW, #6-32 X 3/4 PAN PHP ZP

$

$

Not available

9

Bear Cat 15381

BOLT, 5/16-24 X 3/4" GR5 HHCS ZP

$0.99

$

Usually ships in 3-7 days

0

10

Bear Cat 15440

KEY, 3/8" SQ X 2" LG PLAIN

$5.49

$

In Stock, only 2 left!

0

11

Bear Cat 15601

NUT, #6-32 NYLON LOCK ZP

$

$

Not available

12

Bear Cat 15755-00

BOLT, 5/16-24 X 1" HHCS GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

13

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK FLANGE

$

$

Not available

14

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

15

Bear Cat 16326

SHEAVE, 2B5.2 SDS

$130.99

$

Usually ships in 3-7 days

0

16

Bear Cat 16347

BELT, 2B70 BANDED ARAMID

$136.99

$

Usually ships in 3-7 days

0

17

Bear Cat 16552

BUSHING, SD 1-7/16"

$60.99

$

Usually ships in 3-7 days

0

18

MUFFLER, BRIGGS 25 HP (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

19

Bear Cat 31605-00

METER, TACH/HOUR

$115.99

$

Usually ships in 3-7 days

0

20

ENGINE, 25 HP BRIGGS (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

21

Bear Cat 70321-00

SPACER, .334 X .50 X .29

$18.99

$

Usually ships in 3-7 days

0

22

Bear Cat 70867-12

GUIDE, BELT DL ENGINE MOUNT

$

$

Not available

23

73382-12

WELDMENT, ENGINE PLATE

$

$

Not available

24

73383-12

PLATE, DL ENGINE SHIELD

$

$

Not available

25

Bear Cat 75180-12

WELDMENT, SHIELD HEAT

$

$

Not available

Bear Cat 14629-00

CABLE, 50" NEG

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 14985-00

CABLE, 48" POS

Note: (NOT SHOWN)

$

$

Not available

Bear Cat 33653-00

WIRE ASSEMBLY, ENGINE KILL

Note: (NOT SHOWN)

$52.99

$

Usually ships in 3-7 days

0
