DL 12 - Bear Cat 12" Debris Loader, 896cc Briggs & Stratton (SN: H04989 & Above) Frame Parts Diagram

12" Debris Loader, 896cc Briggs & Stratton

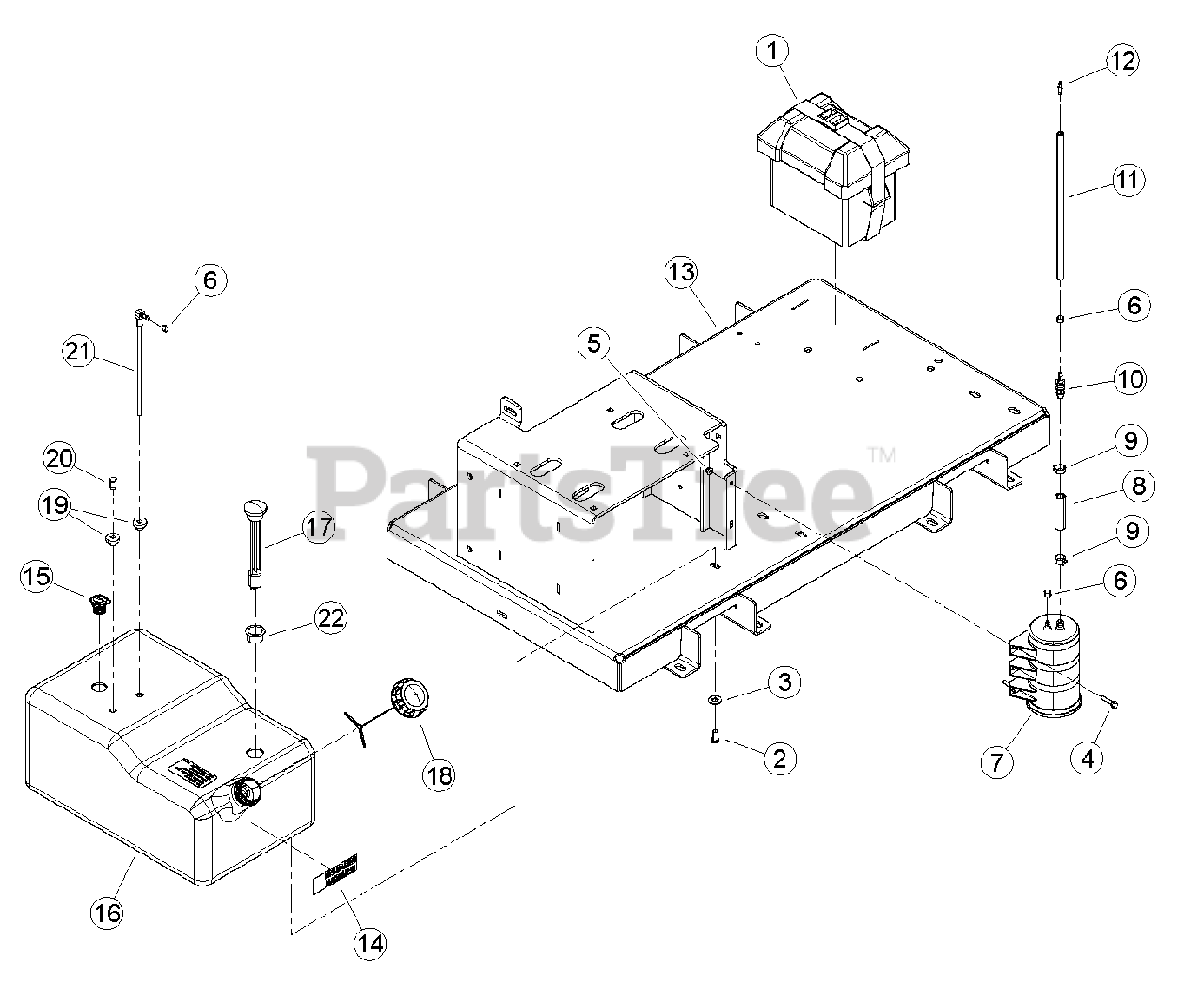

Frame Parts Diagram

  • Title

1

Bear Cat 12839

BOX, SMALL BATTERY

$88.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15005

BOLT, 3/8 X 3/4 GR5 HEX CAPSCREW ZP

$

$

Not available

3

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

4

15165-00

BOLT, 1/4 X 1-1/4 FLANGE NC

$

$

Not available

5

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK FLANGE

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16378

CLAMP, 15/32 SPRING

$4.49

$

Usually ships in 3-7 days

0

7

Bear Cat 32543-00

CARBON CANISTER, 1000CC

$82.99

$

Usually ships in 3-7 days

0

8

Bear Cat 32845-00

HOSE, 1/2" X 3" FUEL LINE

$32.99

$

Usually ships in 3-7 days

0

9

Bear Cat 32846-00

CLAMP, SPRING 1/2" ID HOSE

$9.49

$

Usually ships in 3-7 days

0

10

Bear Cat 32847-00

FITTING, REDUCER 1/2" TO 1/4" BARB

$26.99

$

Usually ships in 3-7 days

0

11

33651-00

HOSE, 14 INCH FUEL LINE

$

$

Not available

12

33707-00

FITTING, 3/16" X 1/4" VACUUM

$

$

Not available

13

73378-12

WELDMENT, BASE DL12

$

$

Not available

Bear Cat 77711-00

ASSEMBLY, FUEL TANK

Note: (INCLUDES ITEMS 14-22)

$448.99

$

Usually ships in 3-7 days

0

14

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

15

Bear Cat 32542-00

VALVE, ROLL OVER

$190.99

$

In Stock, only 1 left!

0

16

32822-00

TANK, ROTOMOLDED FUEL

$

$

Not available

17

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$60.99

$

Usually ships in 3-7 days

0

18

Bear Cat 32824-00

CAP, NON-VENTED EPA/CARB APPROVED

$41.99

$

Usually ships in 3-7 days

0

19

Bear Cat 36689-00

GROMMET, TANK FITTING

$3.49

$

Usually ships in 3-7 days

0

20

Bear Cat 36690-00

PLUG, TANK VENT

$10.99

$

Usually ships in 3-7 days

0

21

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$26.99

$

Usually ships in 3-7 days

0

22

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$8.49

$

Usually ships in 3-7 days

0

Bear Cat 71379

HOSE, 20" FUEL LINE

Note: (NOT SHOWN)

$53.99

$

Usually ships in 3-7 days

0

Bear Cat 76771-00

HOSE, 28 INCH FUEL LINE 1/4"

Note: (NOT SHOWN)

$64.99

$

Usually ships in 3-7 days

0
