DL 12 - Bear Cat 12" Debris Loader, 896cc Briggs & Stratton (SN: H04989 & Above) Optional Trailer (Hitch) Parts Diagram

12" Debris Loader, 896cc Briggs & Stratton

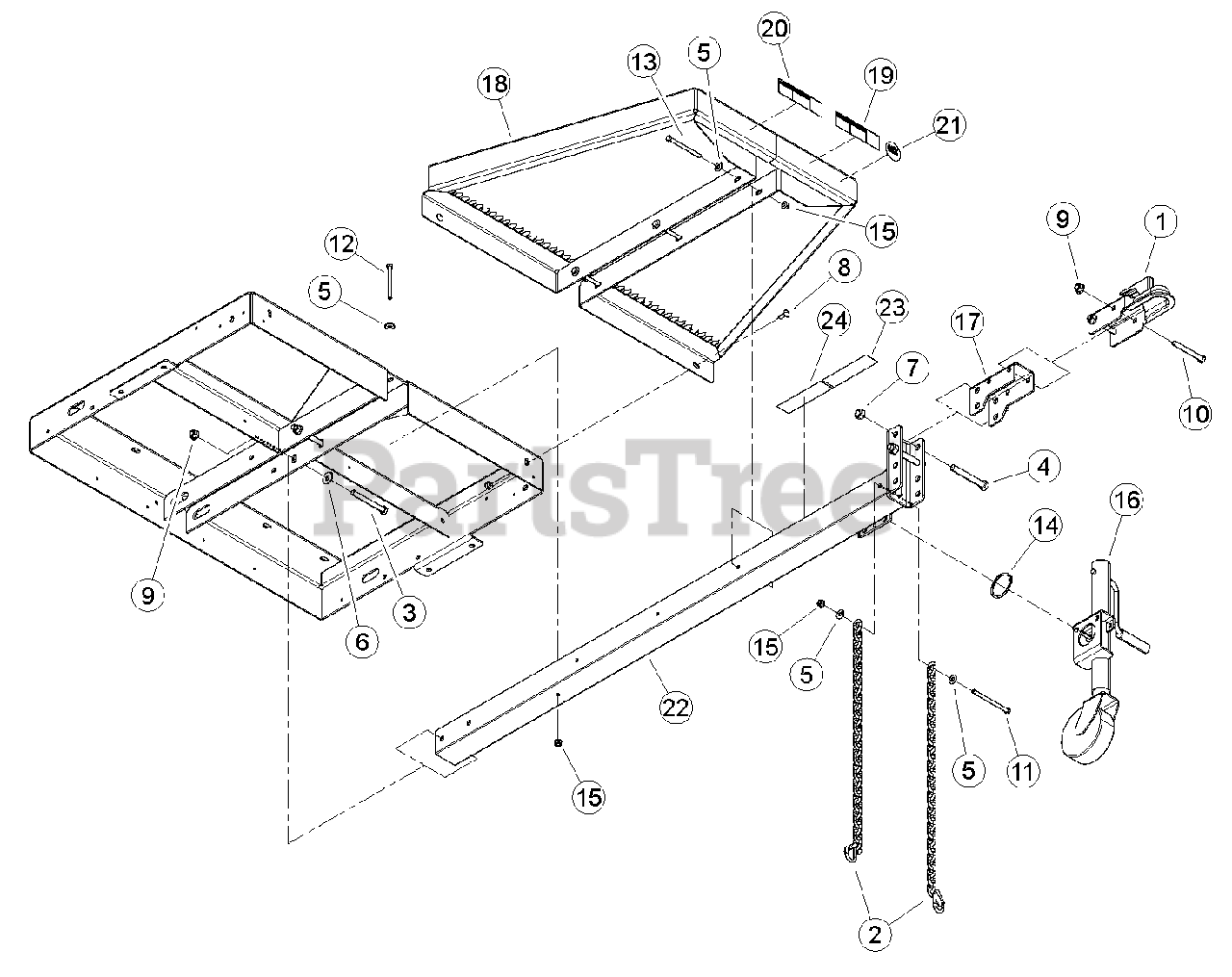

Optional Trailer (Hitch) Parts Diagram

  • Title

1

Bear Cat 14257-00

COUPLER, 2 IN

$111.99

$

Usually ships in 3-7 days

0

2

Bear Cat 14381-00

CHAIN, SAFETY 5000 LB W/ LATCH

$

$

Not available

3

15017

BOLT, 1/2 X 4-1/2" GR5 HHCS NC ZP

$

$

Not available

4

15021

BOLT, 5/8 X 4-1/2 HEX HD G5 ZP

$

$

Not available

5

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

6

Bear Cat 15034

WASHER, 1/2 FLAT

$0.99

$

Usually ships in 3-7 days

0

7

15050

NUT, 5/8" CENTERLOCK ZP GR5

$

$

Not available

8

15057

BOLT, 3/8-16 X 1 GR5 CRG

$

$

Not available

9

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

10

15174

BOLT, 1/2 X 4 HEX CPS G5 ZP

$

$

Not available

11

15205

BOLT, 3/8 X 5" GR5 HEX CPS ZP

$

$

Not available

12

15272

BOLT, 3/8 X 4" HHCS GR5 NC ZP

$

$

Not available

13

Bear Cat 15274

BOLT, 3/8 X 4-1/2" HHCS GR5 NC ZP

$

$

Not available

14

Bear Cat 15841-00

SNAP RING, 2-1/2 EXTERNAL

$9.99

$

Usually ships in 3-7 days

0

15

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

16

Bear Cat 16616

JACK, PIVOTING W/ SWIVEL CASTOR

$277.99

$

In Stock, only 1 left!

0

17

Bear Cat 77080-12

MOUNT, COUPLER

$

$

Not available

18

77500-00

ASSEMBLY, STORAGE HITCH

Note: (INCLUDES ITEMS 19-21)

$

$

Not available

19

Bear Cat 32328-00

DECAL, TRAILER ELECTRICAL

$8.49

$

Usually ships in 3-7 days

0

20

32330-00

DECAL, CHECK WHEELS

$

$

Not available

21

32361-00

DECAL, NATM COMPLIANCE

$

$

Not available

22

77501-00

ASSEMBLY, DL HITCH

Note: (INCLUDES ITEMS 23 & 24)

$

$

Not available

23

Bear Cat 32327-00

DECAL, SAFETY CHAINS

$8.49

$

Usually ships in 3-7 days

0

24

32332-00

DECAL, SAFE COUPLING

$

$

Not available
