DL 12653 - Bear Cat 12" Debris Loader, 653cc Subaru (SN: B00001 - H03001) Housing (Part 1) Parts Diagram

12" Debris Loader, 653cc Subaru

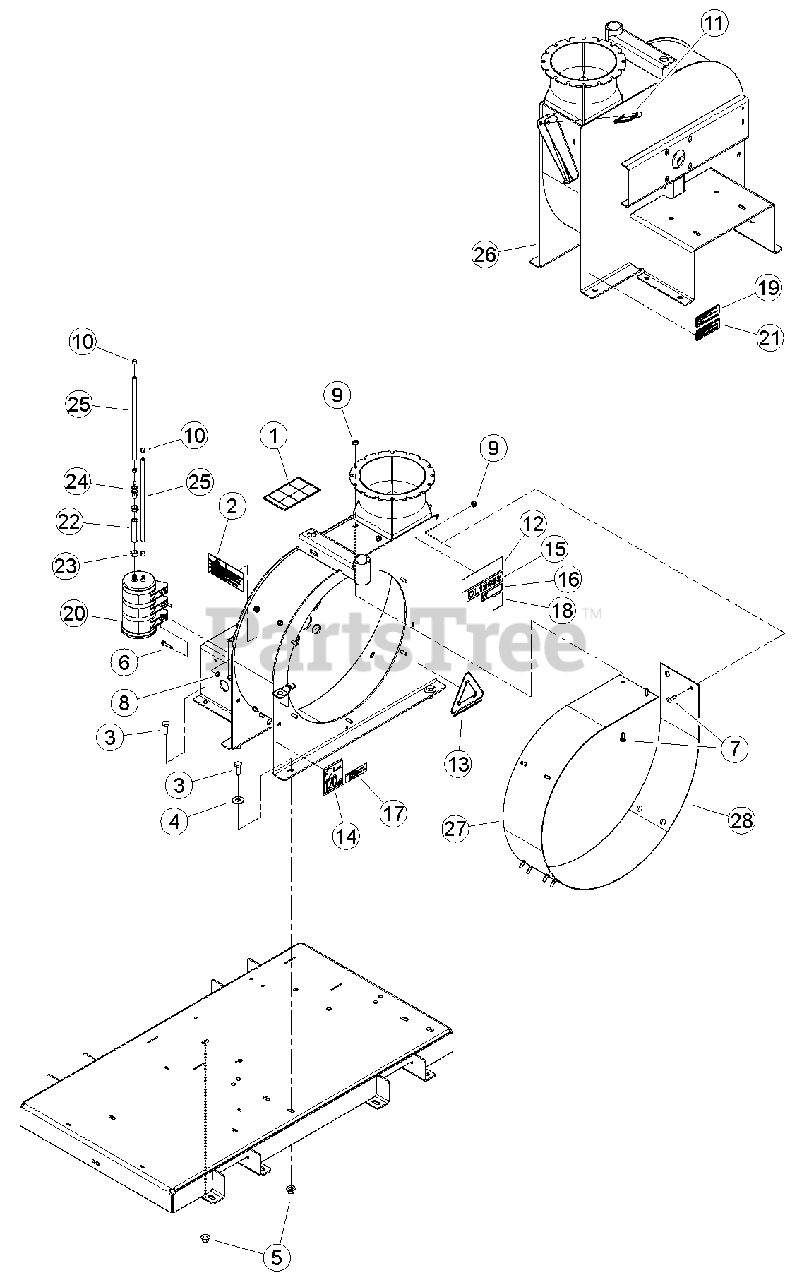

Housing (Part 1) Parts Diagram

  • Title
1

Bear Cat 12172

DECAL, OPERATING INSTRUCTIONS ISO

$7.49

$

Usually ships in 3-7 days

0

2

Bear Cat 14942-00

DECAL, MUTILINGUAL MANUAL

$3.49

$

Usually ships in 3-7 days

0

3

15013

BOLT, 1/2 X 1-1/4" GR5 HHCS NC ZP

$

$

Not available

4

Bear Cat 15034

WASHER, 1/2" FLAT ZP

$

$

Not available

5

15162-00

NUT, 1/2-13 NYLOCK FLANGE

$

$

Not available

6

15165-00

BOLT, 1/4 X 1-1/4 FLANGE NC

$

$

Not available

7

Bear Cat 15301

BOLT, 5/16 X 1" GR5 CRG ZP

$

$

Not available

8

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15904-00

NUT, 5/16-18 NYLOCK-FLANGE

$

$

Not available

10

Bear Cat 16378

CLAMP, 15/32 SPRING

$3.99

$

Usually ships in 3-7 days

0

11

16808

PIN, 3/8 X 2-3/4" SNAP

$

$

Not available

12

Bear Cat 17913

DECAL, ECHO BEARCAT 6.82 X 1.90

$6.49

$

Usually ships in 3-7 days

0

13

Bear Cat 31390-00

DECAL, COLLECT IT

$34.99

$

Usually ships in 3-7 days

0

14

Bear Cat 31502-00

DECAL, 120 DB

$11.99

$

Usually ships in 3-7 days

0

15

31665-00

DECAL, MODEL DL12653

$

$

Not available

16

31667-00

DECAL, DL12653 INFORMATION

$

$

Not available

17

Bear Cat 31890-00

DECAL, ATLANTIC BRIDGE LTD INFO

$9.99

$

Usually ships in 3-7 days

0

18

Bear Cat 32392-00

DECAL, ECHO BEARCAT QR CODE

$2.99

$

Usually ships in 3-7 days

0

19

32519-00

DECAL, EPA EVAP

$

$

Not available

20

Bear Cat 32543-00

CARBON CANISTER, 1000CC

$78.99

$

Usually ships in 3-7 days

0

21

32730-00

DECAL, CARB EVAP

$

$

Not available

22

Bear Cat 32845-00

HOSE, 1/2 X 3" FUEL LINE

$28.99

$

Usually ships in 3-7 days

0

23

Bear Cat 32846-00

CLAMP, SPRING 1/2" ID HOSE

$8.99

$

Usually ships in 3-7 days

0

24

Bear Cat 32847-00

FITTING, REDUCER 1/2" TO 1/4" BARB

$25.99

$

Usually ships in 3-7 days

0

25

74127-00

HOSE, 23" FUEL

$

$

Not available

26

Bear Cat 77034-35

WELDMENT, FAN HOUSING

$2322.99

$

Usually ships in 3-7 days

0

27

Bear Cat 77073-00

WRAP, HOUSING FAN

$321.99

$

Usually ships in 3-7 days

0

28

Bear Cat 77073-00

WRAP, HOUSING FAN

$321.99

$

Usually ships in 3-7 days

0
