DL 12720 - Bear Cat 12" Debris Loader, 720cc Subaru (SN: B00001 - H03001) Frame (Part 2) Parts Diagram

12" Debris Loader, 720cc Subaru

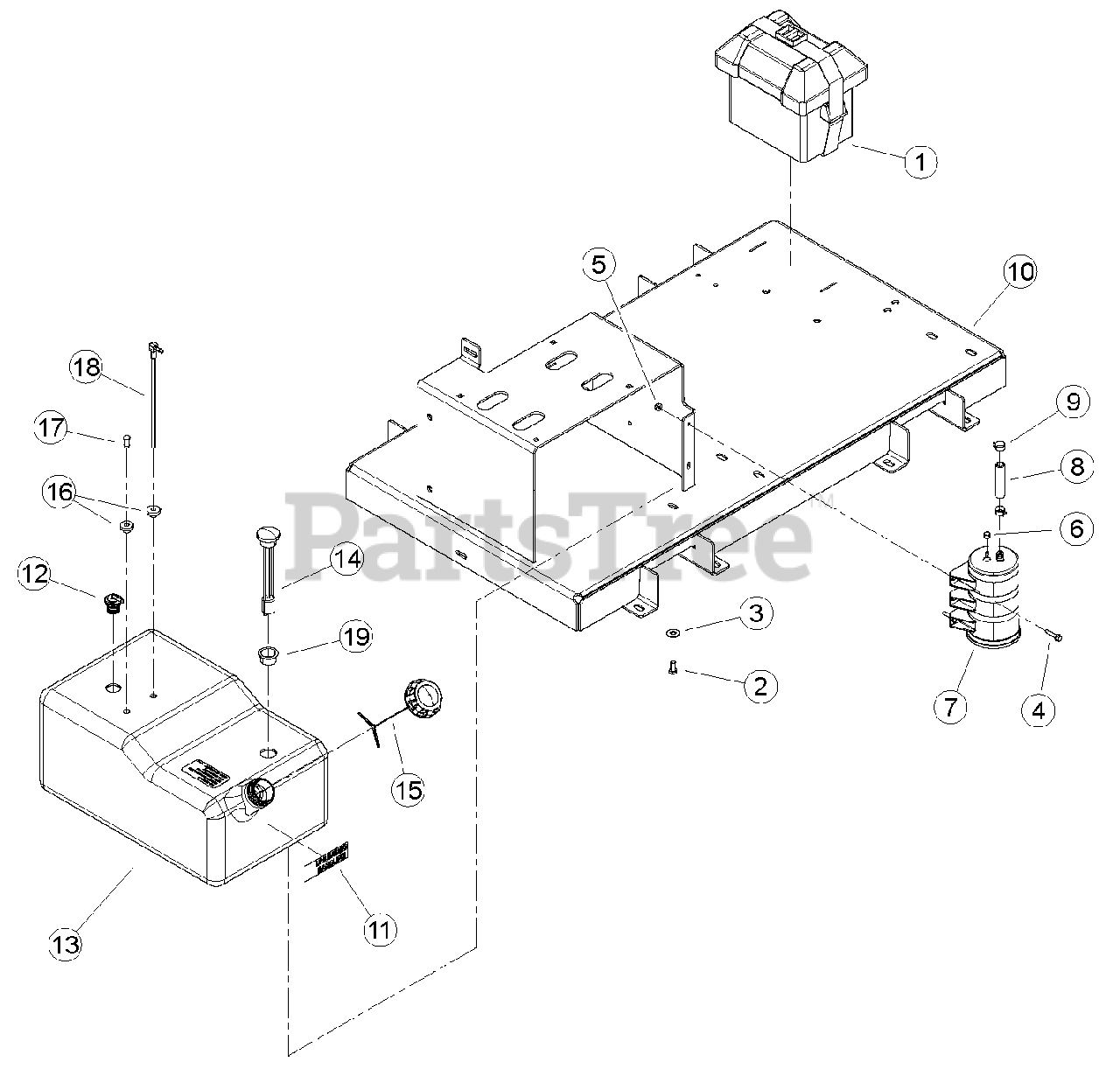

Frame (Part 2) Parts Diagram

  • Title

1

Bear Cat 12839

BOX, SMALL BATTERY

$88.99

$

Usually ships in 3-7 days

0

2

Bear Cat 15005

BOLT, 3/8 X 3/4 GR5 HEX CAPSCW ZP

$

$

Not available

3

Bear Cat 15031

WASHER, 3/8" FLAT ZP

$

$

Not available

4

15165-00

BOLT, 1/4 X 1-1/4 FLANGE NC

$

$

Not available

5

Bear Cat 15900-00

NUT, 1/4-20 NYLOCK-FLANGE

$0.99

$

Usually ships in 3-7 days

0

6

Bear Cat 16378

CLAMP, 15/32 SPRING

$4.49

$

Usually ships in 3-7 days

0

7

Bear Cat 32543-00

CARBON CANISTER, 1000CC

$82.99

$

Usually ships in 3-7 days

0

8

Bear Cat 32845-00

HOSE, 1/2 X 3" FUEL LINE

$32.99

$

Usually ships in 3-7 days

0

9

Bear Cat 32846-00

CLAMP, SPRING 1/2" ID HOSE

$9.49

$

Usually ships in 3-7 days

0

10

Bear Cat 77046-12

WELDMENT, BASE DL12720

$1648.99

$

Usually ships in 3-7 days

0

Bear Cat 77711-00

ASSEMBLY, FUEL TANK

Note: (INCLUDES ITEMS 11-19)

$448.99

$

Usually ships in 3-7 days

0

11

Bear Cat 18982-00

DECAL, UNLEADED GASOLINE

$5.49

$

Usually ships in 3-7 days

0

12

Bear Cat 32542-00

VALVE, ROLL OVER

$190.99

$

In Stock, only 1 left!

0

13

32822-00

TANK, ROTOMOLDED FUEL

$

$

Not available

14

Bear Cat 32823-00

GAUGE, FUEL LEVEL KELCH 100

$60.99

$

Usually ships in 3-7 days

0

15

Bear Cat 32824-00

CAP, NON-VENTED EPA/CARB APPROVED

$41.99

$

Usually ships in 3-7 days

0

16

Bear Cat 36689-00

GROMMET, TANK FITTING

$3.49

$

Usually ships in 3-7 days

0

17

Bear Cat 36690-00

PLUG, TANK VENT

$10.99

$

Usually ships in 3-7 days

0

18

Bear Cat 36694-00

FITTING, TANK FUEL PICK-UP TUBE

$26.99

$

Usually ships in 3-7 days

0

19

Bear Cat 36696-00

GROMMET, KELCH 100 GAUGE

$8.49

$

Usually ships in 3-7 days

0

Bear Cat 73079

HOSE, 38" FUEL LINE

Note: (NOT SHOWN)

$68.99

$

Usually ships in 3-7 days

0

74127-00

HOSE, 23" FUEL

Note: (NOT SHOWN)

$

$

Not available
