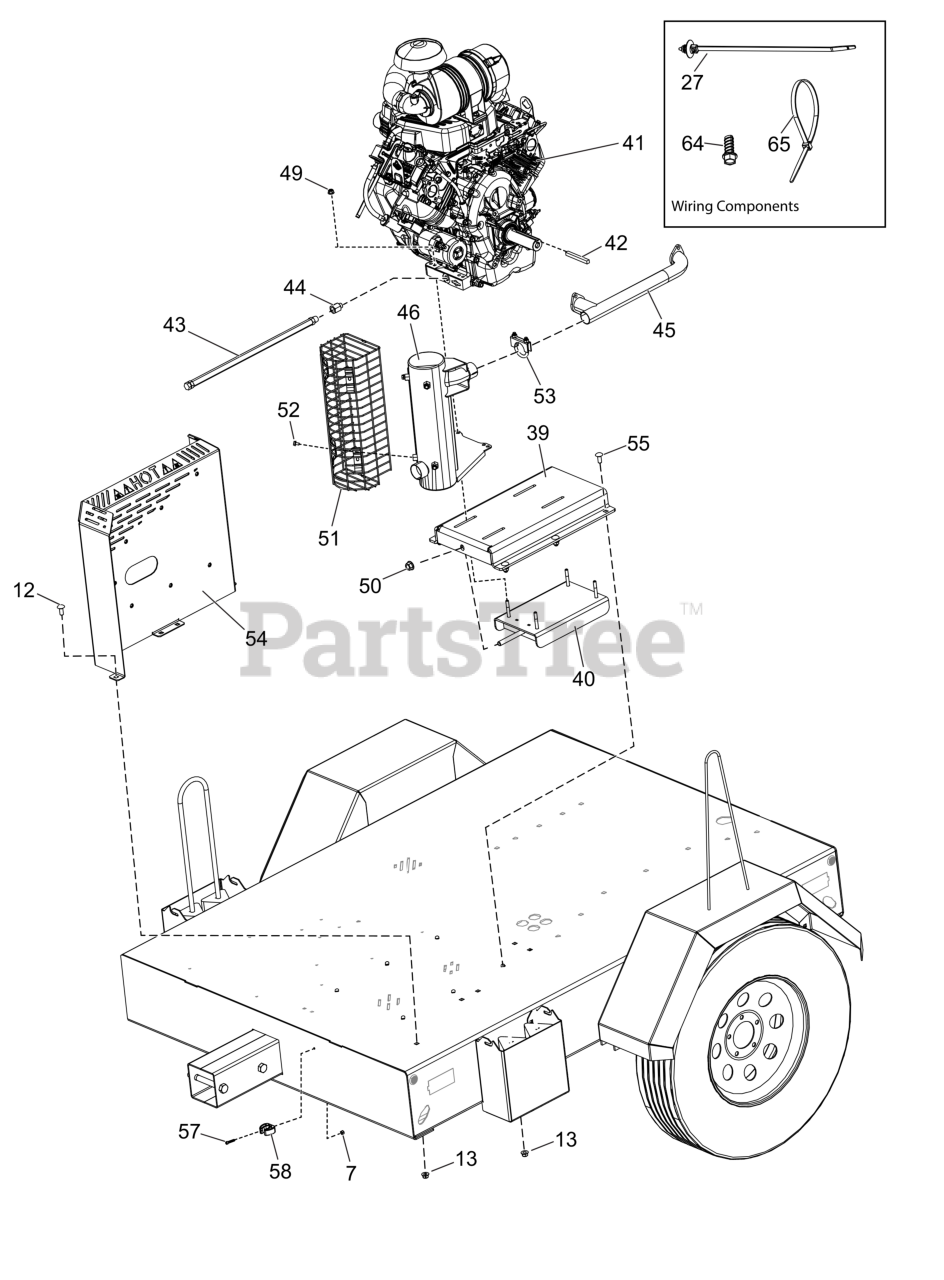

DL 3701 VETR - Billy Goat 14" Intake Debris Loader Vacuum Engine and Muffler Components Parts Diagram

14" Intake Debris Loader Vacuum

Engine and Muffler Components Parts Diagram

  • Title

7

Billy Goat 8155007

NUT LOCK #10-24 HEX

$0.99

$

Usually ships in 2-11 days

0

7

Billy Goat 8155007

NUT LOCK #10-24 HEX

$0.99

$

Usually ships in 2-11 days

0

12

Billy Goat 8024058

BLT-RDHDSSQNK, .375"-16 X 1.000 G5 ZP

$1.49

$

In Stock, Qty 5

0

12

Billy Goat 8024058

BLT-RDHDSSQNK, .375"-16 X 1.000 G5 ZP

$1.49

$

In Stock, Qty 5

0

13

Billy Goat 8165003

NUT-HEX-NYLK, FLG .375"-16 ZP

$0.99

$

In Stock, Qty 7

0

13

Billy Goat 8165003

NUT-HEX-NYLK, FLG .375"-16 ZP

$0.99

$

In Stock, Qty 7

0

27

Billy Goat 5108325

CABLE TIE, NYLON, PUSH-IN, 8" OAL

$

$

Currently unavailable

27

Billy Goat 5108325

CABLE TIE, NYLON, PUSH-IN, 8" OAL

$

$

Currently unavailable

39

Billy Goat 27794114

WA, ENGINE BASE

$

$

Currently unavailable

39

Billy Goat 27794114

WA, ENGINE BASE

$

$

Currently unavailable

40

Billy Goat 794111

WA, ENGINE SLIDE PLATE

$164.99

$

Usually ships in 2-11 days

0

40

Billy Goat 794111

WA, ENGINE SLIDE PLATE

$164.99

$

Usually ships in 2-11 days

0

41

ENGINE, HORZ 37HP VANGUARD EFI ETC

$

$

Not available

41

ENGINE, HORZ 37HP VANGUARD EFI ETC

$

$

Not available

42

Billy Goat 794269

KEY, 3/8" SQ X 3.500"

$

$

Currently unavailable

42

Billy Goat 794269

KEY, 3/8" SQ X 3.500"

$

$

Currently unavailable

43

Billy Goat 5102781

HOSE, OIL DRAIN

$23.99

$

Usually ships in 2-11 days

0

43

Billy Goat 5102781

HOSE, OIL DRAIN

$23.99

$

Usually ships in 2-11 days

0

44

Billy Goat 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF

$

$

Currently unavailable

44

Billy Goat 5100366

METRIC ADAPTER, M14-1.5" TO 3/8 NPTF

$

$

Currently unavailable

45

5109328

MANIFOLD 35HP BRIGGS, BLWR

$

$

Not available

45

5109328

MANIFOLD 35HP BRIGGS, BLWR

$

$

Not available

46

Billy Goat 841405

MUFFLER, EFI RIGHT OUTLET ASSY NO O2

$132.99

$

Usually ships in 2-11 days

0

46

Billy Goat 841405

MUFFLER, EFI RIGHT OUTLET ASSY NO O2

$132.99

$

Usually ships in 2-11 days

0

49

Billy Goat 8165002

NUT-HEX-NYLK, FLG .3125"-18 ZP

$0.99

$

In Stock, Qty 5

0

49

Billy Goat 8165002

NUT-HEX-NYLK, FLG .3125"-18 ZP

$0.99

$

In Stock, Qty 5

0

50

Billy Goat 794252

NUT-HEX-FGLK, .500"-13 ZP

$1.99

$

Usually ships in 2-11 days

0

50

Billy Goat 794252

NUT-HEX-FGLK, .500"-13 ZP

$1.99

$

Usually ships in 2-11 days

0

51

Billy Goat 792226-2

GUARD MUFFLER DL35

$59.99

$

Usually ships in 2-11 days

0

51

Billy Goat 841392

GUARD, Muffler

Note: (was 792226-2)

$

$

Currently unavailable

52

Billy Goat 792226-5

SCREW MUFFLER DL35

$0.99

$

Usually ships in 2-11 days

0

52

Billy Goat 792226-5

SCREW MUFFLER DL35

$0.99

$

Usually ships in 2-11 days

0

53

Billy Goat 5107305

CLAMP, MUFFLER, Z3000

Note: (Includes item # 53-1).

$

$

Not available

53

Billy Goat 5107305

CLAMP, MUFFLER, Z3000

Note: (Includes item # 53-1).

$

$

Not available

53-1

Billy Goat 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 350346)

Note: (Nuts for ref # 53).

$0.99

$

In Stock, only 1 left!

0

53-1

Billy Goat 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 350346)

Note: (Nuts for ref # 53).

$0.99

$

In Stock, only 1 left!

0

54

Billy Goat 794116

WA, ENGINE BACK PLATE

$

$

Currently unavailable

54

Billy Goat 794116

WA, ENGINE BACK PLATE

$

$

Currently unavailable

55

Billy Goat 8024059

BOLT CARRIAGE 3/8-16 X 1 1/4” ZP

$1.49

$

Usually ships in 2-11 days

0

55

Billy Goat 8024059

BOLT CARRIAGE 3/8-16 X 1 1/4” ZP

$1.49

$

Usually ships in 2-11 days

0

57

Billy Goat 520018

SCREWCAP SOCKET HEAD #10-24 x 1"

$0.99

$

Usually ships in 2-11 days

0

57

Billy Goat 520018

SCREWCAP SOCKET HEAD #10-24 x 1"

$0.99

$

Usually ships in 2-11 days

0

58

Billy Goat 5108265

CLIP, .750" O.D. OIL DRAIN HOSE

$

$

Currently unavailable

58

Billy Goat 5108265

CLIP, .750" O.D. OIL DRAIN HOSE

$

$

Currently unavailable

64

Billy Goat 8122082

SCREW SM 1/4"X3/4" TYPE AB HX WF

$1.49

$

Usually ships in 2-11 days

0

64

Billy Goat 8122082

SCREW SM 1/4"X3/4" TYPE AB HX WF

$1.49

$

Usually ships in 2-11 days

0

65

Billy Goat 900407

TY WRAP

$0.99

$

In Stock, only 2 left!

0

65

Billy Goat 900407

TY WRAP

$0.99

$

In Stock, only 2 left!

0
