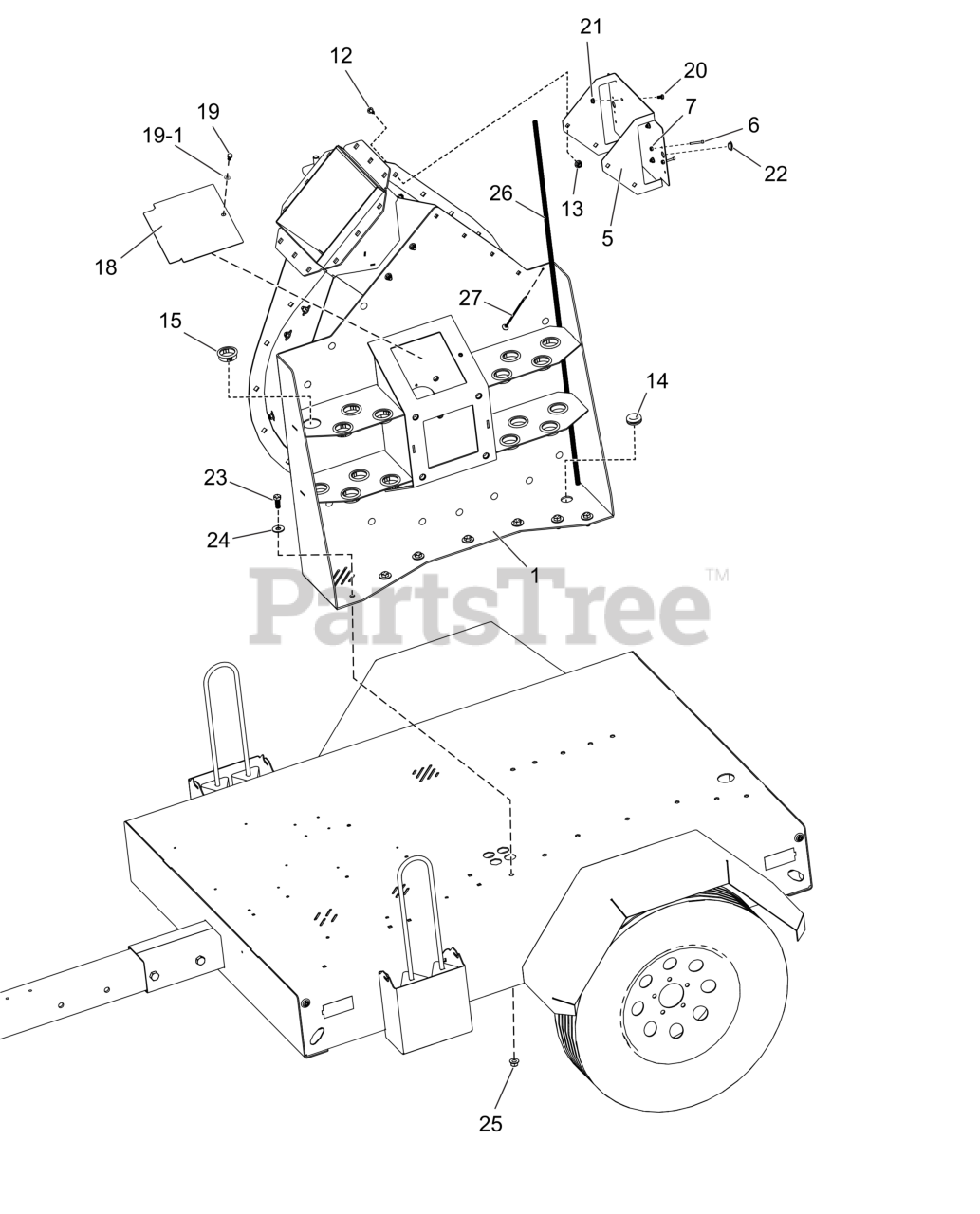

DL 3701 VETR - Billy Goat 14" Intake Debris Loader Vacuum Frame Components Parts Diagram

14" Intake Debris Loader Vacuum

Frame Components Parts Diagram

  • Title

1

Billy Goat 27794110

WA, HOUSING BACK PLATE

Note: (Refer to Note: *)Note: *In the event of replacing the back housing plate (Item 1), do not reuse screws (Item 23). These screws must be replaced. Torque screws to 90 ft-lbs during replacement.

$

$

Currently unavailable

1

Billy Goat 27794110

WA, HOUSING BACK PLATE

Note: (Refer to Note: *)Note: *In the event of replacing the back housing plate (Item 1), do not reuse screws (Item 23). These screws must be replaced. Torque screws to 90 ft-lbs during replacement.

$

$

Currently unavailable

5

Billy Goat 794242A

BRKT, LICENSE PLT MNT PAINTED

$

$

Currently unavailable

5

Billy Goat 794242

BRKT, LICENSE PLT MNT PAINTED

$

$

Currently unavailable

6

Billy Goat 794254

SCR-CAP, SH #10-24 X 1.500" PT BO

$

$

Currently unavailable

6

Billy Goat 794254

SCR-CAP, SH #10-24 X 1.500" PT BO

$

$

Currently unavailable

7

Billy Goat 8155007

NUT LOCK #10-24 HEX

$0.99

$

Usually ships in 2-11 days

0

7

Billy Goat 8155007

NUT LOCK #10-24 HEX

$0.99

$

Usually ships in 2-11 days

0

12

Billy Goat 8024058

BLT-RDHDSSQNK, .375"-16 X 1.000 G5 ZP

$1.49

$

In Stock, Qty 5

0

12

Billy Goat 8024058

BLT-RDHDSSQNK, .375"-16 X 1.000 G5 ZP

$1.49

$

In Stock, Qty 5

0

13

Billy Goat 8165003

NUT-HEX-NYLK, FLG .375"-16 ZP

$0.99

$

In Stock, Qty 7

0

13

Billy Goat 8165003

NUT-HEX-NYLK, FLG .375"-16 ZP

$0.99

$

In Stock, Qty 7

0

14

Billy Goat 5106788

GROMMET, RUBBER

$6.99

$

Usually ships in 2-11 days

0

14

Billy Goat 5106788

GROMMET, RUBBER

$6.99

$

Usually ships in 2-11 days

0

15

Billy Goat 382292

BUSHING, SNAP 1.81" ID

$1.99

$

In Stock, only 3 left!

0

15

Billy Goat 27382292

BUSHING, SNAP 1.81" ID

$

$

Currently unavailable

18

Billy Goat 27794422

PLT, BRG ACCESS PAINTED

$

$

Currently unavailable

18

Billy Goat 27794422

PLT, BRG ACCESS PAINTED

$

$

Currently unavailable

19

Billy Goat 8041026

SCREWCAP 5/16"-18 X 3/4" GR5 HCS ZP

$0.99

$

In Stock, Qty 8

0

19

Billy Goat 8041026

SCREWCAP 5/16"-18 X 3/4" GR5 HCS ZP

$0.99

$

In Stock, Qty 8

0

19-1

Billy Goat 8172008

WASHER 5/16 SAE Z/P

$0.99

$

In Stock, Qty 10

0

19-1

Billy Goat 8172008

WASHER 5/16 SAE Z/P

$0.99

$

In Stock, Qty 10

0

20

Billy Goat 8041002

SCREWCAP 1/4"-20 X 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

20

Billy Goat 8041002

SCREWCAP 1/4"-20 X 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

21

Billy Goat 900455

NUT WHIZ 1/4"-20 WASH FACE

$1.49

$

Usually ships in 2-11 days

0

21

Billy Goat 900455

NUT WHIZ 1/4"-20 WASH FACE

$1.49

$

Usually ships in 2-11 days

0

22

Billy Goat 794255

GRMT, .65" ID X .75" HOLE X .03"-.09"PNL

$

$

Currently unavailable

22

Billy Goat 27794255

GRMT, .65" ID X .75" HOLE X .03"-.09"PNL

$

$

Currently unavailable

23

Billy Goat 80004618

CAPSCREW, Hex Head, 1/2-13 X 1-1/2, GR5

Note: (Refer to Note: **)Note: **Torque screws to 90 ft-lbs during replacement.

$

$

Currently unavailable

23

Billy Goat 80004618

CAPSCREW, Hex Head, 1/2-13 X 1-1/2, GR5

Note: (Refer to Note: **)Note: **Torque screws to 90 ft-lbs during replacement.

$

$

Currently unavailable

24

Billy Goat 8171006

WASHER 1/2 USS

$0.99

$

In Stock, Qty 8

0

24

Billy Goat 8171006

WASHER 1/2 USS

$0.99

$

In Stock, Qty 8

0

25

Billy Goat 5025396

NUT, Hex Flange, Nylock, 1/2-13

$0.99

$

Usually ships in 2-11 days

0

25

Billy Goat 5025396

NUT, Hex Flange, Nylock, 1/2-13

$0.99

$

Usually ships in 2-11 days

0

26

Billy Goat 794413

SPLIT LOOM, 3/8" ID X 50"

$

$

Currently unavailable

26

Billy Goat 27794413

SPLIT LOOM, 3/8" ID X 50"

$

$

Currently unavailable

27

Billy Goat 5108325

CABLE TIE, NYLON, PUSH-IN, 8" OAL

$

$

Currently unavailable

27

Billy Goat 5108325

CABLE TIE, NYLON, PUSH-IN, 8" OAL

$

$

Currently unavailable
