DL 8 - Bear Cat 8" Debris Loader, 404cc Subaru (SN: F03552 - G08591) Engine Parts Diagram

8" Debris Loader, 404cc Subaru

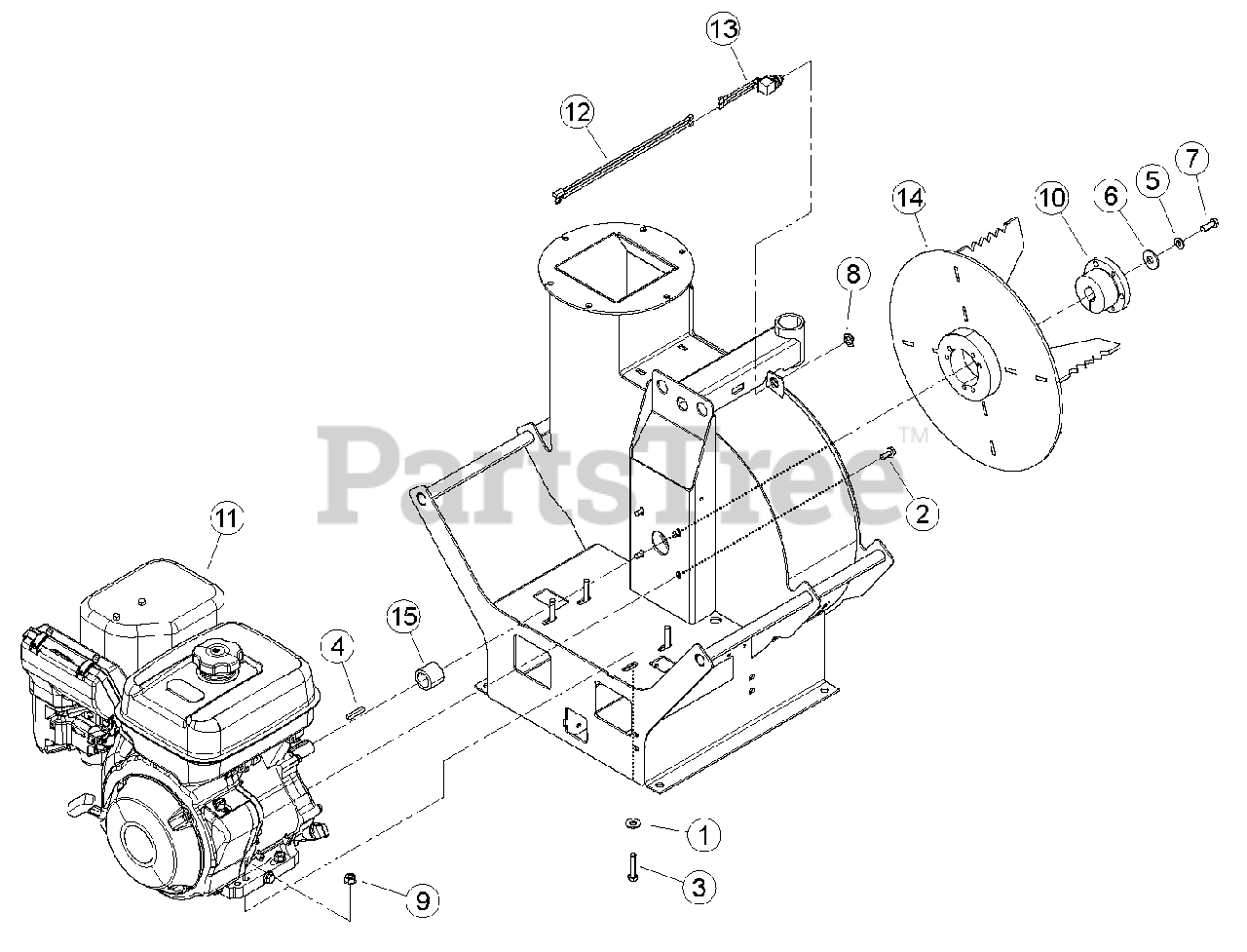

Engine Parts Diagram

  • Title

1

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

2

15118-00

BOLT, 5/16 X 3/4 SERRATED FLANGE NF

$

$

Not available

3

Bear Cat 15141

BOLT, 3/8 X 1-3/4 GR5 HCS ZP

$

$

Not available

4

Bear Cat 15418

KEY, 1/4 SQ X 1-1/2 LG PLAIN

$

$

Not available

5

15644

WASHER, M10 FLAT (10.5 X 20 X 2) YZP

$

$

Not available

6

15664-00

WASHER, 1/2USS G8 ZP

$

$

Not available

7

Bear Cat 15697-00

BOLT, 3/8 X 1" NF GR8 ZP HHCS

$

$

Not available

8

Bear Cat 15775-00

NUT, 5/8-32 JAM

$13.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

10

Bear Cat 16083

BUSHING, 1" SK

$69.99

$

Usually ships in 3-7 days

0

11

ENGINE, SUBARU 404CC EX40 (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST SUBARU INDUSTRIAL ENGINE DEALER)

$

$

Not available

12

Bear Cat 32304-00

HARNESS, SUBARU ENGINE KILL SWITCH

$69.99

$

Usually ships in 3-7 days

0

13

Bear Cat 32310-00

ASSEMBLY, SEALED SWITCH NORMALLY CLOSED

$130.99

$

Usually ships in 3-7 days

0

14

Bear Cat 70245-00

WELDMENT, FAN "BEAR CLAW"
(Superseded to 78028-00)

$799.99

$

Usually ships in 3-7 days

0

15

70464-00

SPACER, 1.50 X 1.25 X 7/32 WALL

$

$

Not available

30525

CONDUIT, SPLIT 1/4" ID BLK POLY

Note: (NOT SHOWN)

$

$

Not available
