DL 8 - Bear Cat 8" Debris Loader, Briggs & Stratton (SN: H05037 & Above) Engine Parts Diagram

8" Debris Loader, 404cc Briggs & Stratton

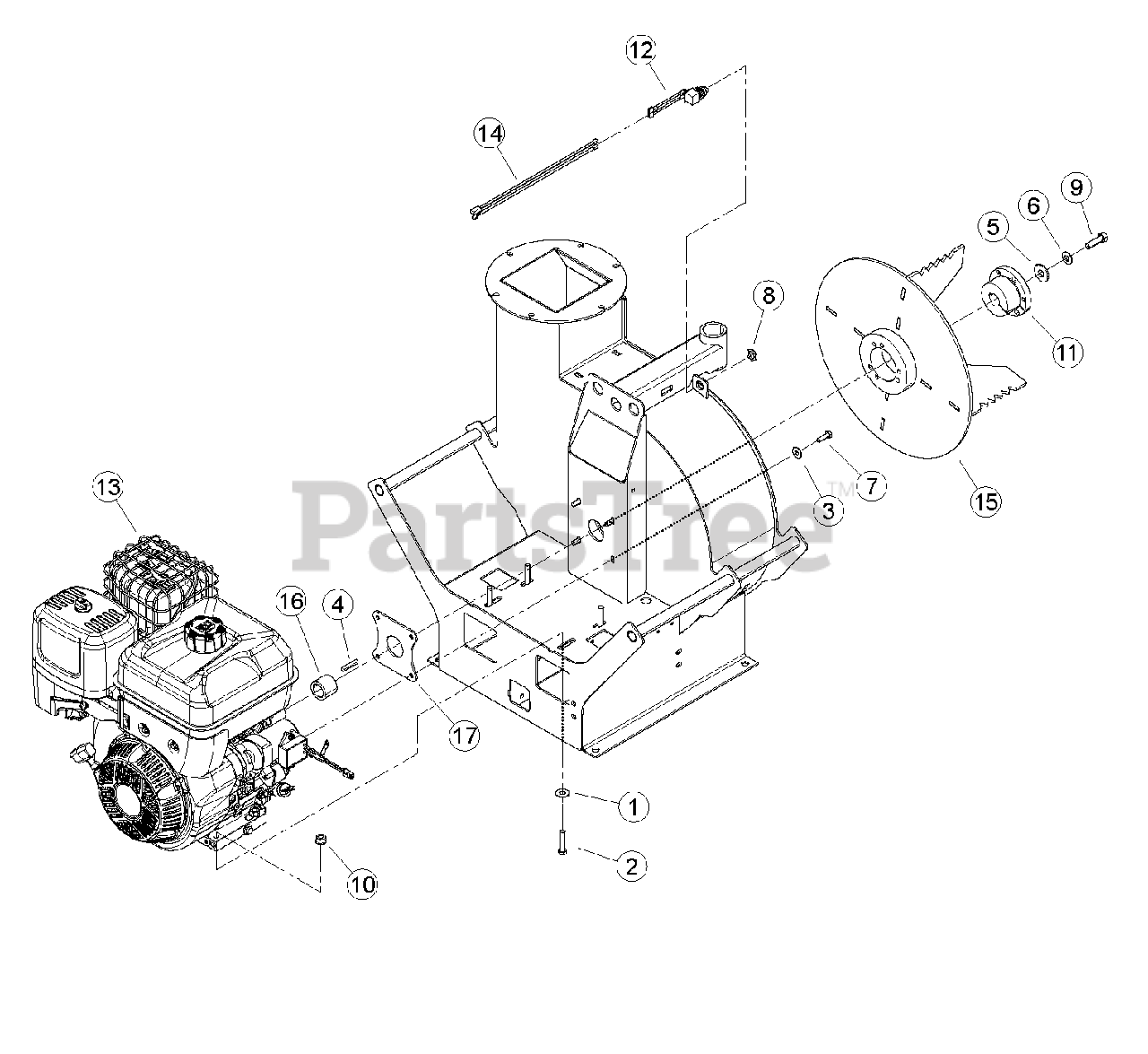

Engine Parts Diagram

  • Title

1

Bear Cat 15031

WASHER, 3/8 FLAT

$

$

Not available

2

Bear Cat 15141

BOLT, 3/8 X 1-3/4 GR5 HCS ZP

$

$

Not available

3

Bear Cat 15250

WASHER, 5/16 FLAT

$

$

Not available

4

Bear Cat 15418

KEY, 1/4 SQ X 1-1/2 LG PLAIN

$

$

Not available

5

15664-00

WASHER, 1/2 USS G8 ZP

$

$

Not available

6

15665-00

WASHER, 3/8 GR8 USS ZP

$

$

Not available

7

Bear Cat 15755-00

BOLT, 5/16-24 X 1" HHCS GR5 ZP

$1.49

$

Usually ships in 3-7 days

0

8

Bear Cat 15775-00

NUT, 5/8-32 JAM

$13.99

$

Usually ships in 3-7 days

0

9

Bear Cat 15778-00

BOLT, 7/16 X 1-1/2 NF GR5 HEX ZP

$2.49

$

Usually ships in 3-7 days

0

10

Bear Cat 15905-00

NUT, 3/8-16 NYLOCK FLANGE

$

$

Not available

11

Bear Cat 16083

BUSHING, 1" SK

$69.99

$

Usually ships in 3-7 days

0

12

Bear Cat 32310-00

ASSEMBLY, SEALED SWITCH NORMALLY CLOSED

$130.99

$

Usually ships in 3-7 days

0

13

ENGINE, 420CC 2100 SERIES B&S (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR NEAREST BRIGGS & STRATTON INDUSTRIAL ENGINE DEALER)

$

$

Not available

14

Bear Cat 33674-00

HARNESS, B&S ENGINE KILL SWITCH

$73.99

$

Usually ships in 3-7 days

0

15

Bear Cat 70245-00

WELDMENT, FAN "BEAR CLAW"
(Superseded to 78028-00)

$799.99

$

Usually ships in 3-7 days

0

16

70464-00

SPACER, 1.50 X 1.25 X 7/32 WALL

$

$

Not available

17

73315-35

PLATE, ENGINE SPACER

$

$

Not available

30525

CONDUIT, SPLIT 1/4" ID BLK POLY

Note: (NOT SHOWN)

$

$

Not available
