DL 8390 - Bear Cat 8" Debris Loader, 390cc Honda (SN: D00001 & Above) Engine Parts Diagram

8" Debris Loader, 390cc Honda

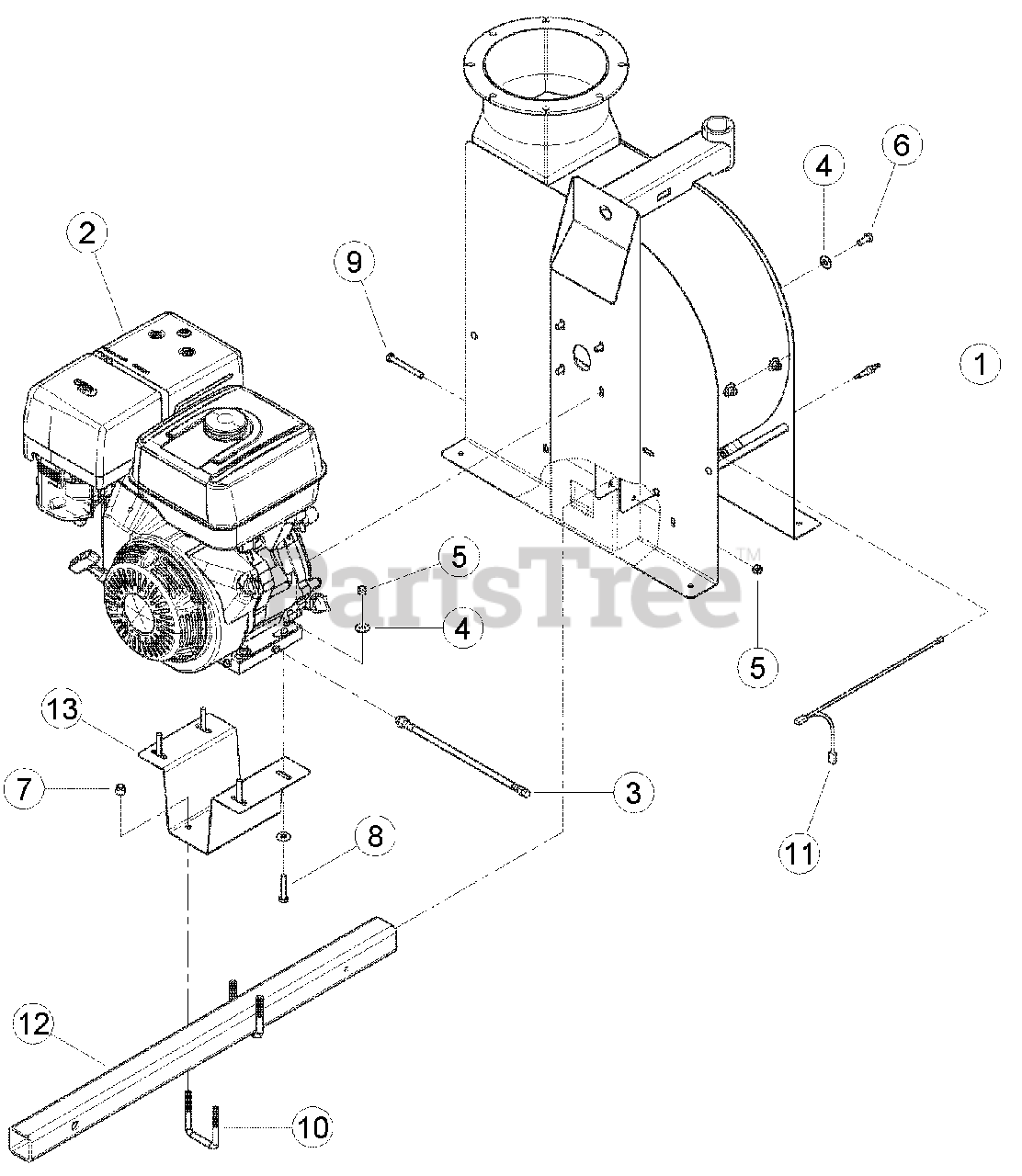

Engine Parts Diagram

  • Title

1

Bear Cat 12014

SWITCH, ENGINE KILL
(Superseded to 78093-00)

$114.99

$

Usually ships in 3-7 days

0

2

ENGINE, 13 HP HONDA (FOR SERVICE SEE ENGINE OWNER'S MANUAL OR YOUR NEAREST AUTHORIZED HONDA ENGINE DEALER)

$

$

Not available

3

Bear Cat 14787-00

HOSE ASSY, CRANKCASE DRAIN

$65.99

$

Usually ships in 3-7 days

0

4

Bear Cat 15250

WASHER, 5/16 FLAT ZP

$

$

Not available

5

Bear Cat 15356

NUT, 5/16 NE NYLOCK ZP

$

$

Not available

6

Bear Cat 15381

BOLT, 5/16-24 X 3/4 HHCS GR5 ZP

$0.99

$

Usually ships in 3-7 days

0

7

Bear Cat 15388

NUT, 3/8 NE NYLOCK ZP

$

$

Not available

8

Bear Cat 15403

BOLT, 5/16-18 X 1-3/4 HCS GR5 ZP

$

$

Not available

9

15560

BOLT, 5/16 X 2-3/4 HCPS GR5

$

$

Not available

10

Bear Cat 15799-00

U-BOLT, 3/8-16 X 2.06 X 3.00 SQ ZP

$22.99

$

Usually ships in 3-7 days

0

11

36151-00

WIRE ASSY', ENGINE KILL

$

$

Not available

12

75709-12

TUBE, HITCH

$

$

Not available

13

Bear Cat 75713-12

MOUNT, ENGINE SUPPORT

$68.99

$

Usually ships in 3-7 days

0
