DLSC 52 (59A40133727) - Cub Cadet Yanmar Driveline Kit for Sc Series Compact Tractors Tractor Driveline Kit (Sc) Parts Diagram

Driveline Kit for Sc Series Compact Tractors

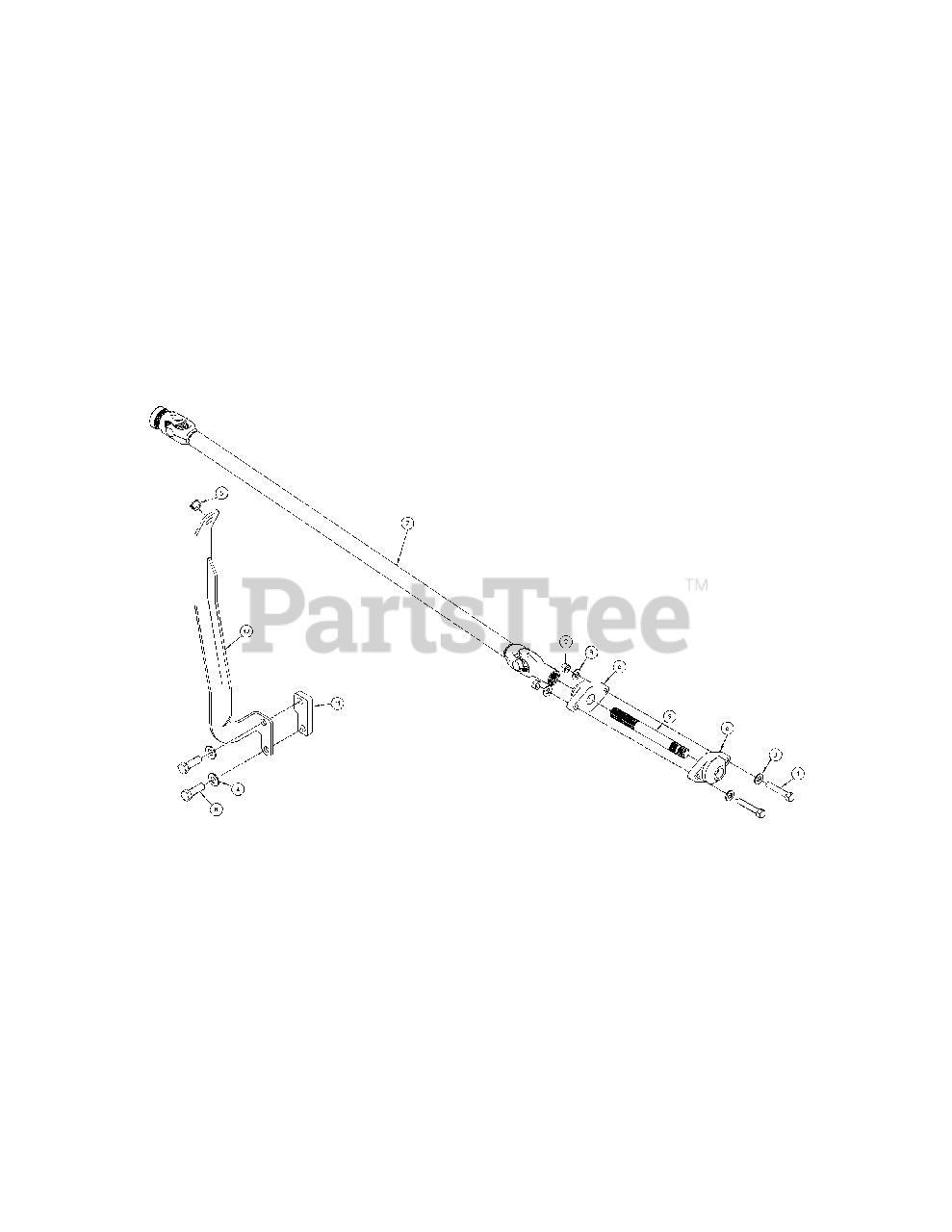

Tractor Driveline Kit (Sc) Parts Diagram

  • Title

1

Cub Cadet YS-007061

HEX HEAD CAP SCREW, 1/2-13 X 2.75 GR 5

$

$

Not available

2

Cub Cadet YS-007508

LOCK NUT, HEX 1/2-13 GR 5

$

$

Not available

3

Cub Cadet YS-008164

FLAT WASHER, 1/2 SAE HARDENED

$

$

Not available

4

Cub Cadet YS-008178

FLAT WASHER, 5/8 HARDENED

$

$

Not available

5

Cub Cadet YS-011965

BUSHING, SNAP

$

$

Not available

6

Cub Cadet YS-012240

BEARING, PILLOW

$

$

Not available

7

Cub Cadet YS-015579

PTO DRIVE LINE, SC

$

$

Not available

8

Cub Cadet YS-018763

HEX HEAD CAP SCREW, M16-2.0 X 50 GR 10.9 FTHD

$

$

Not available

9

Cub Cadet YS-066145

SPLINED SHAFT

$

$

Not available

10

Cub Cadet YS-754035

ROT ROD SUPPORT WELDMENT

$

$

Not available

11

Cub Cadet YS-754039

SPACER PLATE

$

$

Not available

Cub Cadet 59A40133727

DLSC52 Driveline Complete

Note: Order Wholegoods

$

$

Currently unavailable
