DM 220 - Husqvarna Drilling Machine (2015-09) GEAR BOX Parts Diagram

Drilling Machine

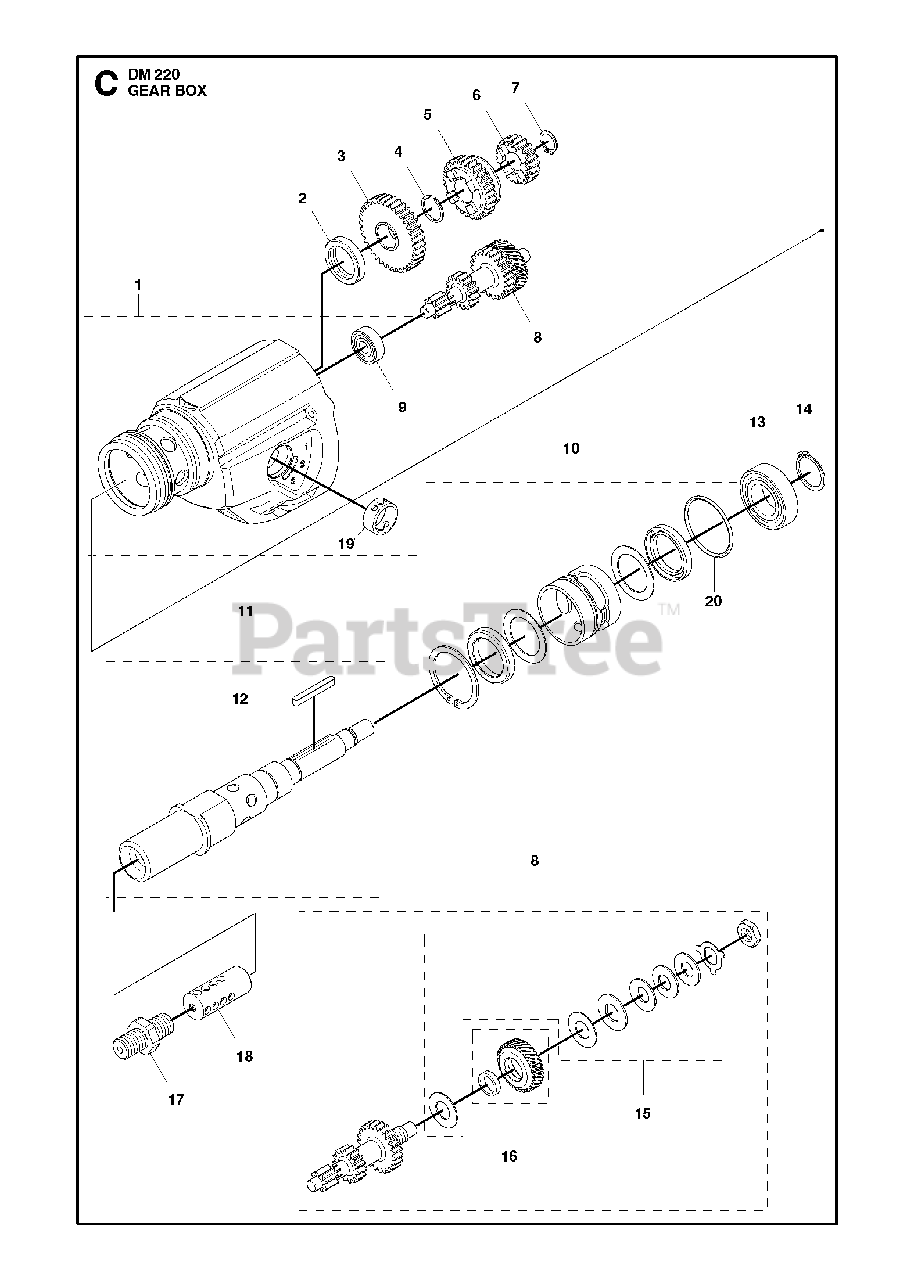

GEAR BOX Parts Diagram

  • Title

1

Husqvarna Construction 590 80 60-01

GEAR HOUSING ASSY

$165.67

$

Usually ships in 3-10 days

0

1

Husqvarna Construction 576 26 97-01

GEAR HOUSING ASSYValid before S/N, 20153300021

$133.00

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 575 55 79-01

RADIAL SEAL

$27.99

$

In Stock, only 2 left!

0

3

Husqvarna 544 12 48-01

GEAR WHEEL

$110.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 735 31 20-40

RETAINER RING

$3.49

$

In Stock, Qty 8

0

5

Husqvarna 544 12 46-01

GEAR WHEEL

$207.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544 12 44-01

GEAR WHEEL

$41.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 735 31 16-00

CIRCLIP

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 587 36 69-01

COUPLING

$

$

Currently unavailable

9

Husqvarna Construction 738 22 99-27

BALL BEARING

$25.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 577 24 42-03

COLLECTOR

$159.99

$

In Stock, only 1 left!

0

10

Husqvarna Construction 577 24 42-01

COLLECTORValid before S/N 20153300021

$86.34

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 577 24 38-03

SHAFT1/2"

$

$

Currently unavailable

11

Husqvarna Construction 577 24 38-02

SHAFT5/8 USA

$285.37

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 544 38 16-02

KEY

$15.17

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 544 38 16-01

KEYValid before S/N 20153300021

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 738 21 05-14

BALL BEARING

$37.99

$

Usually ships in 3-10 days

0

14

Husqvarna 735 31 26-00

CIRCLIP

$3.49

$

In Stock, Qty 13

0

15

Husqvarna Construction 587 36 25-03

CLUTCH ASSY

$

$

Currently unavailable

16

Husqvarna Construction 504 57 11-03

GEAR WHEEL ASSY

$255.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 504 09 46-01

ADAPTERUS Only

$56.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 581 09 41-01

STRAINER1/2"

$38.99

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 581 09 41-02

STRAINER5/8" USA

$67.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544 13 00-01

INSERT

$17.99

$

Usually ships in 3-10 days

0

20

Husqvarna Construction 587 69 89-01

O-RINGOnly included in 577 24 42-02

$124.99

$

In Stock, only 1 left!

0
