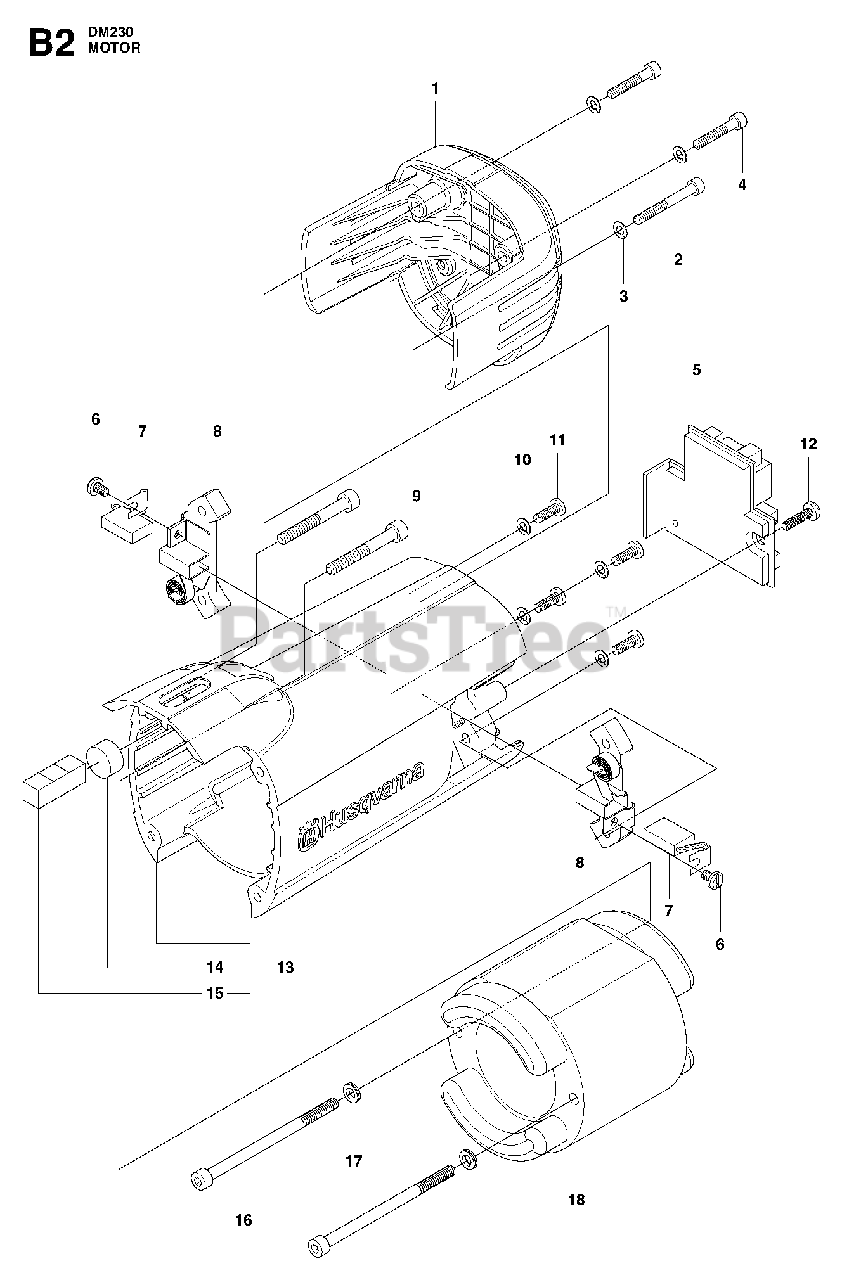

DM 230 - Husqvarna Drilling Machine (2009-02) MOTOR Parts Diagram

Drilling Machine

MOTOR Parts Diagram

  • Title

1

Husqvarna Construction 525 40 23-01

REAR COVER

$26.90

$

Usually ships in 3-10 days

0

2

Husqvarna 503 20 07-82

SCREW IHSCFM

$3.99

$

In Stock, only 3 left!

0

3

Husqvarna 735 11 46-50

SPRING WASHER

$1.99

$

In Stock, only 1 left!

0

4

Husqvarna 503 20 07-78

SCREW IHSCFM

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544 12 34-02

PRINTED CIRCUIT ASSY110 V

$337.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544 12 34-01

PRINTED CIRCUIT ASSY230 V

$245.99

$

Usually ships in 3-10 days

0

6

Husqvarna 723 22 85-81

SCREW SLPANM

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 506 22 58-03

CARBON BRUSH

$28.77

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 577 50 73-01

BRUSH HOLDER

$48.39

$

Usually ships in 3-10 days

0

9

Husqvarna 725 53 39-55

SCREW IHSCM
(Superseded to 503200240)

$3.99

$

In Stock, only 2 left!

0

10

Husqvarna 735 11 36-50

SPRING WASHER

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna Construction 724 12 91-01

SCREW CRPANM

$3.49

$

In Stock, Qty 8

0

12

Husqvarna Construction 525 47 63-01

SCREW ITXPANT

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 505 57 63-01

MOTOR HOUSINGIncl. 14 - 15

$224.70

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 544 23 13-01

LEVEL

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 544 23 12-01

LEVEL

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 503 20 21-82

SCREW IHSCM

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna 503 23 04-02

WASHER

$8.99

$

In Stock, Qty 6

0

18

Husqvarna Construction 579 06 28-01

STATOR ASSY110 V

$

$

Not available

18

Husqvarna Construction 579 06 28-02

STATOR ASSY230 V

$345.75

$

Usually ships in 3-10 days

0
