DM 230 - Husqvarna Drilling Machine (2009-02) REAR HANDLE Parts Diagram

Drilling Machine

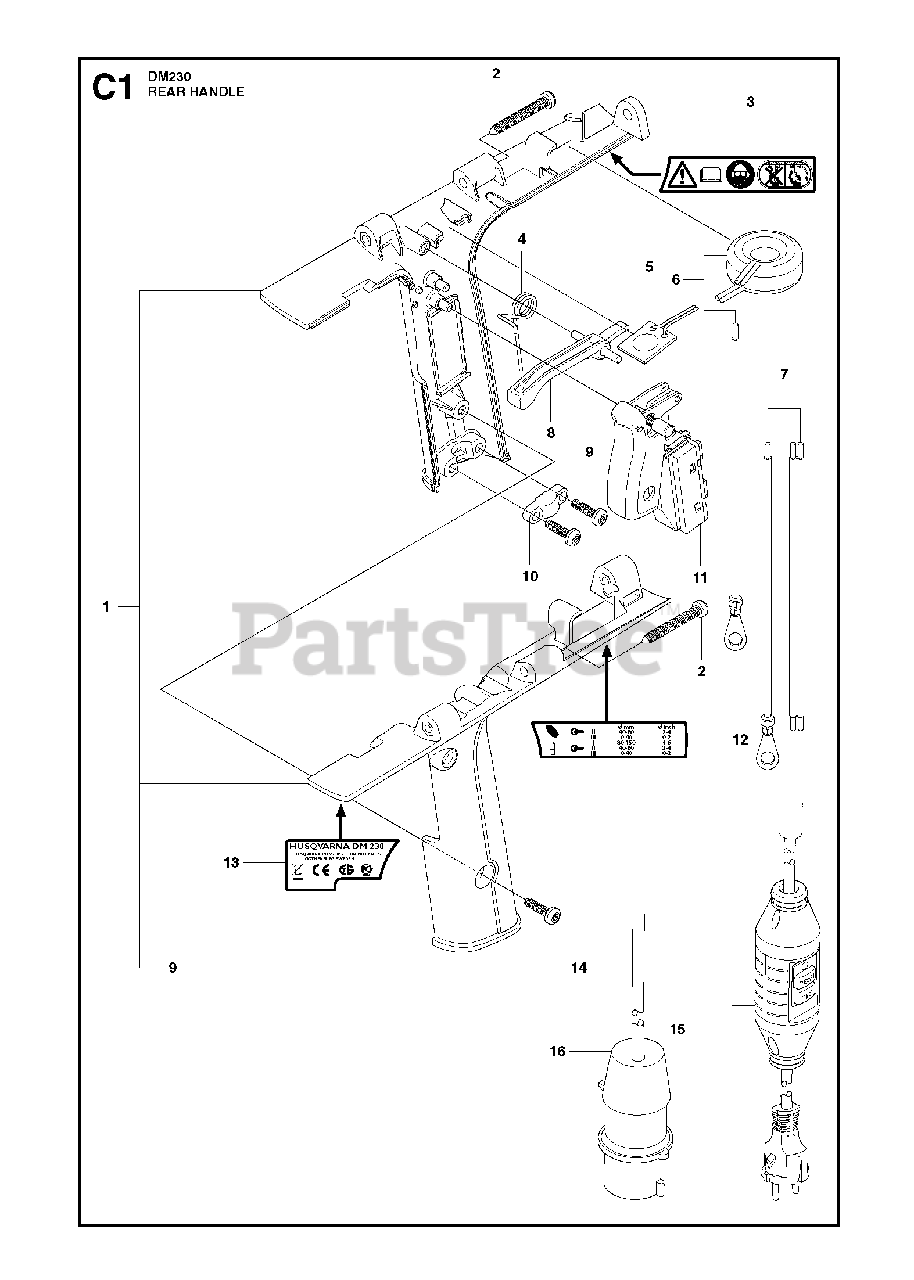

REAR HANDLE Parts Diagram

  • Title

1

Husqvarna Construction 505 44 11-01

HANDLE ASSYIncl. 9

$116.08

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 525 47 63-02

SCREW ITXPANT

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 502 63 53-01

LABEL

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544 12 56-01

SPRING

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544 13 14-01

BUTTON

$15.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 504 57 13-02

JOINTING CABLE230V

$

$

Not available

7

Husqvarna Construction 504 57 13-01

CABLE110V

$117.99

$

Usually ships in 3-10 days

0

8

Husqvarna 544 13 12-01

LEVER

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 525 47 63-01

SCREW ITXPANT

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 544 12 32-01

CABLE CLAMP

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 544 12 95-01

TRIGGER

$98.99

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 502 63 50-01

LABEL

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 502 63 49-01

LABEL

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 505 52 02-17

CABLE110V
(Superseded to 510222806)

$91.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 505 44 33-01

CABLE230V, Incl. PRCD 10 mA, EU

$377.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 510 18 13-01

CABLE120V, Incl. PRCD 6 mA, USA

$485.99

$

Usually ships in 3-10 days

0

15

Husqvarna Construction 510 02 89-01

CABLE230V, Incl. PRCD 10 mA, AUS

$

$

Not available

16

Husqvarna Construction 505 44 32-01

PLUGUK

$127.17

$

Usually ships in 3-10 days

0
