DM 230 - Husqvarna Drilling Machine (2012-06) GEAR BOX Parts Diagram

Drilling Machine

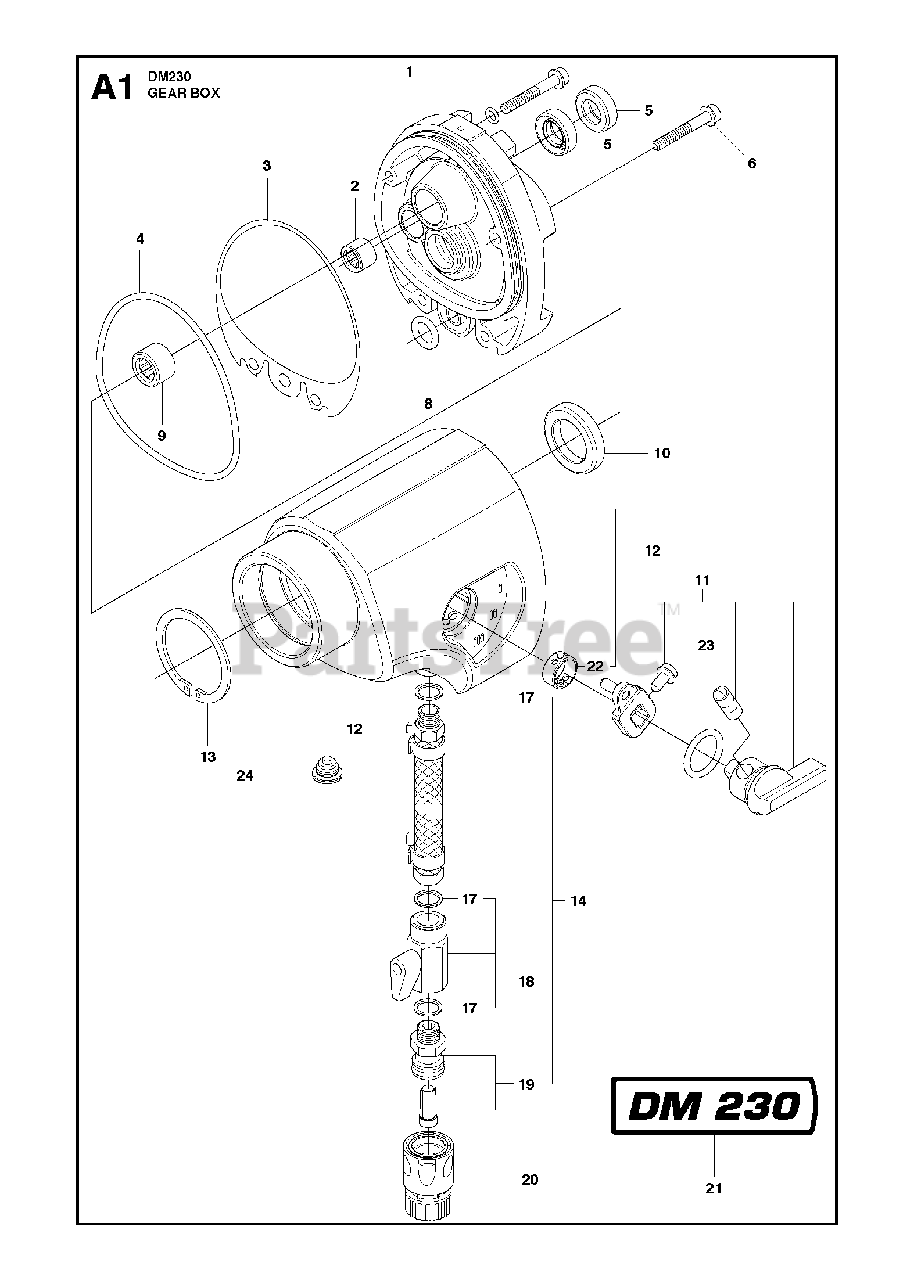

GEAR BOX Parts Diagram

  • Title

1

Husqvarna 544 12 50-01

COVER
(Superseded to 588613001)

$662.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 503 25 42-01

NEEDLE BEARING

$32.99

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 510 18 04-01

GASKET

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna Construction 576 76 82-01

O-RING

$

$

Not available

5

Husqvarna Construction 525 45 44-01

RADIAL SEAL

$14.30

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 503 20 74-40

SCREW IHSCFM

$14.99

$

Usually ships in 3-10 days

0

7

Husqvarna 740 42 03-00

O-RING

$3.49

$

In Stock, only 4 left!

0

8

Husqvarna Construction 503 26 30-31

O-RING

$2.68

$

Usually ships in 3-10 days

0

9

Husqvarna 503 25 53-01

NEEDLE BEARING

$30.99

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 575 55 79-01

RADIAL SEAL

$27.99

$

In Stock, only 2 left!

0

11

Husqvarna Construction 525 40 14-01

GEARSHIFT LEVER

$101.74

$

Usually ships in 3-10 days

0

12

Husqvarna Construction 525 85 06-01

INSERT

$

$

Currently unavailable

13

Husqvarna 735 31 40-10

CIRCLIP

$8.49

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 584 25 19-02

HOSE ASSY

$

$

Not available

17

Husqvarna 531 07 42-60

WASHER

$6.99

$

In Stock, only 2 left!

0

18

Husqvarna 510 19 59-01

VALVE KIT

$36.99

$

In Stock, only 4 left!

0

19

Husqvarna 510 11 20-01

NIPPLE

$

$

Not available

20

Husqvarna 503 26 60-03

COUPLERUSA/CANADA

$10.99

$

In Stock, Qty 20+

0

20

Husqvarna 503 26 60-04

COUPLER

$14.99

$

In Stock, only 4 left!

0

21

Husqvarna Construction 502 63 54-01

LABEL

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 544 13 00-01

INSERT

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 740 44 04-00

O-RING

$6.99

$

Usually ships in 3-10 days

0
