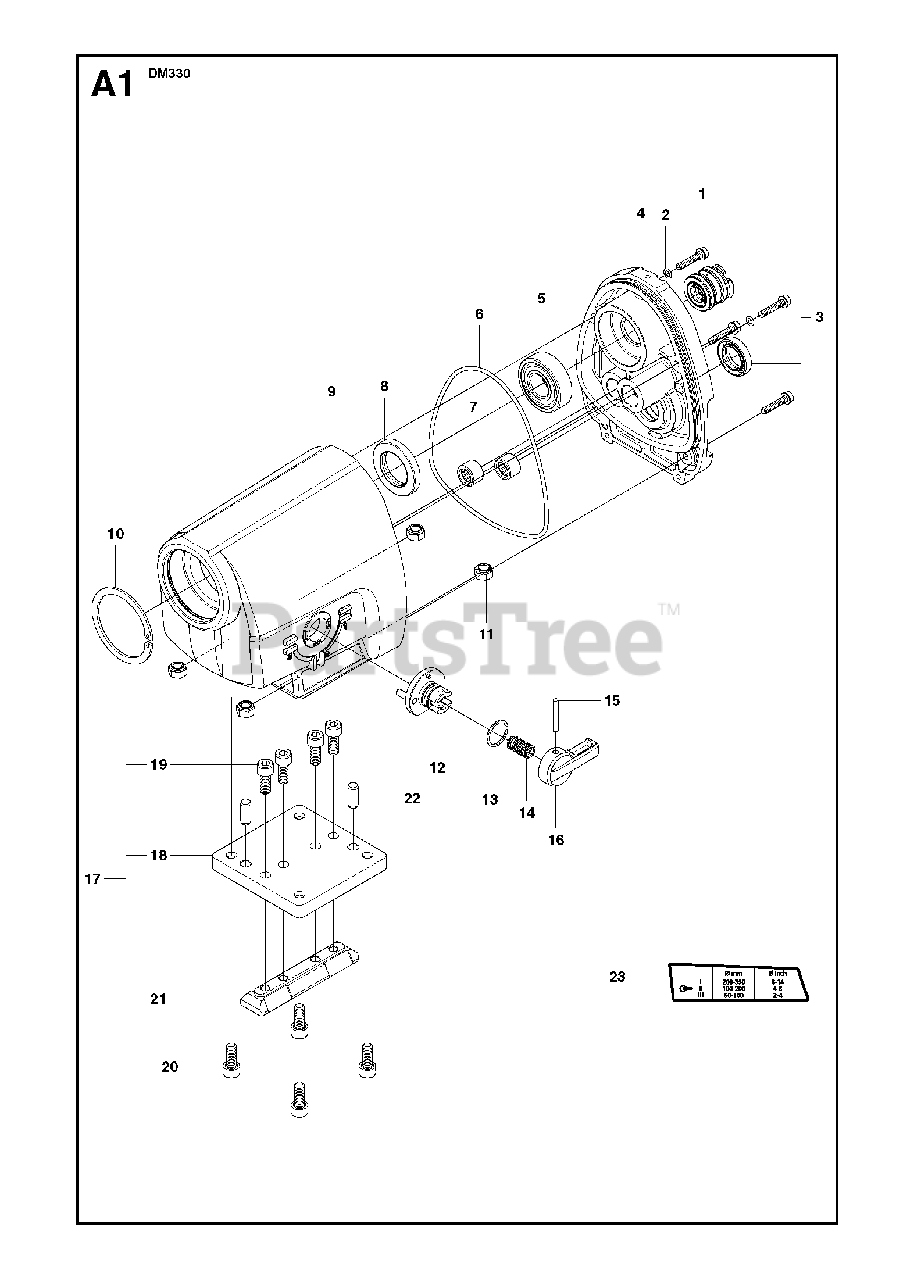

DM 330 - Husqvarna Drilling Machine (2009-04) GEAR BOX Parts Diagram

Drilling Machine

GEAR BOX Parts Diagram

  • Title

1

Husqvarna 503 20 07-78

SCREW IHSCFM

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 740 42 03-00

O-RING

$3.49

$

In Stock, only 2 left!

0

3

Husqvarna Construction 525 82 58-01

SEAL

$

$

Not available

4

Husqvarna Construction 544 40 23-02

COVER

$117.99

$

In Stock, only 1 left!

0

5

Husqvarna 738 22 04-19

BALL BEARING

$20.99

$

In Stock, only 2 left!

0

6

Husqvarna Construction 502 49 65-02

O-RING

$

$

Not available

7

Husqvarna 503 25 53-01

NEEDLE BEARING

$30.99

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 502 49 63-02

SEALING RING

$24.99

$

Usually ships in 3-10 days

0

9

Husqvarna Construction 544 40 22-01

GEAR HOUSING

$213.50

$

Usually ships in 3-10 days

0

10

Husqvarna Construction 502 49 70-01

CIRCLIP

$9.99

$

Usually ships in 3-10 days

0

11

Husqvarna 732 25 18-01

HEXAGON LOCKING NUT
(Superseded to 732211801)

$3.49

$

In Stock, Qty 6

0

12

Husqvarna Construction 502 47 97-01

SHAFT

$96.99

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 735 31 22-41

RETAINER RING

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna Construction 502 49 61-01

COMPRESSION SPRING

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 720 12 76-06

PARALLEL PIN

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 544 44 81-01

GEARSHIFT LEVER

$24.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 544 80 64-01

MOTOR BRACKETIncl. 18, 19 and 21

$382.50

$

Usually ships in 3-10 days

0

18

Husqvarna Construction 544 80 67-01

PLATE

$346.99

$

Usually ships in 3-10 days

0

19

Husqvarna Construction 725 54 51-01

SCREW IHSCM

$3.49

$

In Stock, only 4 left!

0

20

Husqvarna Construction 725 54 51-01

SCREW IHSCM

$3.49

$

In Stock, only 4 left!

0

21

Husqvarna Construction 544 80 66-01

WEDGE

$296.99

$

Usually ships in 3-10 days

0

22

Husqvarna 720 14 01-06

PARALLEL PIN

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 505 42 98-01

LABELLow speed version

$8.99

$

Usually ships in 3-10 days

0

23

Husqvarna Construction 505 40 60-01

LABELHigh speed version

$5.83

$

Usually ships in 3-10 days

0
