DM 340 - Husqvarna Drilling Machine (2012) MOTOR Parts Diagram

Drilling Machine

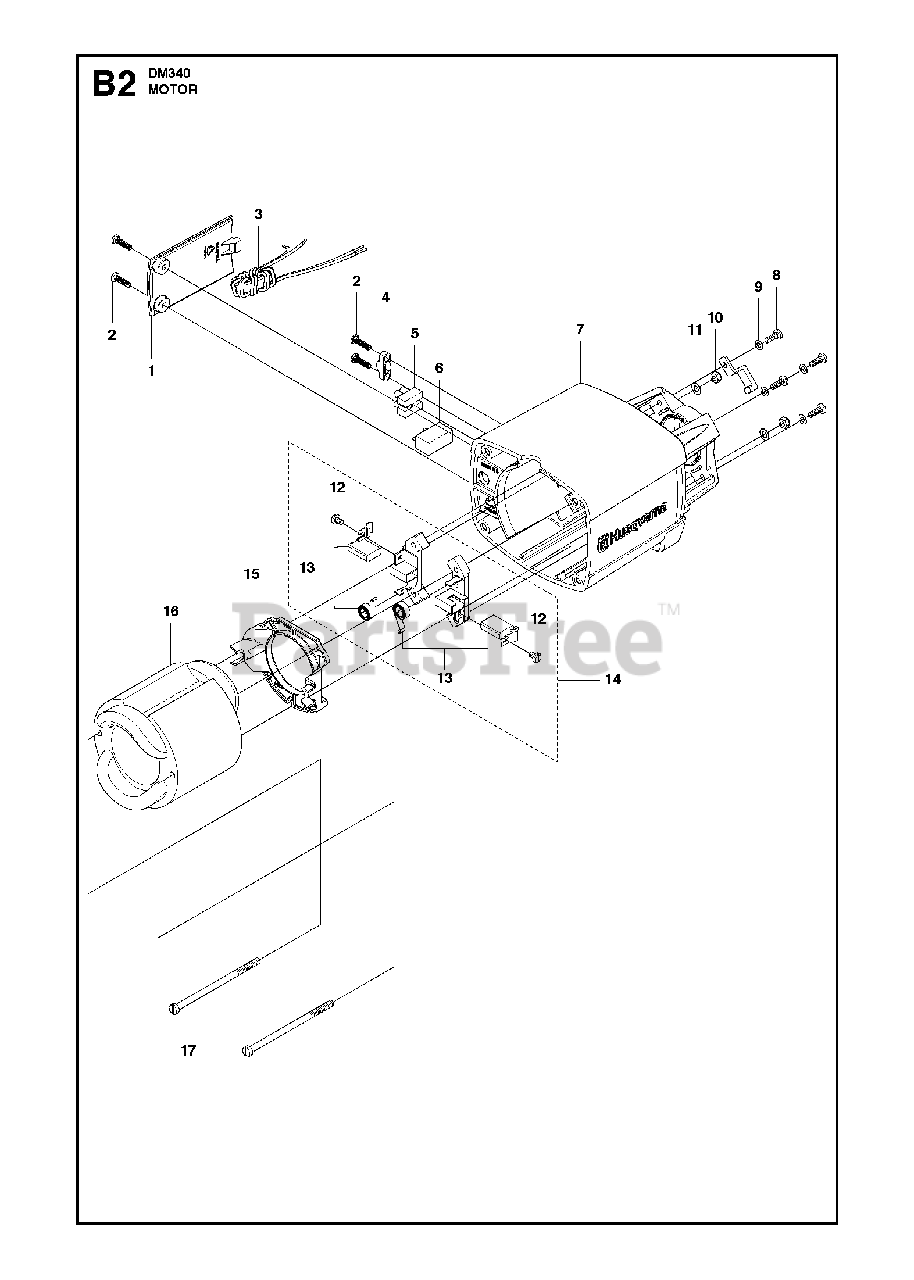

MOTOR Parts Diagram

  • Title

1

Husqvarna Construction 544 40 28-02

COVER

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 729 57 78-01

SCREW CCRPANT120V, US

$5.49

$

Usually ships in 3-10 days

0

2

Husqvarna Construction 525 47 63-01

SCREW ITXPANT

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna Construction 504 54 50-01

FILTER230V Only

$65.99

$

Usually ships in 3-10 days

0

4

Husqvarna 544 12 32-01

CABLE CLAMP

$6.99

$

Usually ships in 3-10 days

0

4

Husqvarna 531 03 18-87

CLIP120V, US

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 504 54 62-02

TERMINAL BLOCK230V, valid until 20154700001

$7.88

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 504 54 62-01

TERMINAL BLOCK110V, valid until 20154700001

$6.99

$

Usually ships in 3-10 days

0

5

Husqvarna Construction 588 46 74-01

TERMINAL BLOCKValid from 20154700001

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna Construction 504 54 63-01

CAPACITOR

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna Construction 544 44 49-04

MOTOR HOUSING

$228.90

$

Usually ships in 3-10 days

0

8

Husqvarna Construction 724 12 91-01

SCREW CRPANM

$3.49

$

In Stock, Qty 9

0

9

Husqvarna 735 11 36-50

SPRING WASHER

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 732 21 14-01

LOCK NUT

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 735 11 46-50

SPRING WASHER

$2.49

$

In Stock, only 1 left!

0

12

Husqvarna Construction 724 12 87-01

SCREW CRPANM

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna Construction 581 08 68-01

BRUSH KITKit includes 2 pcs

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 581 05 85-01

BRUSH HOLDER
(Superseded to 581058502)

$

$

Not available

15

Husqvarna Construction 544 80 61-01

AIR CONDUCTOR

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 588 88 80-02

STATOR ASSY230V

$726.99

$

Usually ships in 3-10 days

0

16

Husqvarna Construction 588 88 80-01

STATOR ASSY120V

$675.99

$

Usually ships in 3-10 days

0

17

Husqvarna Construction 522 51 88-01

SCREW

$9.49

$

Usually ships in 3-10 days

0
